Ce/UL/Gsg Approved Twin Flat BVVB Cable

Prod Model:	117
Color:	Black,White,Blue,Yellow,Red etc
Sizes:	Customized
Voltage:	Low Voltage
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Brand:	Gemt

Product Description

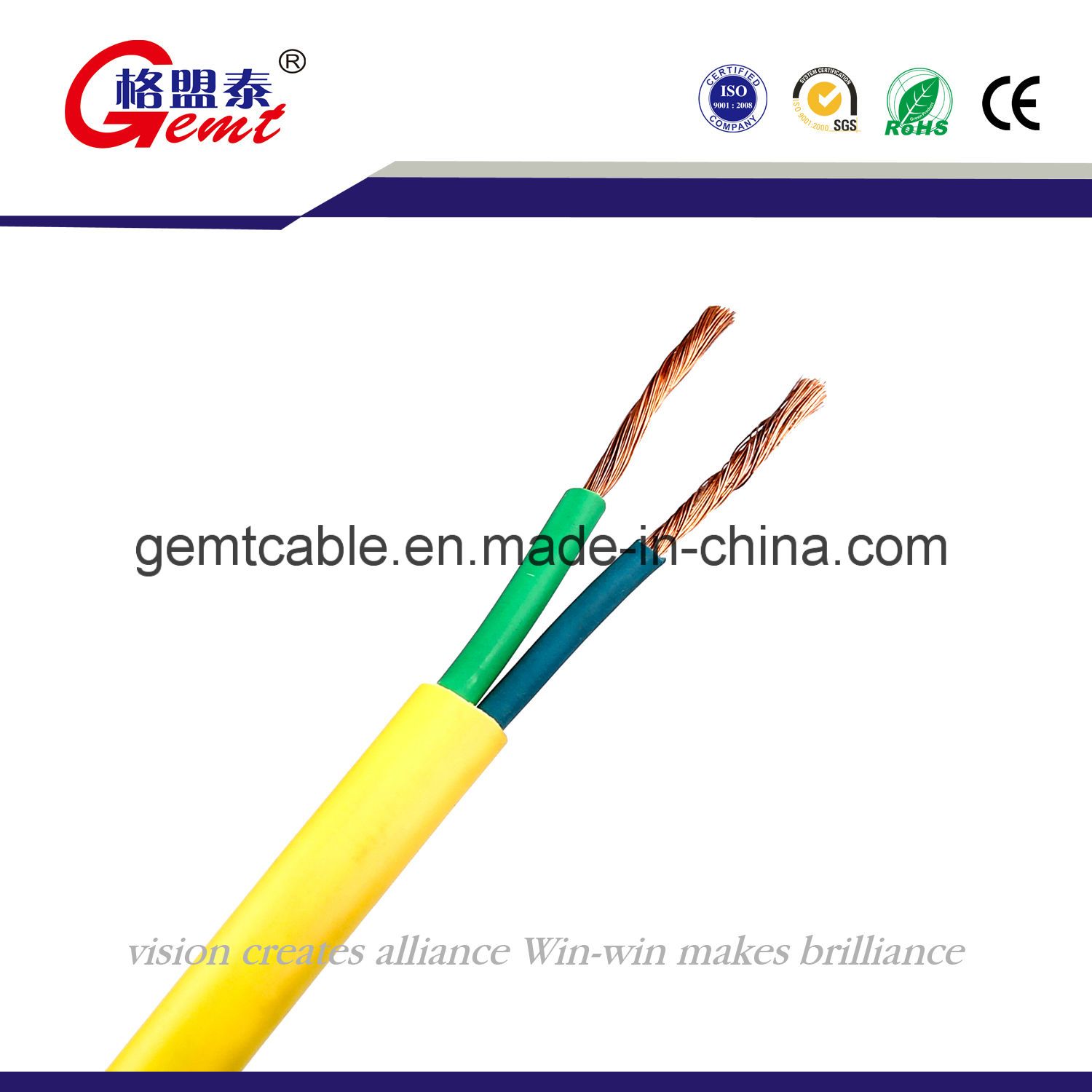

CE/UL/GSG Approved Twin Flat BVVB Cable

1.Product Description:
Standard: BS6500 IEC 227-5-1979
Application: General purpose indoor and outdoor, electrical tools, washing machines and vacuum cleaners etc.
Structure: Flexible Annealed copper conductor, PVC insulated and PVC sheathed.
Voltage: 300/500V
Core Color: Blue, brown, yellow, red and black.


2. Cable details:

IEC 227 BS 6500
MM² Number of cores & mormal area	MM Structure	MM Approx dia.	MM² Number if cores & mormal area	MM Structure	MM Approx dia.
2x0.50	28/0.15	5.20	4x1.00	32/0.20	8.00
2x0.75	24/0.20	6.40	4x1.50	30/0.25	9.20
2x1.00	32/0.20	6.60	4x2.50	49/0.25	10.90
2x1.50	30/0.25	7.60	4x4.00	56/0.30	12.80
2x2.50	49/0.25	9.40	4x6.00	84/0.30	15.40
3x0.50	28/0.15	5.50	4x10.00	126/0.32	17.60
3x0.75	24/0.20	6.80	4x16.00	126/0.40	21.10
3x1.00	32/0.20	7.20	5x1.50	48/0.20	10.70
3x1.50	30/0.25	8.50	5x2.50	49/0.25	12.80
3x2.50	49/0.25	10.00	5x4.00	56/0.30	14.50
3x4.00	56/0.30	11.70	5x6.00	84/0.30	16.40
3x6.00	84/0.30	13.00	5x10.00	126/0.32	20.10
3x10.00	126/0.32	16.10	5x16.00	126/0.40	24.40
3x16.00	126/0.40	19.40

3. The advantages of our company:
1) Our company is a professional supplier of various kinds of cables for over 10 years.
2)  The quality of our products are guaranteed. They are all with CCC, CE, CB and RoHS certificates.
3)  The price is averagely 10%~20% lower than the other competitors. Because our factory is located in a small town. The labor and raw materials cost are relatively low there.
4)  Huge Inventory Allows Us To Ship Your Order Immediately
5)  Our employees are all capable and professinal. They can offer you the Prompt Courteous Service.
6) We ship worldwide.


4. Packing:
1)Packing length:305M/Roll
2)Inner packing: Wooden reel, Plastic reel, Paper reel available
3)Outer packing: Carton box, Pull out box, Pallet available
4)Outer box brands, jacket colors, conductor material as customers requirement.


5. FAQ:
Q: Can I have a sample?

A: Yes, we welcome sample order to test and check quality.

Mixed samples are acceptable.
Q: How long is the lead time?

A: Sample needs 1-2 days; mass production needs 15-30 days.
Q: Do you have the MOQ limit?

A: Our MOQ is 100-10000meters, depending on the products;

Sea Port: FOB Shenzhen.

Q: Do you provide OEM or ODM services?

A: Yes, we do.

Q: Do you offer guarantee for the products?

A: Yes, we offer five years guarantee for the product
