CE UL/Welding Transformer Manufactures in China Transactions Single Phase Instrument Transformer 600V Low Voltage

Name: CE UL/Welding Transformer Manufactures in China Transactions Single Phase Instrument Transformer 600V Low Voltage
Brand: all-electronics-online.com
SKU: 704470832
Availability: InStock
Rating: 5 (98 reviews)

Price:	US $ 6.23/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWTA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Exterior Material:	PBT Resin UL Flame Retardant Rating 9
Interior Insulation:	Epoxy Encapsulated
Isolation Voltage:	2500 Vrms for 1 Minute
Dielectric Resistance:	1000 M Ohms @ 500 VDC
Surge Withstand:	5000V
Rated Load Resistance:	100k Ohms
Operating Temperature:	-25 to +55c, -40 to +85c Optional
Frequency:	50 to 400 Hz
Accuracy Class:	as Defined in IEC 60044-2 Part 2 Vol
Application:	Audio
Phase:	Single
Coil:	Amorphous Alloy Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Usage:	Electrical Energy Manage, Building Control System
Frequency Characteristics:	50~400 Hz
Shape Of Coil:	Single Stage Type
Brand:	Gw

Product Description

CE UL/welding transformer manufactures in China Transactions single phase instrument transformer 600v low voltage

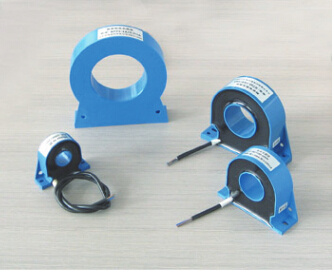

Our main product are miniature voltage transformer ,miniature current transformer ,instrument current transformer , clamp on ccurrent transformer ,split core current transformer ,three phase current transformer ,zero-flux current transformer

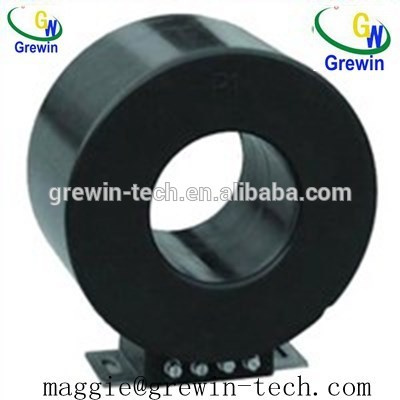

Single Phase Instrument Current Transformer(specifications)
Exterior Material	PBT Resin UL flame retardant rating 94-V0
Interior Insulation	Epoxy Encapsulated
Isolation Voltage	2500 Vrms for 1 minute
Dielectric Resistance	1000 M Ohms @ 500 Vdc
Surge Withstand	5000V(1.2/50μs standard shock wave)optional
Rated Load Resistance	100K Ohms
Operating Temperature	-25 to +55ºC,-40 to +85ºCoptional
Operating Voltage	600Vac
Frequency	50 to 400 Hz
Accuracy Class	defined in IEC 60044-1 Part 1 Voltage Transformers Class 0.1 0.2
Certification	RoHS Compliant CE Approved

Single Phase Instrument Current Transformer(features)

Low cost

More than 30 outline sizes

5.0,1.0Aac secondary ratios available

Single Phase Instrument Current Transformer(applications)

For applications that require exceptional accuracy with minimal phase angle error

Applications would include Current,Power,Energy monitoring devices Relay protection device

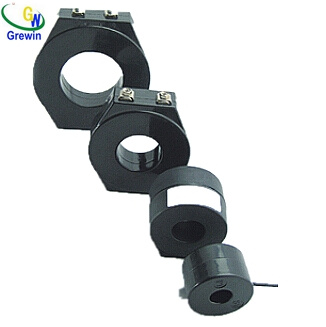

Typical Products

Series	Rated Input	Frequency (Hz)	Outline Dimensions (mm) ID-L-W-H
16	60,75,80,100,120,125,150,200,250	50~400	16.3- 50.5-31.5-50.5
25	50,60,75,80,100,120,125,150,200, 250,300	50~400	25.4-32.5-44.5-69.0
39	100,150,200,250,300,400,500,600, 750,800,1000,1200	50~400	39.6-92-28.0-101.5
52	100,150,200,250,300,400,500,600, 750,800,1000,1200,1500	50~400	52.3-108-27.9-108
63	100,150,200,250,300,400,500,600, 750,800,1000,1200,1500,1600	50~400	63.5-121-27.9-130.9
82	200,250,300,400,500,600,750,800, 1000,1200,1500,1600,2000,2500,3000, 4000	50~400	82.6-146-31.7-146
1A	200,250,300,400,500,600,750,800, 1000,1200,1500,1600,2000,2500,3000, 3500,4000	50~400	108-171.5-31.7-171.5

Series	Rated Input	Frequency (Hz)	Outline Dimensions (mm) ID-L-W-H
12	25,33,40,50,60,75,80,100, 120,125,150,200,250,300	50~400	12.7-50-38-55
35	15,20,25,30,40,50,60,45,80,100 ,120,125,150,200,250,300,400,500	50~400	35-98.5-30-80
45	100,150,200,250,300,400,500, 600,750	50~400	45-120-36-101.5
50	150,200,250,300,400,500,600,750, 800,1000,1200,1500,1600	50~400	50-100-38.5-109
55	100,150,200,250,300,400,500,600, 750, 800,1000,1200,1500,1600,2000	50~400	55-150-36-126
72	100,150,200,250,300,400,500,600, 750, 800,1000,1200,1500,1600,2000 2500,3000	50~400	72-175-44-150 (72-125-30-140)

Shipping:

1. Products are shipped via UPS / DHL / EMS / HK EMS /     FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3. 20 days around delivery upon receiving payment if the qty    is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon
import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually     takes 3~7days dependent on the destination country.

Payment:

1. We accept Western Union and T/T
2. 30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after
geting full payment.

Warranty:

1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days     of delivery.
3. All products must be returned on their original condition, in   order to qualify for a refund or exchange of goods

Our factory

Tianjin grewin technology co., ltd .  is a high-tech company which integrates production, design, R&D, and sale.We-CHIPSEN-specialize in developing
many kinds of electronic components. Include electronic transformers,
We are ISO 9001 and ISO 14001 certified and our products come with UL, SGS
marks.
Grewin current transformer has been specially designed to facilitate their installation in new or already existing net works.They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.

WHY CHOOSE US?

     Quality and honest first!
A.     Flexible service for diffierent transformers with high efficiency perfor      mance.
B.    Over 40 years experience of transformer designing and producing.
C.   100% test of every single product we produce from incoming material     checking.
D.    UL, CE, ISO9001:2008
E.    We offer custom-made transformers, OEM and ODM are welcome
F.    We deliver the quality you expect at consistently competitive prices
G.   Transformer quality lifetime:10 Years.
H.   Specialty Sales service:5 -10 Years

Contact info :

Tianjin Grewin Technology Co., Ltd
Contact:Maggie
M: 86-13702027805
T:86-22-84943756
F:86-22-85909471
Website: http://www.grewin-tech.com/

GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.

Our company have many advantages which can be your honesty and reliable supplier:

WHY CHOOSE US?

A. Business philosophy "Quality and Honesty First“

B. Over 40 years experience of transformer designing and producing.

C. Transformer 100% test before the shipment;

D. UL, CE, ISO9001: 2008

E. We offer custom-made transformers, OEM and ODM are welcome

F. We expect at consistently competitive prices

G. Transformer quality lifetime: 10 Years.

H. Professional experiences of the sales and engineers: 5 -10 Years

Grewin Mission: Growing together side by side, Mutual success hand in hand.

We sincerely invite you to join us to create a bright future.

Contact Information:

Tianjin Grewin Technology Co., Ltd.

TEL: +86 22 84943756

Web: www.grewin-tech.com
