Ceiling Fan Capacitor (CBB61)

Name: Ceiling Fan Capacitor (CBB61)
Brand: all-electronics-online.com
SKU: 699029985
Availability: InStock
Rating: 4.9 (120 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB61
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Polypropylene Capacitor
Package Type:	Through Hole
Application:	Automobile
Capacitance:	1-50uf
Usage:	Ceiling Fan Capacitor
Structure:	Film Capacitor
Electrolyte:	Resin

Product Description

Air conditioner capacitor,oil capacitor, motor capacitor,IGBT capacitor,CBB65 capacitor,motor run capacitor,aluminum case capacitor,anti-explosion capacitor ,inverter welding capacitor, fan capacitor, CBB61 capacitor.

The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors.The reliability is more affirmatively enhanced.

1. Capacitance: 1uF --50uF.
2. Rated voltage: 250VAC / 370VAC / 440VAC / 450VAC / 500VAC
3. Operating temperature: 40 /85/21
4. Operating frequency: 50/60Hz
5. Endurable voltage (T-T): 1.75Un/2.0Un
6. Tangent of loss angle: <=0.0040(1kHz)
7. Capacitance deviation: +-5%
8. Out leads: Wire or tabs
9. Specifications can be supplied according to the customers' special need.
10. Reasonable price and stable quality.

For more information,you can contact and view our website:
www.capacitorfilm.com

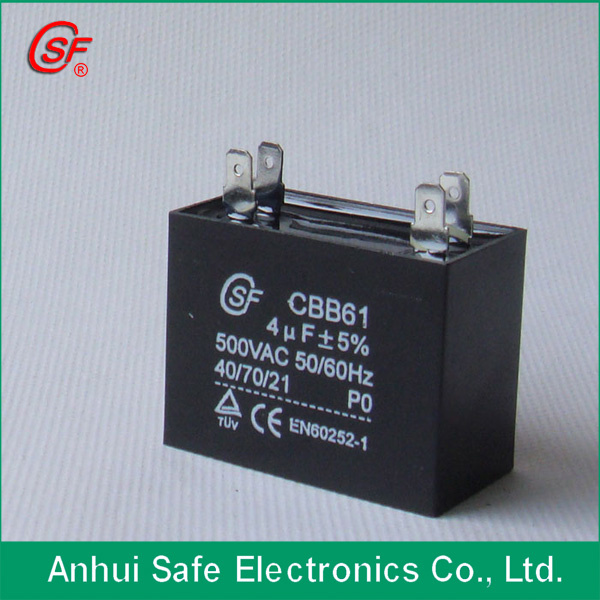

CBB61 metalized film capacitor
Specification
product name:	CBB61 fan motor capacitor
product type:	polypropylene film capacitor
Model Number:	CBB61
Capacitance:	1-60uf
capacitance tolerance	± 5%
Rated Voltage:	110V-630VAC
Operating Temperature:	-40~70° C
Climate type:	40/70/21
Application:	AC motor, air conditioner, washing machine, water pump and generator.
Safety Class:	P0, P1
Certificate:	CE, ROHS, CUL, TUV, DIN, CQC, SGS
the Leader type:	wire/2 pin/4pin
Material:	Plastic/metal case
Housing Color:	black, white aluminium, grey aluminium, blue
product Size:	kinds of different sizes or as customer' s request.

Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.

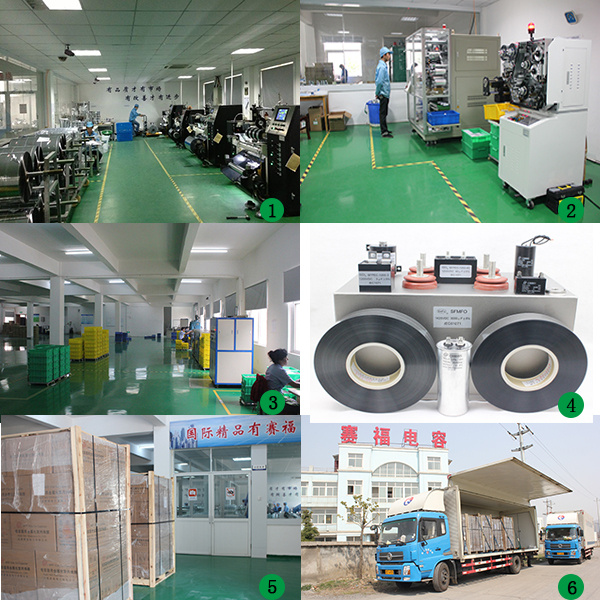

Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.

The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.

With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.

Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.

"good faith, serving the whole world" is our principle.
