Ceiling Flush Mount Microwave Sensor (KA-DP14)

Name: Ceiling Flush Mount Microwave Sensor (KA-DP14)
Brand: all-electronics-online.com
SKU: 718788695
Availability: InStock
Rating: 4.6 (98 reviews)

Price:	US $ 4.3-7.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KA-DP14
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	Two Years
Samples Delivery Time:	Within 2 Days
Bulk Order Delivery:	Within 25 Days
Output:	Switching Sensor
Usage:	Lighting
Type:	Microwave Sensor Switch
Wires:	NPN (',Three-Wires)
Standard:	Standard
Certification:	CE
Application:	Corridor, Warehouse, Garage, Toilets etc.
Principle:	Hf Microwave Sensor

Product Description

KA-DP14 Ceiling Flush Mount Microwave Sensor specification:
1. Power Sourcing: 220-240V/AC
2. Power Frequency: 50Hz
3. HF System: 5.8GHz CW radar, ISM band
4. Detection Range: 360°
5. Ambient Light: <3-2000LUX (adjustable)
6. Installing Height: 1.5~3.5m
7. Rated Load: 1200W (incandescent lamp)
300W (energy-saving lamp)
8. Time-Delay: Min.: 10sec± 3sec
Max.: 12min± 1min
9. Power Consumption: Approx 0.9W
10. Detection Distance: 1-8m (radius) adjustable
11. Detection Motion Speed: 0.6~1.5m/s
12. Transmission Power: <10mW

KA-DP14 Ceiling Flush Mount Microwave Sensor Function:
1. Can identify day and night: It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work in the ambient light less than 3LUX when it is adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern.
2. SENS adjustable: It can be adjusted according to using location; Low sensitivity with 1m for detection distance; High sensitivity with 8m, it fits for large room.
3. Time-Delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the basic of the first time-delay rest.
4. TimeDelay is adjustable. It can be set according to the consumer's desire. The minimum time is 10sec± 3sec. The maximum is 12min± 1min.

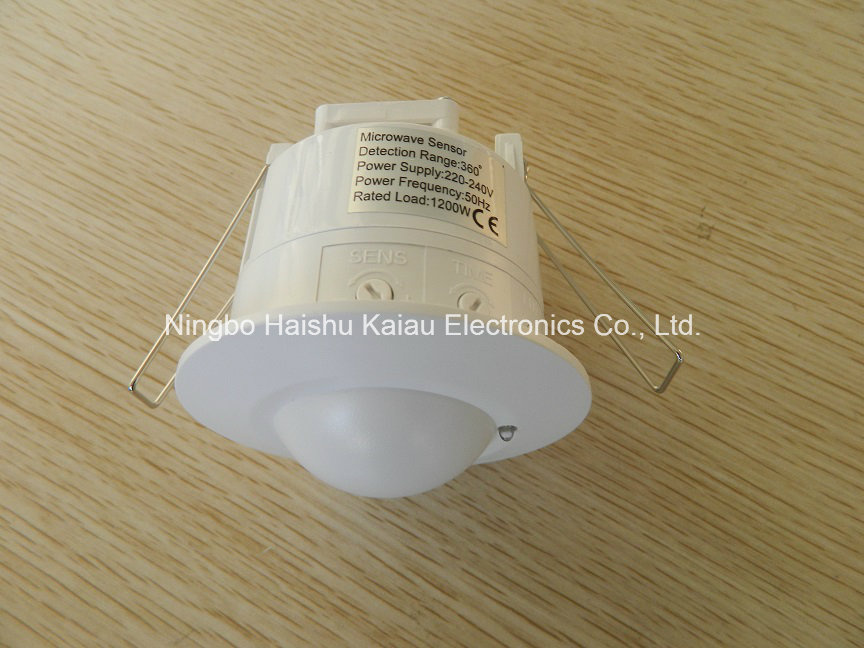

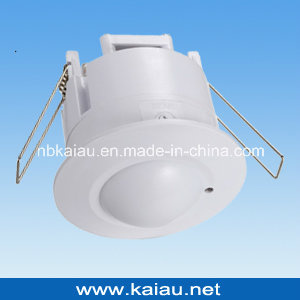

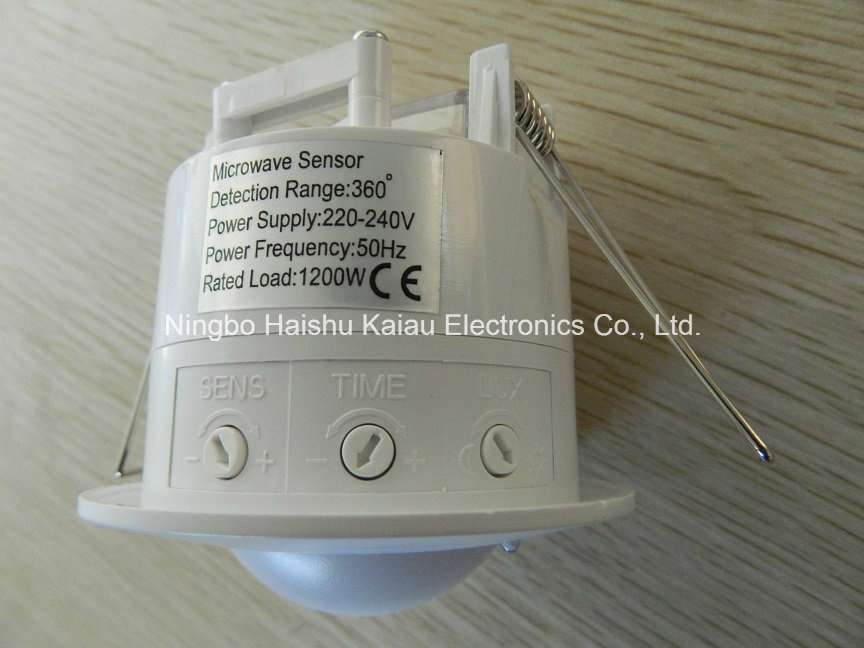

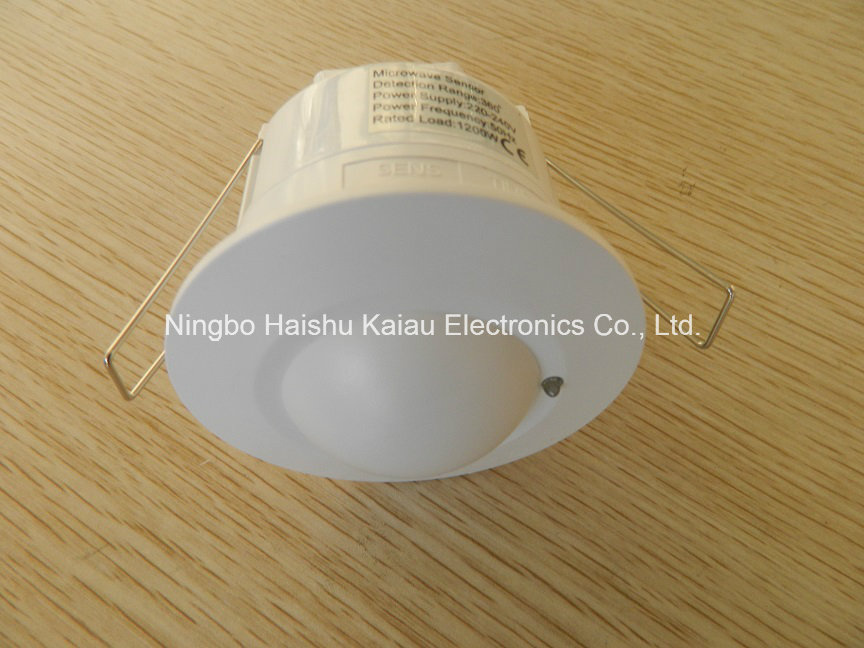

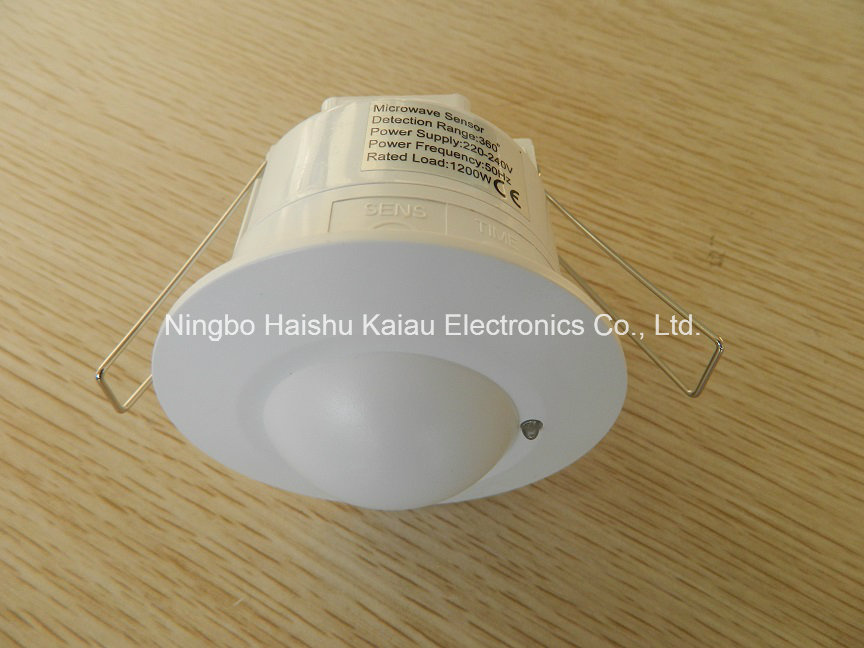

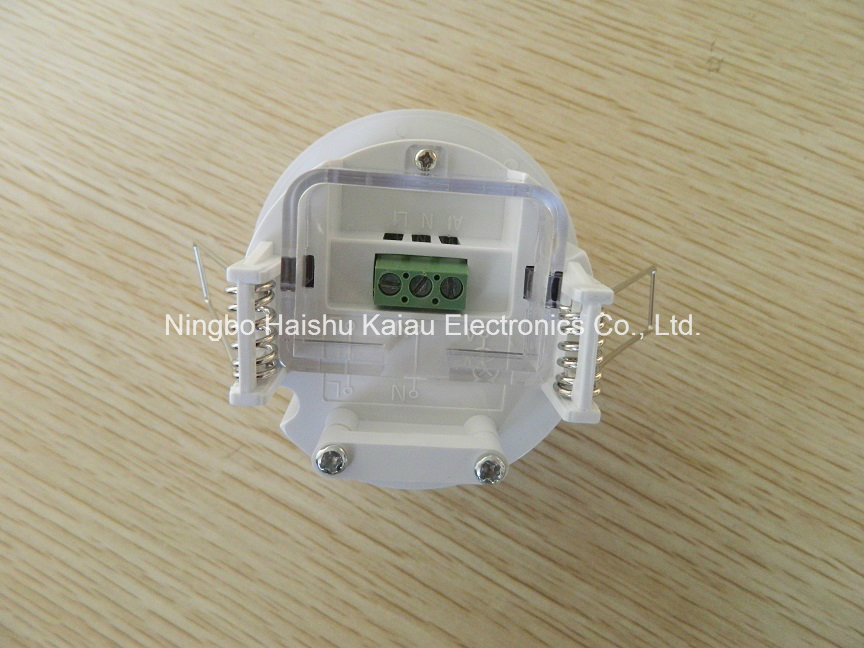

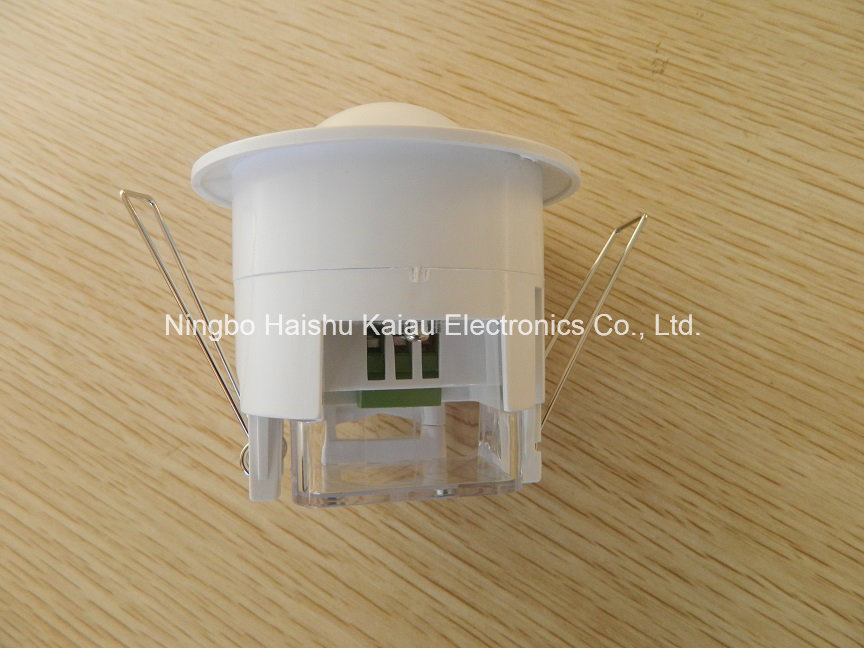

KA-DP14 Actual photos:
