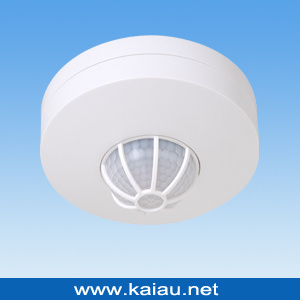

Ceiling Occupancy Sensor (KA-S03B)

Name: Ceiling Occupancy Sensor (KA-S03B)
Brand: all-electronics-online.com
SKU: 687866435
Availability: InStock
Rating: 4.4 (32 reviews)

Price:	US $ 2-4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KA-S03B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	2 Years
Sample Lead Time:	Within 2 Days
Bulk Order Lead Time:	Within 18 Days
Certificate:	CE&RoHS
Package:	Customized Color Box and White Box
Type:	Infrared Sensor Switch
Principle:	Infrared
Wires:	NPN (',Three-Wires)
Standard:	Standard
Certification:	CE
Application:	Corridor, Warehouse,Garage,Toilets etc.
Size:	Round Shape

Product Description

KA-S03B Ceiling Occupancy Sensor Specification:

1) Power source:220~240V/AC;100~130V/AC

2) Power frequency:50HZ/60HZ

3) Detection range:3~10mmax(<22°C)

4) Rated load:1200W(220~240V/AC);600W(110~130V/AC)

5) Time setting:min:5sec~10sec Max: 6min~12±1min

6) Detection angle:360° (ceiling installation)

7) Ambient light:<20lux~>2000lux

8) Working temperature: -10~+40°C

9) Working humidity:<95%RH

10) Installation height:2.5~3.5m

11) Power consumption: working 0.45W (static 0.1W)

12) Sense motion speed:0.6~1.5m/s

How to set KA-S03B:

1) SENS: Adjust detection range. Turn clockwise to increase it and turn anti-clockwise to decrease it. It is 1m when turn to mini, and it is 8m when turn to max.

2) TIME: Adjust time setting of load work. Turn clockwise to increase it and turn anti-clockwise to decrease it. The time setting is about 8±3min when turn to max. It is in impulse mode when turn to mini. In impulse mode if you want turn to short time mode turn anti-clockwise a little when LED blink three times is ok.

3) LUX: Adjust working light. Turn clockwise to increase it and turn anti-clockwise to decrease it. When turn to mini, it will only work below the light-control about 10LUX, when turn to max, it can work any light-control.

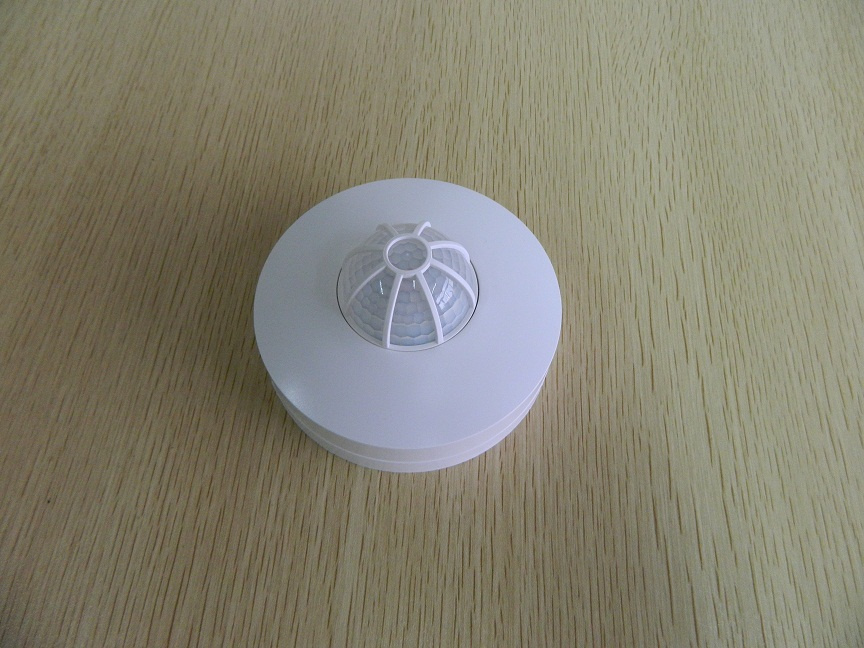

KA-S03B Actual Photo:

Ningbo Haishu Kaiau Electronics Co., Ltd. is a specialized manufacturer and knowledgeable exporter of sensor switchs, lighting fixtures and accessories, plugs and sockets.

Our products range:

1. The sensor switch series

PIR ceiling sensor switch, fitting lamp sensor, wall hidden sensor switch, wall surface sensor switch, microwave sensor, sensor lamp holder.

2. The lighting fixtures and accessories

LED sensor ceiling light, LED sensor Night light, Motion sensor flood light, Sensor wall lamp, LED solar garden light, LED ceiling light, LED flood light, LED bulb, LED spotlight, Microwave sensor light, Sensor lamp holder, Lamp holder

3. The plugs and sockets

Plugs:

The Transformation Plug, U. S. A. Power cord, Germany power cord, U. K. Power cord, Italy power cord, Switzerland power cord, Argentina power cord, Brazil power cord, Australia power cord, Japan power cord, Israel power cord, South Africa power cord, Spiral cord

Sockets:

Moveable socket, USB extension socket, European type socket, U. K. Type socket, French type socket, Holland type socket, Middle East type socket

Kaiau is making all efforts to provide our customers with timely delivery and high quality products at competitive price. Almost all of our products are well approved by the professional laboratory tests.

Kaiau welcomes OEM and ODM orders. We will do the OEM orders with our clients' Logo and their own brand. Now our products have been sold to more than 49 countries such as USA, UK, Italy, Spain, Japan, Iran, Singapore etc.

Kaiau has a professional sales team. All of our salesman have not less than 5 years experience in the trade business, they can offer you accurate product information and do the best after-sales service. The good experience of doing export business keeps good relationship with the regular customers and helps us to win the favor of new customers.

Kaiau recommends WIN-WIN partner relationship. We are trying our best to grow up with our customers together.

Thanks for visiting Kaiau on-line. Kaiau will be your first choice to purchase electrical products in China.
