| Prod Model: |
KA-S03C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
Two Years |
| Delivery Time: |
Within 25 Days |
| Output: |
Switching Sensor |
| Usage: |
Light Sensor |
| Theory: |
Infrared Sensor Switch |
| Package: |
Customized Color Box or White Box |
| Function Type: |
PIR Sensor |
| Detection Type: |
Infared Motion Sensor |
| Material: |
PC |
| Certification: |
CE, RoHS |
| Customized: |
OEM and ODM Orders Accepted |
Product Description
KA-S03C ceiling PIR Detector specifications:1) Power source:220V/AC-240V/AC,100V/AC-130V/AC
2) Power frequency:50/60Hz
3) Rated load:600W(100-130V/AC),1200W(220-240V/AC)
4) Detection range:360 degree
5) Light control:<3LUX-daylight(adjustable)
6) Time delay:10sec±2sec to 7min±1min(adjustable)
7) Detection distance:2-12m(adjustable)
8) Installation height:2-4m
9) Detection speed:0.6-1.5m/s
10) Three Detectors Inside
Package:1) White box or customized color box
2) Carton size: 50*38.5*36cm
3) Gross weight:15.6KGS
4) Quantity/carton:60pcs
Product introduction:KA-S03C is a new saving-energy switch, it adopts good sensitivity detector, integrated circuit and SMT. It gathers automatism, convenient safe, saving-energy and practical functions. Three detectors inside compose a wide range detection field, it utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely, possessing the functions of power show and detecting show.
KA-S03C function:You can manually adjust the Time-delay, Sensitivity and light control (For detail: see 1.knob setting); it is very
easy to use. Install Sensor at 2.5~3.5m position on the wall (For detail: see 3. installation instruction) and
connect the wire according to the 2. connection figure. Switch on power, after about 1 minute the unit enter
stable working state. Here please turn TIME knob to the position close to minimum, and turn LUX to sun for
testing. If it works normally, turn the TIME knob to the minimum" IMPULSE" position( ). When it senses again,
the controlled lamp will be turned on and off regularly. If the above tests go through, then select the time, light
control and sensitivity to your need. So its installation is ok.

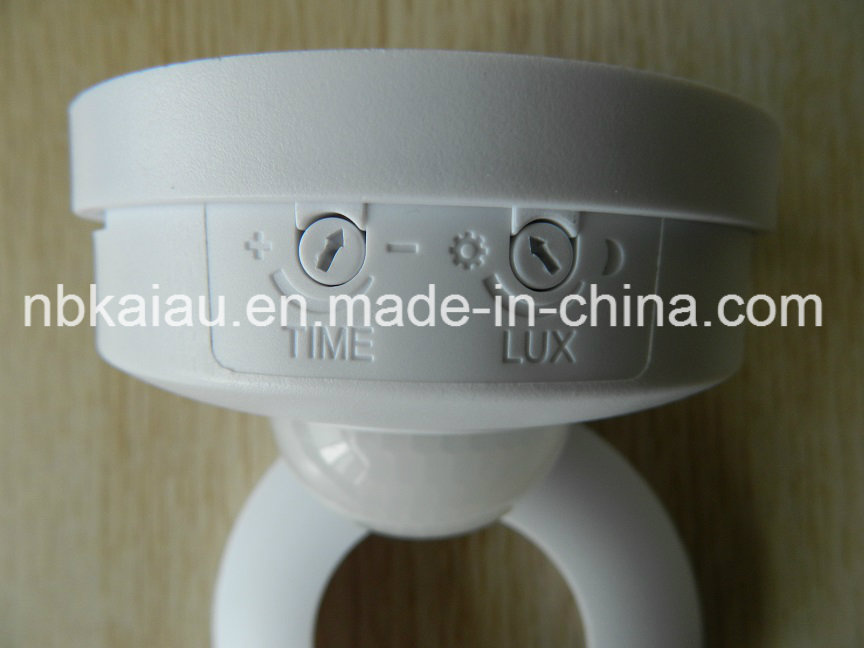

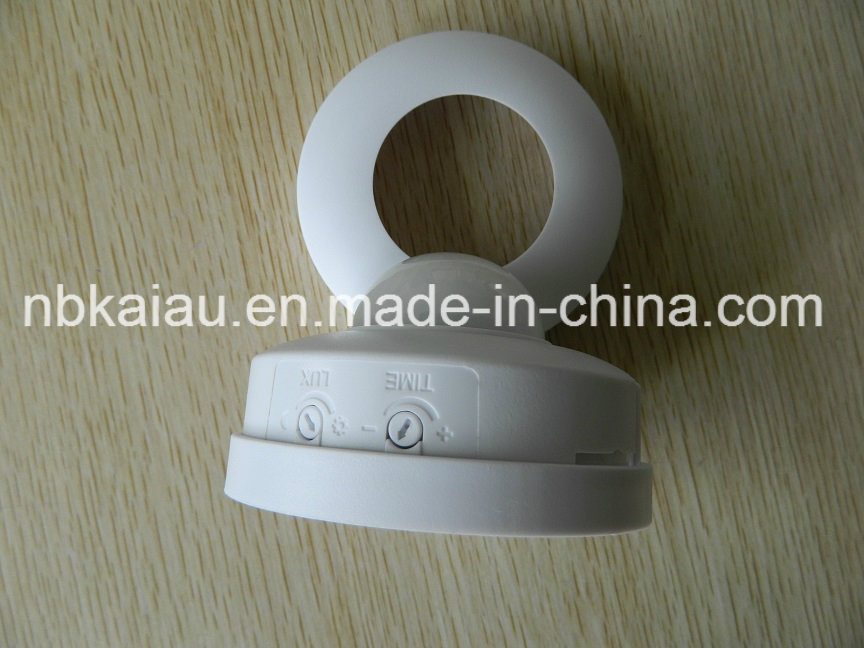

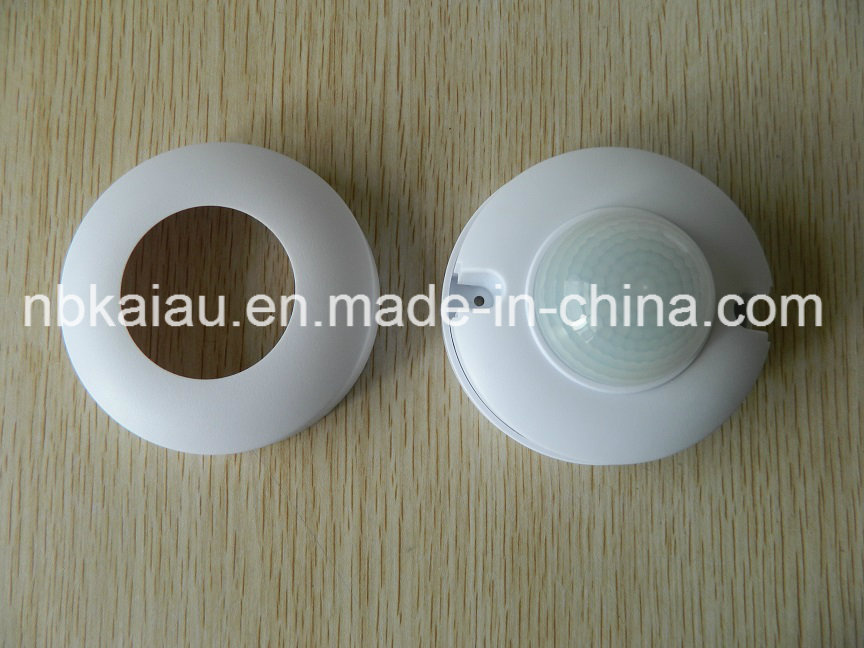

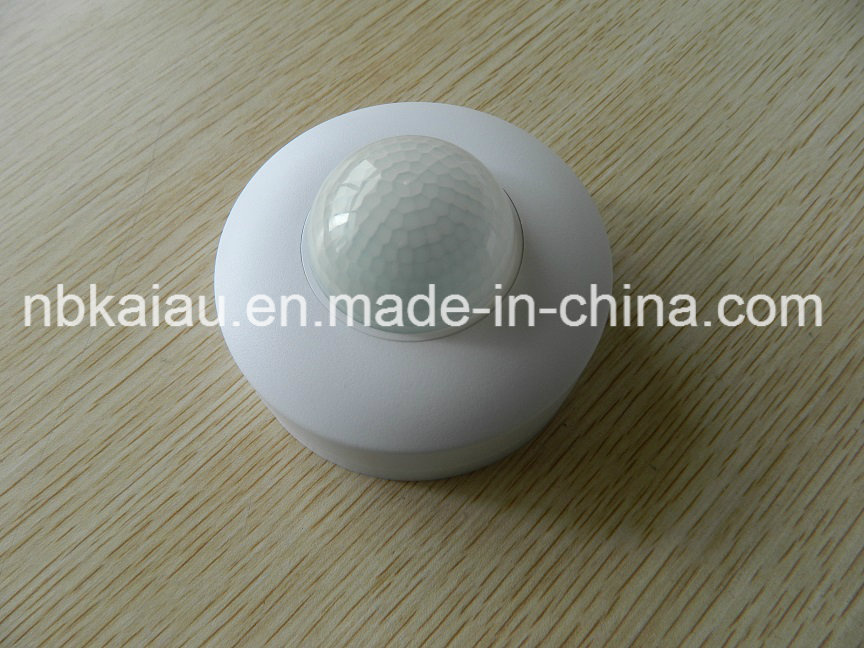

KA-S03C Actual photos:
