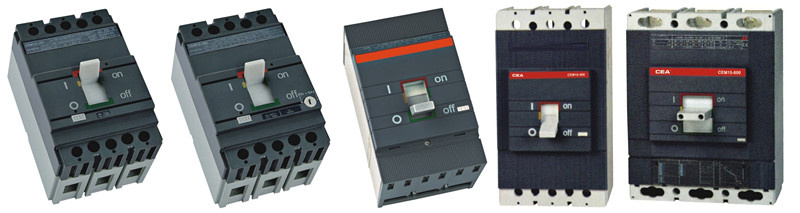

Cem15 Moulded Case Circuit Breaker (T2H/T5H MCCB)
| Price: |
US $ 12.2/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
CEM15-125 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| High Breaking Capacity: |
70ka |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
Moulded Case Circuit Breaker |
| Certification: |
CE, CCC |
Product Description
Moulded case circuit breaker (CEM15MCCB) is suitable for the circuit of AC 50Hz(or 60Hz), rated insulation voltage 660V, rated operating voltage under AC 660V, 250V(DC), rated operating operating current 10-800A.
It is for distributing energy of electricity and infrequent switch-over under normal conditions.
The MCCB rated current under 400A, they are provided with the function of the protection against over-load and short circuit and undervoltage.CEM15 Moulded Case Circuit Breaker, MCCB
CEM15- 125 CEM15-160 CEN15-250 CEM15-400 CEM15-800Specification 1.Rated voltage:up to 690V
2.Rated working current:12.5A to 1600A
3.Standard:IEC60947.
| Rated Current of Release(A) | Thermal Dynamic Release(ambient temp+40ºC) | Operational Current of Magnetic Release | Operational Current of Magnetic Release (A) |
| | 1.05In (cold state) Inoperative Time (h) | 1.30In(heat state) Inoperative Time(h) | |
| In≤63 | ≥1 | <1 | 10-50In±20% |
63| ≥2 | <2 | 10In±20% | |
25| ≥2 | <2 | 5-10In±20% | |
| type | RATED CURRENT(A) | RATED INSULATING VOLTAGE(V) | POLE NO | RATED OPERATING VOLTAGE(V) | UILIMATE SHORT CIRCUIT BREAKING CAPACITY (KA) AC380(400)V | AC660(690)V | DC250V | SERVICE SHORT CIRCUIT BREAKING CAPACITY(KA) AC380(400)V |
| CEM15-125E | 12.5 16 20 25 32 40 50 63 80 100 125 | 660 | 2.3.4 | 380 660 | 15 | | | 7.5 |
| CEM15-125S | 12.5 16 20 25 32 40 50 63 80 100 125 | 660 | 2.3.4. | 380 660 | 25 | | 20 | 16 |
| CEM15-160S | 16 20 32 40 50 63 80 100 125 160 | 660 | 2.3.4 | 380 660 | 35 | 8 | 20 | 18 |
| CEM15-160H | 16.20.32.40.50.63.80.100.125.160 | 660 | 2.3.4 | 380.660 | 50 | 10 | 40 | 25 |
| CEM15-250S | 100 125 160 180 200 225 250 | 660 | 2.3.4. | 380.660 | 35 | 10 | 40 | 18 |
| CEM15-250M | 100.125.160.180.200.225.250 | 660 | 2.3.4 | 380.660 | 50 | 16 | 40 | 30 |
| CEM15-250H | 100.125.160.180.200.225.250 | 660 | 2.3.4 | 380.660 | 65 | 18 | 40 | 48 |
| CEM15-400S | 200.225.250.315.350.400 | 660 | 2.3.4 | 380.660 | 35 | 16 | 40 | 18 |
| CEM15-400M | 200.225.250.315.350.400 | 660 | 2.3.4 | 380.660 | 50 | 20 | 40 | 30 |
| CEM15-400H | 200 225 250 315 350 400 | 660 | 2.3.4 | 380.660 | 65 | 25 | 40 | 48 |
| CEM15-630S | 400.500.630 | 660 | 2.3.4 | 380.660 | 50 | 20 | 40 | 30 |
| CEM15-630M | 400.500.630 | 660 | 2.3.4 | 380.660 | 65 | 25 | 40 | 48 |
| CEM15-630H | 400.500.630 | 660 | 2.3.4 | 380.660 | 80 | 30 | 40 | 60 |
| CEM15-800S | 500.630.700.800 | 660 | 2.3.4 | 380.660 | 50 | 20 | 40 | 30 |
| CEM15-800M | 500.630.700.800 | 660 | 2.3.4 | 380.660 | 65 | 25 | 40 | 48 |
| CEM15-800H | 500.630.700.800 | 660 | 2.3.4 | 380.660 | 80 | 30 | 40 | 60 |
Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.
The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.
Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.
We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.
Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
