| Prod Model: |
GYFXY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Structure: |
Uni-Loose Tube Non Armor |
| Fiber Options: |
Itu G652D ,G657A,Om1,Om2,Om3,Om4 |
| Fiber Count: |
2-24 Cores |
| Installation Tensile: |
1000n |
| Bend Radius (Under Installation): |
20 X External Diameter of Cable |
| Strength Member: |
Steel Wire or FRP |
| Material Of Jacket: |
Black Polyethylene (PE) |
| Certifications: |
ISO9001/Ce/RoHS |
| Temperature: |
40 -70 |
| Warranty (Year): |
2 |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
Other |
| Core: |
2-288 |
| Brand: |
Efon |
| Sheath Material: |
HDPE/Lszh Sheath/Flame Retardant Sheath/Anti-Roden |
Product Description
Description

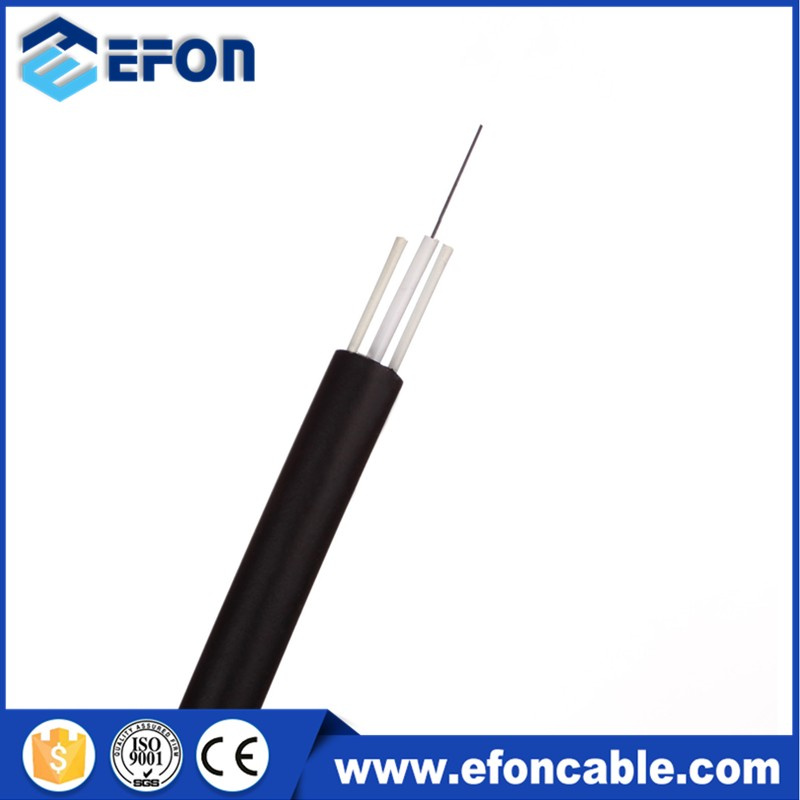

Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.Feature
Features
Embedded strength member provide desirable tensile strength.
Compact, easy to install.
UV and moisture-resistant design
Applications
Installed in duct, direct burial.
FTTx.
Optical Charateristics
Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m |
Attenuation (+20X) | 850 nm | | | <3.0 dB/km | <3.3 dB/km |
1300 nm | | | <1.0 dB/km | <1.0 dB/km |
1310 nm | <0.36 dB/km | <0.40 dB/km | | |
1550 nm | <0.22 dB/km | <0.23 dB/km | | |
Bandwidth | 850 nm | | | >500 MHz-km | >200 Mhz-km |
1300 nm | | | >500 MHz-km | >500 Mhz-km |
Numerical Aperture | | | 0.200±0.015 NA | 0.275±0.015 NA |
Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | | |

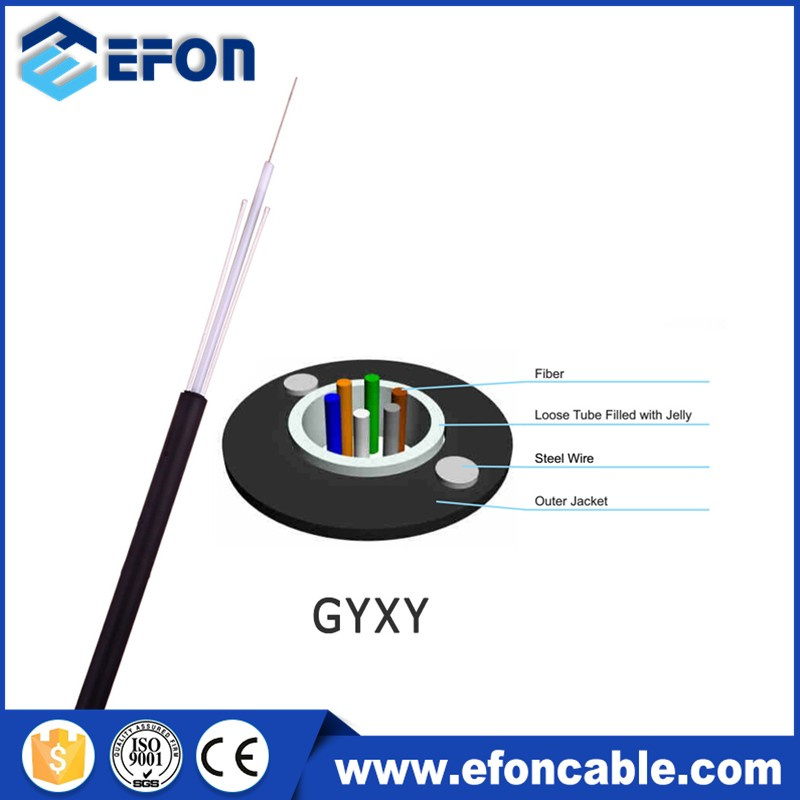

Structure and Technical Specifications GYXY
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance
(N/100mm) |
Short Term | Long Term | Short Term | Long Term |
2~12 | 6.2 | 52 | 1000 | 400 | 1000 | 1000 |
14~24 | 7.0 | 64 | 1200 | 500 | 1000 | 1000 |

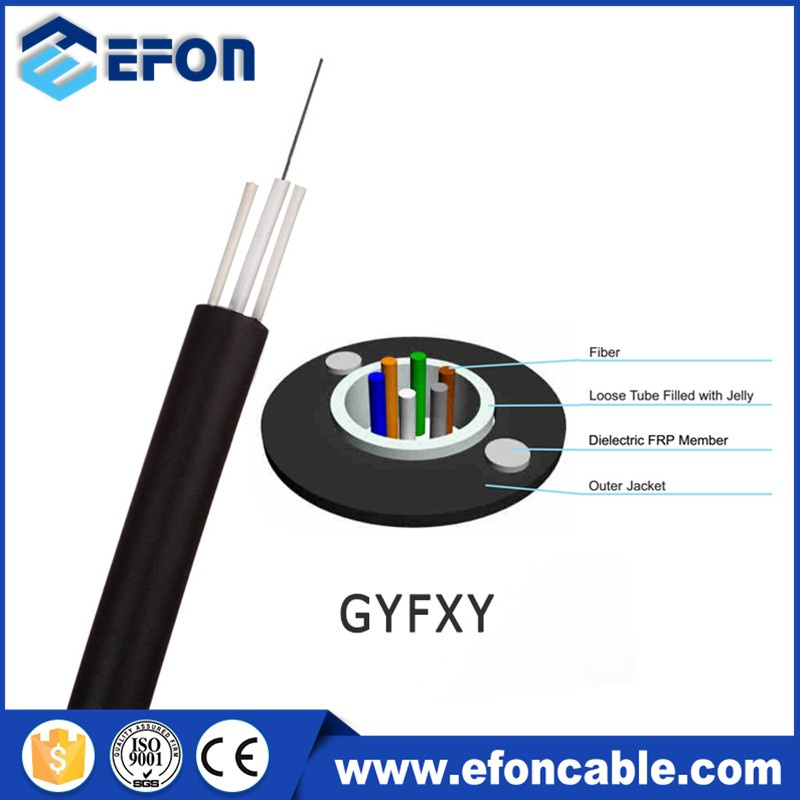

Structure and Technical Specifications GYFXY(All-Dielectric)
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance
(N/100mm) |
Short Term | Long Term | Short Term | Long Term |
2~12 | 6.2 | 45 | 600 | 250 | 1000 | 1000 |
14~24 | 7.0 | 56 | 800 | 300 | 1000 | 1000 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
We Produce and Test Cable Comply with Following Standard
Mechanical Performance |
Max Tension Performance | IEC 60794-1-2-E |
Max. Operation Tension | IEC 60794-1-2-E1 |
Crush Test | IEC 6079 -1-2-E3 |
Impact Test | IEC 60794-1-2-E4 |
Repeated Bending | IEC 60794-1-2-E6 |
Torsion Test | IEC 60794-1-2-E7 |
Cable bend | IEC 60794-1-2-E11A |
Attenuation Coefficient | ITU-T G.652 |
Structural Test | IEC-60793-1-20 |
Environmental Performance |
Temperature Cycling | IEC 60794-1-2-F1 |
Water Penetration | IEC 60794-1-2-F5B |
Filing Compound Flow | IEC 60794-1-E14 |

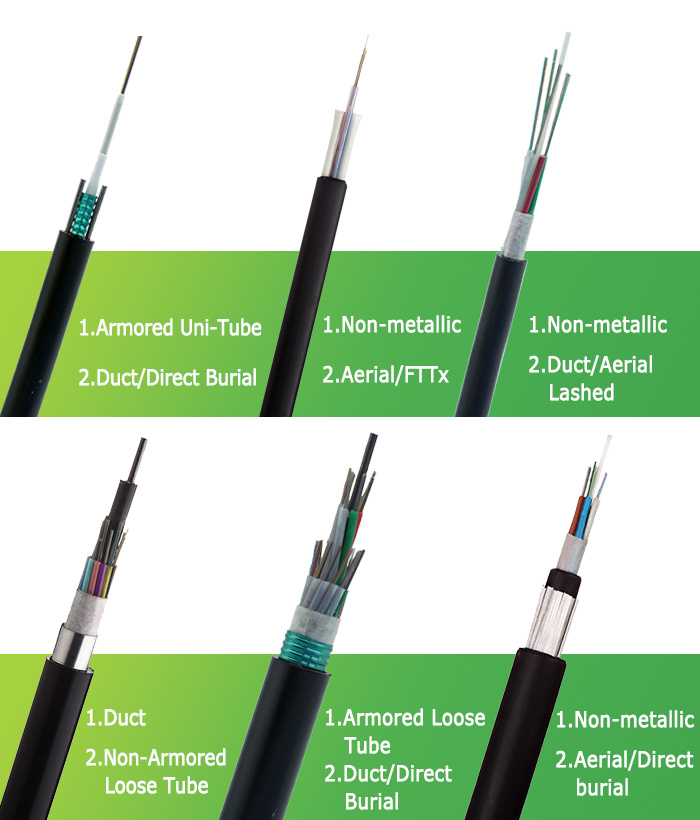

You May Like
