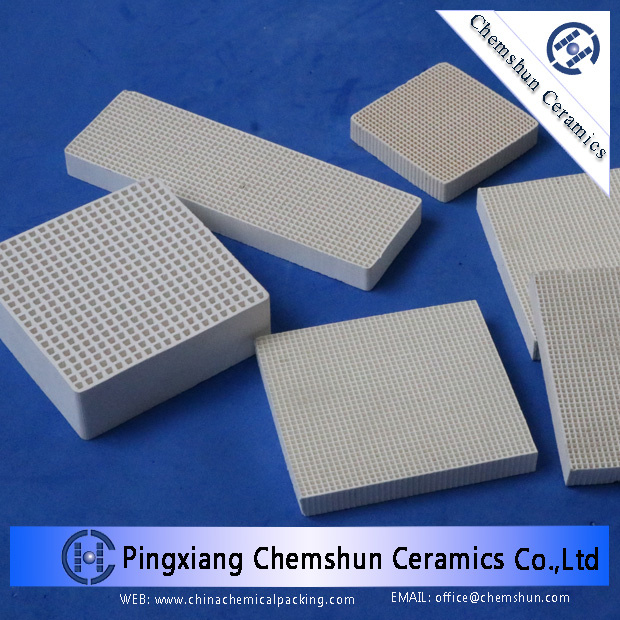

Ceramic Honeycomb as Catalyst Support Bed
| Price: |
US $ 1250-2800/Ton |
| Trade Terms: |
FOB,others |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
chemshun ceramics |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Effect: |
Engine Exhaust Gas Purification |
| Features 1: |
Thermal Expansion Coefficient |
Product Description
Heat Exchange Media - Honeycomb Ceramic Accumulator
We pingxiang chemshun ceramics Co., Ltd with 15years experies of manufacturing and exporting ceramic honeycomb products.
The ceramic honeycomb as heat exchange media mainly applied on thermal equipment for energy saving
Within industry. Typically in heat recovery unit of RTO, instead of ceramic saddles With low heat expansion coefficient, large surface area, good heat stability and anticorrosion, it is the key and core componets of regenerative high temperature combustion(HTAC technology)
Honeycomb ceramic is mainly used in metallurgy, tower packing in chemical industry, construction, heat-regenerative and high temperature air purification, industrial waste gas treatment, NOX purified system in firepower plant, pufrified system for harmful gas rising from rubbish burning and poinsonous gas purification in chemical and mining industries, acting as filter and catalyst carrier used in foundry process.
Materials: Aluminium ceramic, cordierite, Mullite, dense aluminium.
| Chemical & physical index | Cordierite | Dense cordierite | Cordierite- mullite | Mullite | Corundum-mullite |
| SiO2 % | 45~55 | 45~55 | 35~45 | 25~38 | 20~32 |
| AI2O3 % | 30~38 | 33~43 | 40~50 | 50~65 | 65~73 |
| MgO % | 10~15 | 5~13 | 3~13 | - | - |
| K2O+Na2O % | < 1.0 | < 1.0 | < 1.0 | < 1.0 | < 1.0 |
| Fe2O3 % | < 1.5 | < 1.5 | < 1.5 | < 1.5 | < 1.5 |
| Thermal expansion coefficient 10 -6 /K -1 | < 2 | < 4 | < 4 | < 5 | < 7 |
| specific heat J/kg@ K | 830~900 | 850~950 | 850~1000 | 900~1050 | 900~1100 |
| Working temperature ° C | < 1300 | < 1300 | < 1350 | < 1450 | < 1500 |
| PS: we also can make products at your request and actual operating condition. |
| Cordierite ceramic honeycomb specification reference |
Size
(mm) | Quantity
of
channels | Wall
thickness
(mm) | Channel
Width
(mm) | Surface
area
(m 2 /m 3 ) | Void section (%) | Packaging density
(kg/ m 3 ) | Weight per piece (kg) |
| 150× 150× 300 | 25× 25 | 1.0 | 4.96 | 580 | 68 | 696 | 4.7 |
| 150× 150× 300 | 40× 40 | 0.7 | 3.03 | 891 | 65 | 814 | 5.5 |
| 150× 150× 300 | 50× 50 | 0.6 | 2.39 | 1090 | 63 | 903 | 6.1 |
| 150× 150× 300 | 60× 60 | 0.5 | 1.99 | 1303 | 63 | 932 | 6.3 |
| 150x100x100 | 40× 40 | 1 | 2.5 | 784 | 49 | 799 | 1.2 |
| 150x100x100 | 33x33 | 1.1 | 3.0 | 691 | 52 | 750 | 1.13 |
| 150x100x100 | 20x20 | 2.0 | 5.0 | 392 | 49 | 692 | 1.04 |
| 100x100x100 | 40x40 | 1.0 | 2.5 | 784 | 49 | 810 | 0.81 |
| 100x100x100 | 33x33 | 1.1 | 3.0 | 691 | 52 | 750 | 0.75 |
| 100x100x100 | 20x20 | 2.0 | 5.0 | 392 | 49 | 680 | 0.68 |
| Other shapes, specification and material are available. |
Service:
Any requirment about chemshun Alumina Ceramic Square Mosaic Tile , Honeycomb Ceramic Accumulator,Wear Ceramic Liner Vulcanized Into Rubber and wear resistant ceramic product Backing, alumina ceramic rubber wear plate and Wear Resistant Rubber Ceramic Panels, please feel free contact us and chemshun we'll afford you the most suitable product and best service. web:www.chemshun.com . Tel:86-799-6790781
Export:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.
Pingxiang Chemshun ceramics Co., Ltd is a manufacturer of 95% & 92% Al2O3 alumina and ZTA (Zirconia toughness Alumina) wear resistant ceramic liner products. Chemshun ceramics was established in 2002, we have 15 years of professional ceramic producing and import & exporting experierence. Chemshun have the products and service of: Design, produce, sell, as follows:
1) 95% Al2O3 Alumina, 92%Al2O3 alumina, ZTA, abrasion wear resistant ceramic liner / linings and high quality grinding beads and grinding balls.
Chemshun manufacturing wear resistance Ceramic liner including: Alumina ceramic plain tile, ceramic weldable plate, alumina pipe liner, ceramic blocks, abrasion resistant lining, lined pipe and fitting, ceramic linings, wear-resistance ceramic linings, chemshun pre-engineered equipment lined ceramics and paiting, custom designed alumina ceramic, hexagonal ceramics sheet, square ceramic lining pieces, ceramic liner, Ceramic Conveyor Pulley Lagging, ceramic tube and all kind of engineered ceramics, the finished equipment according to drawings. Ceramic Grinding balls, griding cylinders. Products used in the mineral, steel, power, port, cement, ceramic, glass etc industries, and was fixed on the equipment of chute, cyclone, cone, fan etc.
2)Catalyst support media /support covering materials (Inert ceramic balls, 99 alumina balls, all kind of ceramic/alumina rings) and all kinds of tower packings(Mat: Eramic/Plastic/Metallic), saddles, pall rings, flower rings, raschig rings, cascade mini rings etc) and ceramic honeycomb products.
Aim for servicing with the global maket, we established a new factory in 2008 which mainly supplys the high alumina wear resistant product and the high quality catalyst support media. In 2016year we establish a new producing line special for 99.5%Al2O3 and 99% Alumina balls.
Has strong research and production capability, with an annual production capacity of 5000 tons of wear-resistance product (grinding balls & lining bricks, alumina plate, alumina mosaic product), 1500m3 catatalyst support /covering materials (inert ceramic balls, 99alumina balls, ceramic honeycomb materials) and 1500m3 various chemical packing. We aim to serve clients from all over the world.
