| Prod Model: |
WA18 |
| Model No.: |
Wa18 |
| Pressure Range: |
0-40kpa…2.5MPa |
| Typical Output: |
0-100V |
| Media Range: |
Non-Corrosive Gas and Liquid |
| Pressure Reference: |
Gauge |
| Compensation Temperature: |
0~70ºC |
| Place Of Origin: |
Heifei, Anhui, China |
| Warranty: |
1year |
| Component: |
OEM Technology |
| Measuring Medium: |
Liquid and Gas |
Product Description

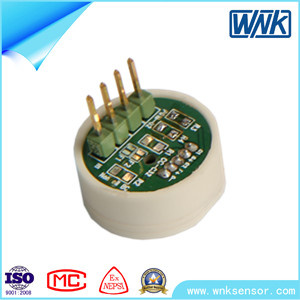

WA18 Diffused Silicon Oilless Pressure Sensor WA18 series is MEMS technology based piezoresistive silicon sensor. It uses ceramic housing without isolation diaphram and silicon oil. WA18 is different with tranditonal diffused silicon diaphram-free sensors: pressure media touches directly with the back of pressure chip (the side without circuit), ensuring durability and long-term stability of the sensor. It is a kind of low cost and high performance OEM pressure measuring sensor designed for clear and non-corrosive gas and liquid.
Every sensor was strictly temperature compensated for both zero and span before shipment to ensure measurement accuracy in complex environment.
Features - WA18 Diffused Silicon Oilless Pressure Sensor 1. For measuring non-corrosive gas and liquid
2. Simple structure in low cost
3. Suitable for small and medium pressure (0-40Kpa2.5Mpa)
4. Compensation temperature 0-70ºC
5. Typical output: 0-100mV
6. Ventilating Gauge pressure (G)
Technical Parameters under Constant Voltage (excitation voltage 10VDC, preheat 10mins under 25ºC)| Parameters | Min. | Typical | Max. |
| Accuracy(%FS) | | | |
Non-
Linearity1 | 40Kpa | | ±0.20 | ±0.30 |
| >40Kpa | | ±0.10 | ±0.20 |
| Hysteresis | | ±0.05 | ±0.1 |
| Repeatability | | ±0.05 | ±0.1 |
| Output(mV) | | | |
| Zero | -5 | 0 | 5 |
| Span(FS) | 95 | 100 | 105 |
| Temp. characters | | | |
| Operation Temp.(ºC)3 | -40 | | 125 |
| Compensation Temp(ºC) | 0 | | 70 |
| Zero Temp.error(%FS)4 | -0.75 | ±0.5 | 0.75 |
| Span Temp. error(%FS)4 | -0.75 | ±0.5 | 0.75 |
| Thermal hysteresis(%FS) | | 0.1 | |
| Long term Stability | | | |
| Zero (±%FS annual) | | 0.1 | |
| Span (±%FS annual) | | 0.1 | |
| Supply Voltage | | 10VDC | 14VDC |
| Input Resistance | 6kΩ | 8kΩ | 10kΩ |
| Output Resistance | 2.5kΩ | 3kΩ | 3.7kΩ |
| Load Resistance5 | 5MΩ | | |
| Insulation Resistance(50V)6 | 50MΩ | | |
| |
| Pressure Range | 0-40Kpa2.5Mpa |
| Pressure Overload | 2X Rated pressure or 3.5Mpa (take the smaller) |
| Pressure Breakdown | 1.5X Rated pressure or 4Mpa (take the smaller) |
| Pressure Media | Clear gas and clear non-corrosive liquid compatible with ceramic, silicon, glass, Silica( measuring range smaller than1Mpa)/ epoxy resin adhesive (measuring range higher than 1Mpa) |
Note:1. Best fit straight line.
2. Measured at vacuum for absolute (A), ambient for gage (G).
3. Maximum temperature range for product with standard cable is -20°C to +105°C.
4. Over the compensated temperature range with respect to 25°C.
5. Load resistance to reduce measurement errors due to output loading.
6. Between case and sensing element.

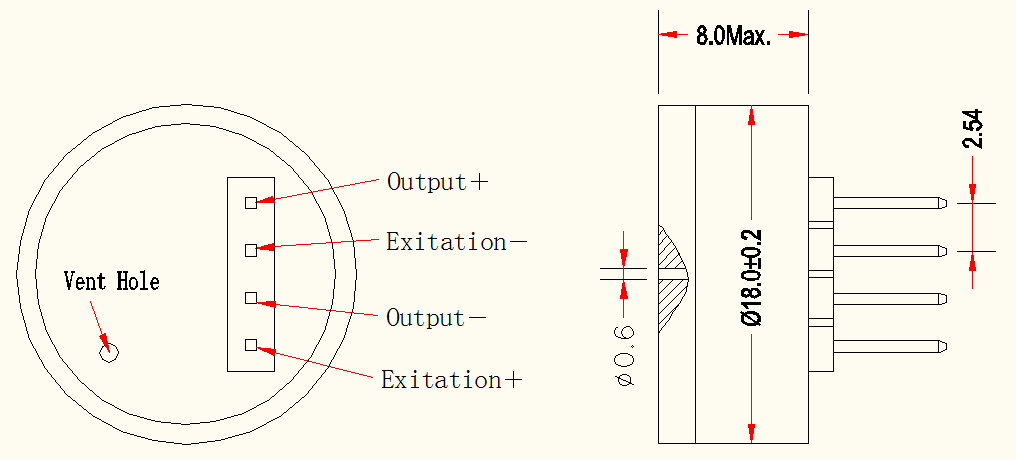

Dimensions - WA18 Diffused Silicon Oilless Pressure Sensor
Why choose us?1. We are professional manufacturer with own R&D and sales team, with more than 12 years producing experience in transmitters & sensors.
2. We have strict quality control system, each set product we do temperature compensation and aging test before shipment, so the quality is guaranteed.
Delivery
7~15 days after order confirmedContact
