Product Description

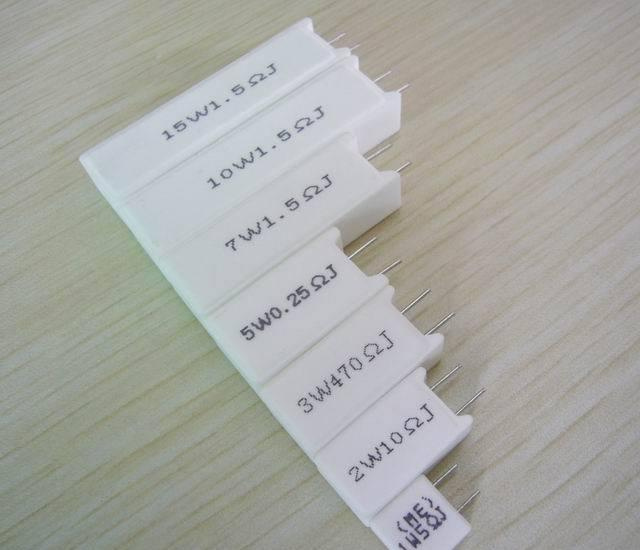

RGG cramic resistors
RGG type cement resistors are dielectric strength, weldability strong, various specifications, wide use.
Features
1 Heat and flame resistant
2 Completely insulated character suitable for printed circuit board
3 Winding core replaced by metal oxide film cutting core (RS type) for high resistance value
4 Non-inductive type available on request
Characteristics:
1 Temperature coefficient: +/-300ppm/oC
2 Insulation resistance: >100M ohms
3 Load life (1000 hours): +/-2%, +0.05 ohm
4 Short-time overload: +/-2%, +0.05 ohm
5 Dielectric withstanding vollage: +/-1%, +0.05 ohm
6 Moisture resistance: +/-3%, +0.05 ohm
7 Shock and vibration: +/-1%, +0.05 ohm
8 Soldering heat: +/-1%, +0.05 ohm
9 Incombustibility: EX 16 times V, 5 minutes
Advantage:
1 Competitive price
2 High stability and high quality
3 Prompt shipment
Production
name |
Cement resistor, Power Resistor, Fixed Resistor, Ceramic Resistor |
|
Power rating |
1W-100W |
|
Resistance value |
0.01Ω -100KΩ |
|
Resistance tolerance |
1%, 5%, 10% |
Features
|
1. Small size, resistant to vibration, humidity and heat. good dissipation, low noise and no annual shift in resistance value, low price
2. For high resistance value, wires are replaced by metal oxide films.
3. Complete insulation suitable for printed circuit boards.
4. Different Types. |
Common
specification |
SQP type: 1W, 3W, 5W, 7W, 10W, 15W, 20W, 25W, 30W, 40W, 50W, 80W, 100W.
SQZ type: 5W, 7W, 10W, 15W, 20W, 25W, 30W, 40W, 50W, 80W, 100W.
SQH/SQHGtype: 5W, 7W, 10W, 15W, 20W, 25W, 30W, 40W, 50W, 80W, 100W.
SQT type: 5W, 7W, 10W.
SQM type: 3W, 5W, 7W, 10W, 20W.
SQF type: 10W51KΩ , 20W33 KΩ , ect.
SRBB type: 60W20Ω , 600W100Ω , 80W20Ω , 80W50Ω , ect. |
Performance
|
Test item |
Test condition |
performance |
Temperature
coefficient |
-55-155 |
± 350PPM/Max |
Short-term
overload |
1000% rated power 5s |
Δ R≤ ± (2%+0.1Ω ) |
|
Rated load |
Rated wattage for 30 min |
Δ R≤ ± (1%+0.1Ω ) |
Insulation
resistance |
DC 500V 60s |
1000MΩ Min |
Dielectric
withstanding
voltage |
DC 1000V 60s |
No change |
Moisture-proof
Load life |
40, 90%-95% power rating
1.5H ON, 0.5OFF cycle
1000H |
Δ R≤ ± (5%R 0 +0.1Ω ) |
|
Nonflammability |
500%, 1000%, 1600%
power rating 5min |
No visable flame |
|
|
|
|
NOTE |
1. For customer specifications, please contact us to discuss the details.
2. Different power rating owning multi weight, dimension and packing.
3. More details, please contact us.
|
Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.
Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.
Factory' S quality policy: "product quality, service in advance, customer satisfaction".
Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
