| Prod Model: |
CAT5e |
| Conductor: |
0.48mm-0.51mm |
| Insulation: |
1.02mm HDPE/PVC |
| Jacket: |
5.8mmpe,PVC |
| Fluke Test: |
90m-100m 100%Pass |
| Certificate: |
Ce/ETL/SGS/RoHS/UL |
| Key Words: |
Cat5 CAT6 |
| Application: |
LAN Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Type: |
Cat 5 |
| Certification: |
UL |
| Brand: |
Dongsheng Cable |
Product Description
LinAn DongSheng Cable Supply for 4 Pairs Cat5e Cable
Cat5e Cable
Tips: We can ensure the cable pass FLUKE TEST 100% for CU conductor, with a high
performance in your Cabling solution, or projec.
1. Certification: CE. ROHS,REACH,ISO Listed
2. Compliance: ETL verified ANSI TIA/EIA568-2, ISO/IEC 11801. RoHS Compliant.
3.Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment
4. Remark: 250HMZ 550MHz ATM 155MBPS, 100mbps TPDDI, Fast Ethernet etc

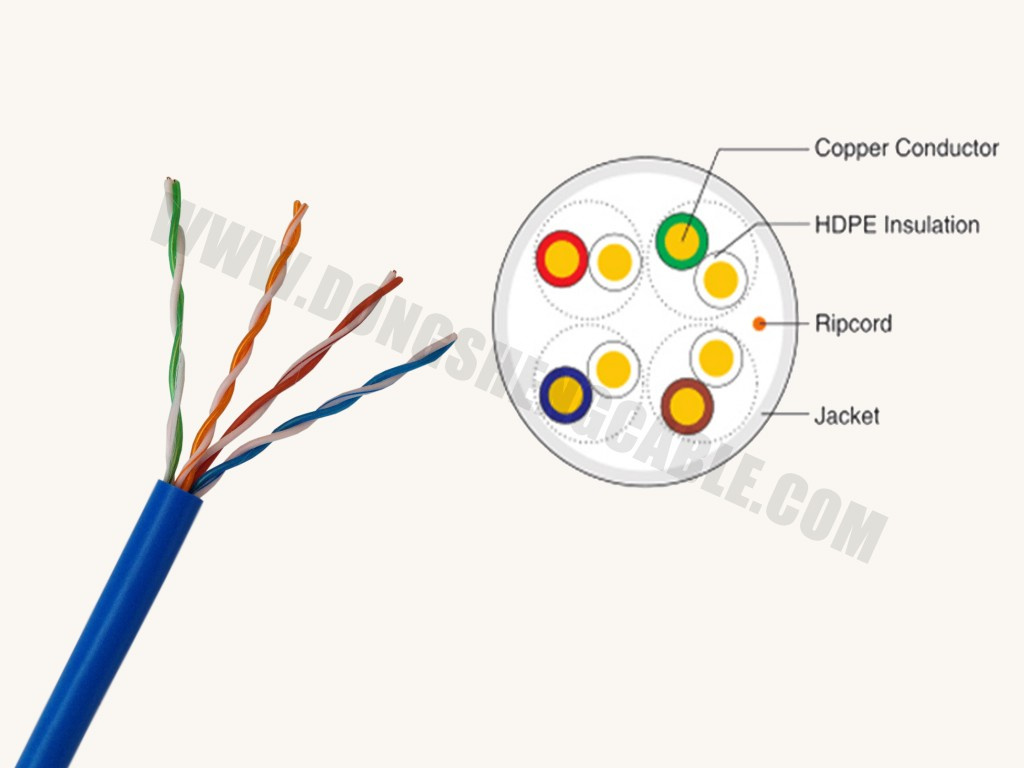

UTP Cat5e Cable,Lan Cable Cat5e,Network Cable Construction
| Item | Conductor | Number Of Pairs | shielding | Drain Wire | O.D. |
| Cat5e UTP Cable | 0.51mm
BC/CCA | 4 | Non | Non | 5.1mm Jacket
ROHS,UV,LSZH,UL,Reach |
| Cat5e FTP Cable |
0.51mm
BC/CCA | 4 | Aluminum Foil | Yes | 5.1mm Jacket
ROHS,UV,LSZH,UL,Reach |
| Cat5e SFTP Cable | 0.51mm
BC/CCA | 4 | Aluminum Foil + Alloy Braiding | Yes | 6.2mmJacket
ROHS,UV,LSZH,UL,Reach |
| Cat5e UTP Outdoor Cable | 0.51mm
BC/CCA | 4 | Non | Non | 6.2mm Jacket
ROHS,UV,LSZH,UL,Reach |
| Cat5e FTP Messenger Cable | 0.51mm
BC/CCA | 4 | Aluminum Foil | Yes | 6.0mm Jacket ROHS,UV,LSZH,UL,Reach |
UTP Cat5e Cable Technical Performance(100m), UTP Cat5e Cable
| Frequency MHz | RL ≥dB | Attenuation ≤dB/100m | NEXT ≥dB/100m | PHASE DELAY≤ ns | ELFEXT ≥dB/100m | PS NEXT ≥dB/100m | PS ELFEXT ≥dB/100m |
| 1 | 20.0 | 2.0 | 65.3 | 570 | 63.8 | 62.3 | 60.8 |
| 4 | 23.0 | 4.1 | 56.3 | 552 | 51.7 | 53.3 | 48.8 |
| 8 | 24.5 | 5.8 | 51.8 | 546.73 | 45.7 | 48.8 | 42.7 |
| 10 | 25.0 | 6.5 | 50.3 | 545.38 | 43.8 | 47.3 | 40.8 |
| 16 | 25.0 | 8.2 | 47.3 | 543 | 39.7 | 44.2 | 36.7 |
| 20 | 25.0 | 9.3 | 48.5 | 542.05 | 37.7 | 42.8 | 34.7 |
| 25 | 24.3 | 10.4 | 44.3 | 541.2 | 35.8 | 41.3 | 32.8 |
| 31.25 | 23.6 | 11.6 | 42.9 | 540.44 | 33.9 | 39.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 538.55 | 27.8 | 35.4 | 24.8 |
| 100 | 20.1 | 22.0 | 35.3 | 537.6 | 23.8 | 32.3 | 20.8 |
Applications: Cat5e UTP Cable, UTP Cat5e Cable
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission

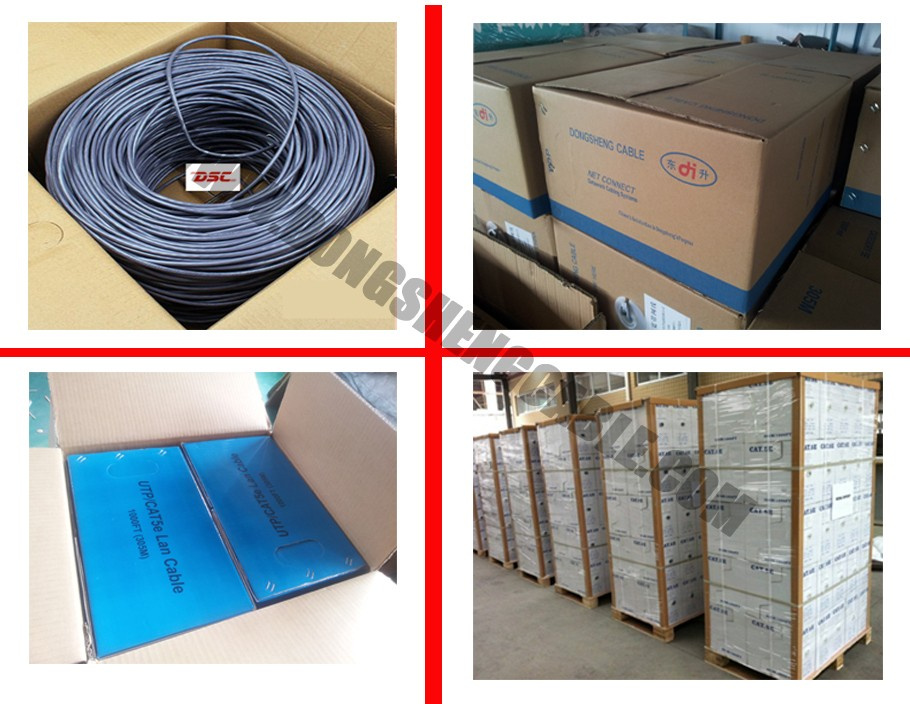

Cat5e Lan Cable Package Method

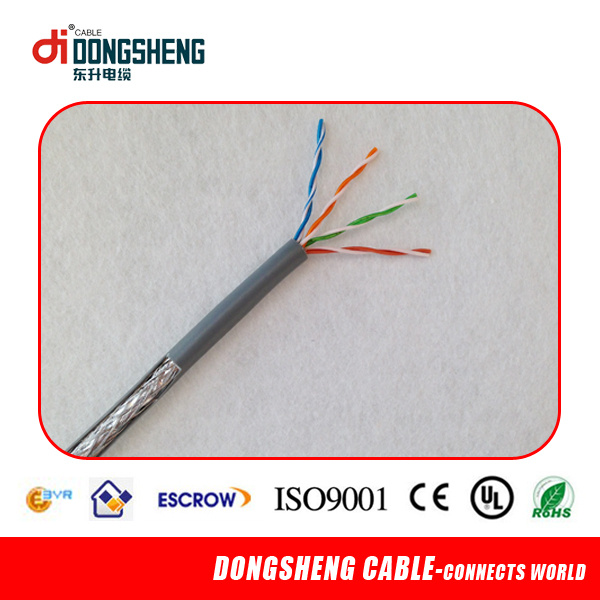

Cat5e UTP Cable kinds of Picture

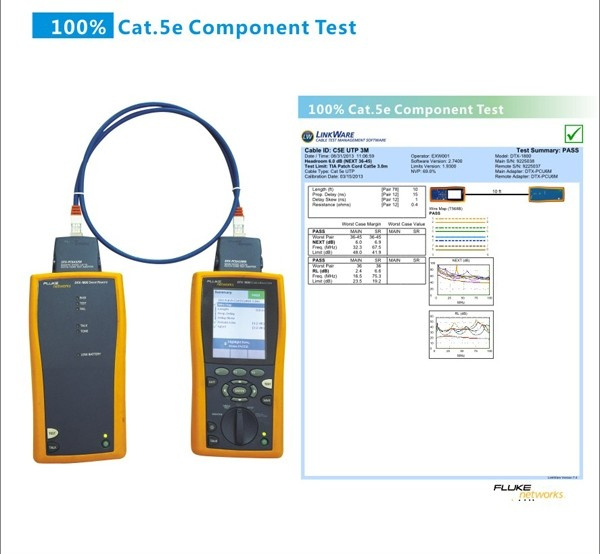

UTP Cat5e Lan Cable,Cat5e UTP Network Cable Test Report

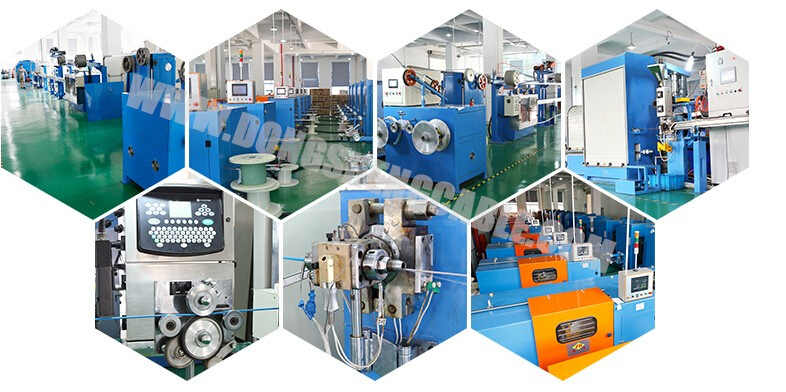

Factory Show
Products Certifications
Exhibition Trade Show
We attend to 3-5 Fairs in Beijing CCBN,Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company to the future new customers
