| Prod Model: |
OCT900-R |
| Product Name: |
Multifunctional GPS Vehicle Tracker with Portable |
| Brand Name: |
Oner |
| Color: |
Black |
| Weight: |
145g |
| Place Of Origion: |
Guangdong, China |
| Fuel Monitoring: |
Yes |
| Voice Monitoring: |
Yes |
| Bakup Battery: |
550mAh |
| Warranty: |
12 Months |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multichannel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Model: |
Oct900-R |
| Screen Size: |
No Screen |
| Brand: |
Oner |
| Certification: |
FC, RoHS, Ce |
Product Description

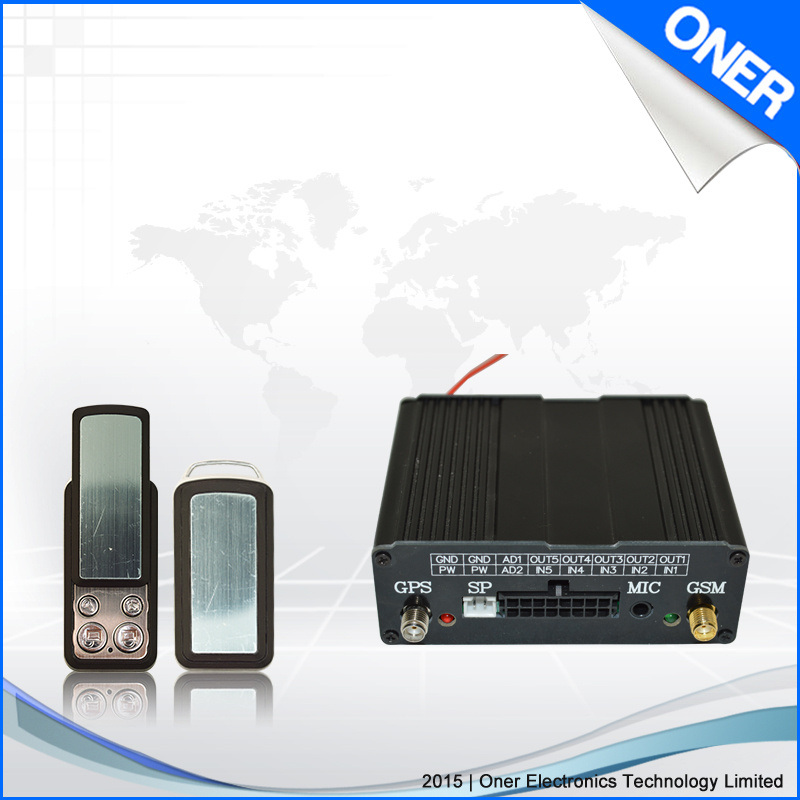

Certified car GPS tracker with remotes and engine block
Full Protections To Your Cars By Remotes, Anti GPS Blocking
Just need to press remotes when you leave the car, vehicle tracker enters ARM mode.:
Cut fuel supply at once, car can not start even with the key;
Lock car door automatically;
Upgrade car original alarm system to GPS/GSM alarm system.
If any one want to steal your car, Control car signal light to blink for 5 mins, as well as siren buzzing for 5 mins
Keep your cars be always safety. This feature will work even if GPS was blocked by theft
Key Features:Tracking via SMS or GPRS (TCP/UDP)
Living location report: GPS data sent to server by distance or car moving veer setting
Tracking by time interval
SOS panic button,emergency alarm.
Geo-fencing control and alarm.
Low battery alert
Engine cut/Stop car moving/Enable car moving
Get detail address via SMS directly
Mileage calculation report
GOOGLE MAP link for location via SMS.
ACC detecting:ACC detecting on/off status
Detect car door on/off status by SMS or web GPS tracking system
Firmware update OTA_Tracker firmware's program can be updated on the air instead of USB cable in cause tracker needs new program
Two way communication: Voice monitoring and speaking remotely on the phone
Speed limitation
Check airtime/balance via SMS
Car door opening alarm
Check balance via SMS
Lock/unlock car door by remotes (option)
Arm/disarm car door by remotes (option)
LED light flash when car is armed by SMS and remotes (option)
Get car information via SMS, sms content includes Car plate number,car chasis number,owners name,owners contact,speed limitation,and installation time and expiry ant trackers imei number.
Buzzer for speeding alarm (option)
Set driver working time via SMS
Engine on alarm
Data record with SD card(Optional)
Camera monitoring,phone viewer via APP and SMS,3 cameras supported(Optional)
Technicial Specification| Power supply | +9V - +35V / 1.5A |
| Backup Battery | 550mAh |
| Dimension | 60mmx85mmx30mm |
| Weight | 145g |
| Operating temperature | -20° to 55° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | GSM850/900/1800/1900Mhz |
| GPS Chipset | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position | Accuracy 10 m, 2D RMS |
| Velocity | Accuracy 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | <1 sec., average |
| Warm start | <36 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 m (60,000 feet) max. |
| Velocity Limit | 515 m/second (1000 knots) max. |
| Interface | 5 inputs, 5 outputs, 2 AD, 3 USB ports |
| LED | 2 LED lights to show working status |
