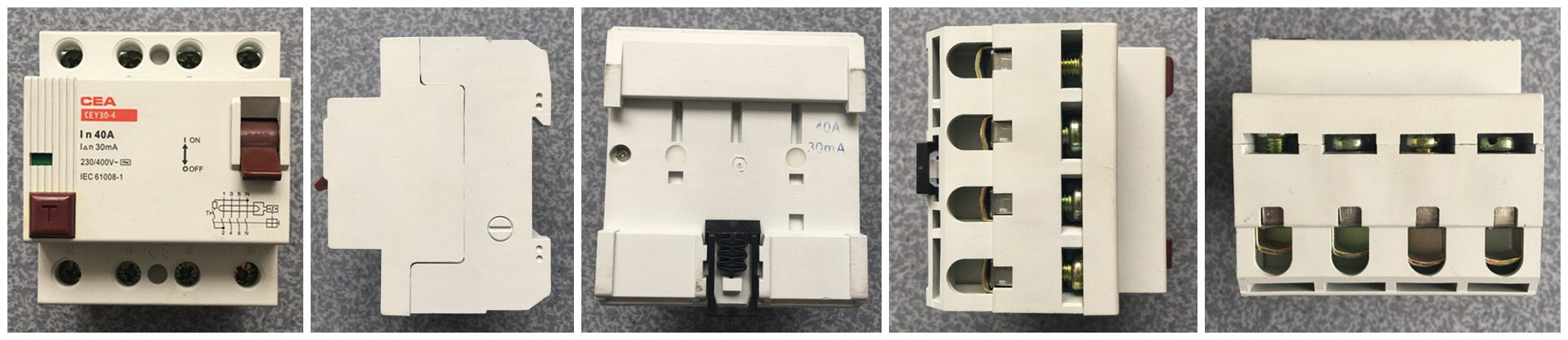

Cey30 4p Series Residual Current Circuit Breaker

Cey30 4p Series Residual Current Circuit Breaker
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: L/C,T/T
Prod Model: CEY30
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity: High Voltage Circuit Breakers
Speed: High-Speed Circuit Breaker
Arc-extinguishing Medium: Air
Poles Number: 4
Operation: Electromagnetic and Electronic Type
Installation: DIN Rail 35mm
Structure: Conventional Circuit Breaker

Product Description

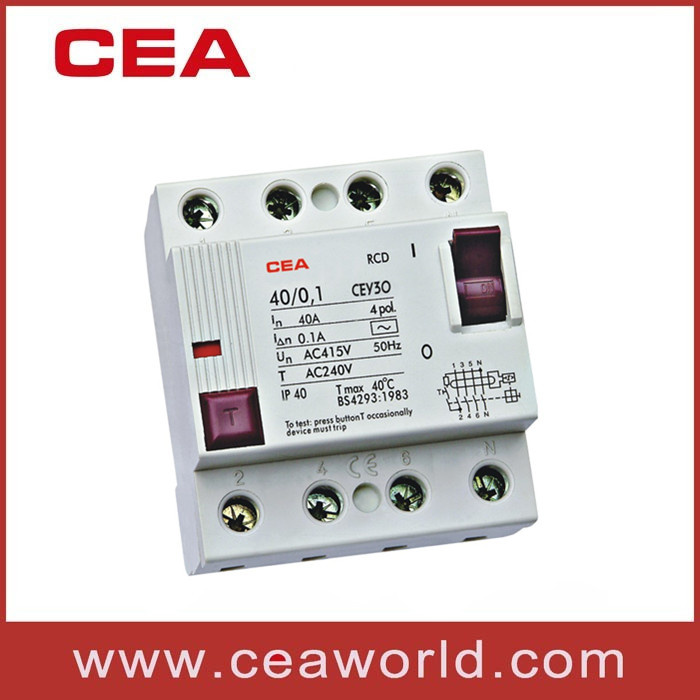

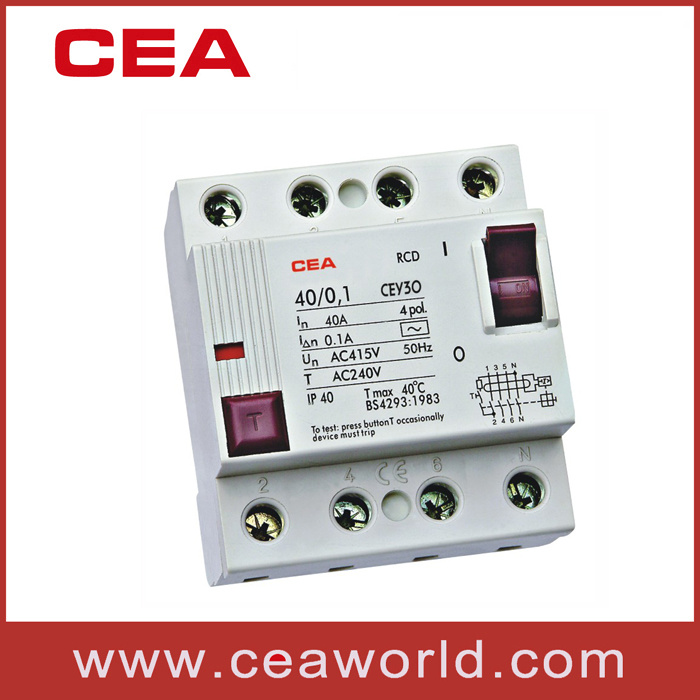

CEY30 earth leakage circuit breaker




Advantage:

Earth leakage circuit breaker with overcurrent protection

Electronic type:

1. Compact structure, small volume, (two modules in width)
2. With short circuit, overload and residual current protection
3. Action function has nothing to do with main circuit voltage
4. With midline cut-off functions, it is safer and more reliable.
5. With double functional connection terminals, it has strong connection ability.
6. With contact state indicator, it is easy to recognize the contact situation.
7. Different handle colors are used to indicate different rated current.
8. High breaking capacity: 10ka
9. With wide range of rated current, it can be used as family main switch
United accessories series
10. This type can prevent the error tripping caused by electric equipment

Specifications:



Pole no.2p
StandardsIEC61009(en61009)GB16917.1
Rated currentType c 6, 10, 13, 16, 20, 25, 32, 40A
Type d 6, 10, 13, 16, 20A
Rated eakage current I n30, 100mA
Rated voltage(ue)230V; 50Hz
Tripping timeG minimum 10ms for prolonging
SensitivityAC type
Type3
Breaking capacity icn10ka
Tripping characteristicC, d
Grade of protectionIP40
Service lifeElectronic: No less than 4000 times
 Machanic: No less than 20000 times
Terminal connectionWire 1-25 square micron
Bus-bar row thickness 0.8-2mm
Shell widthDIN rail 35mm(two modulus in width)

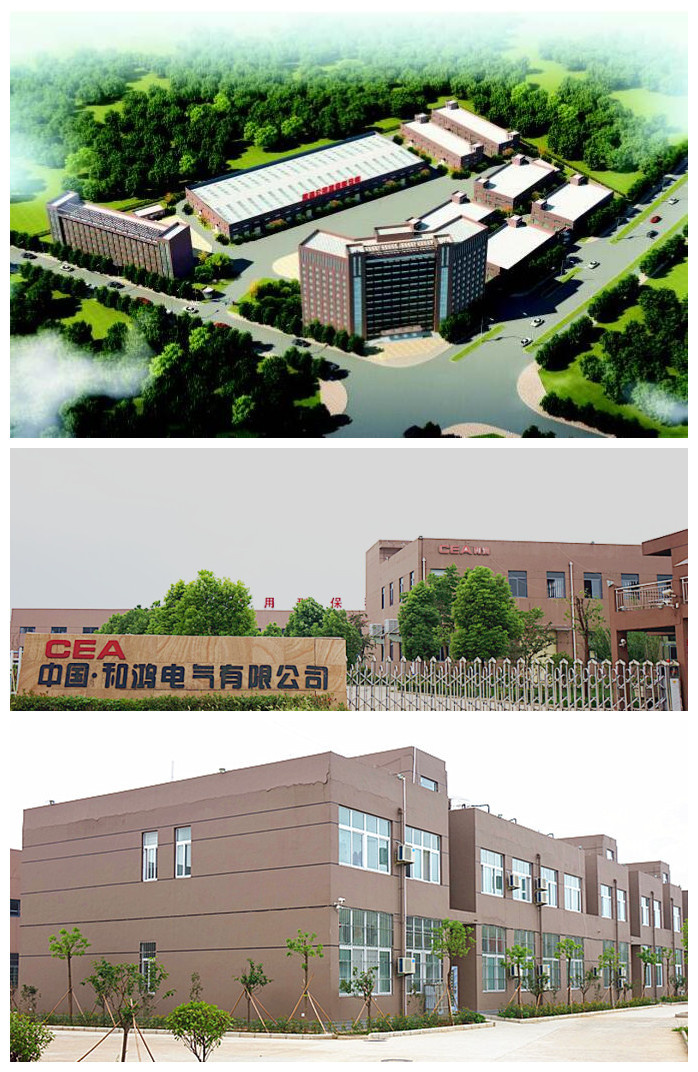

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

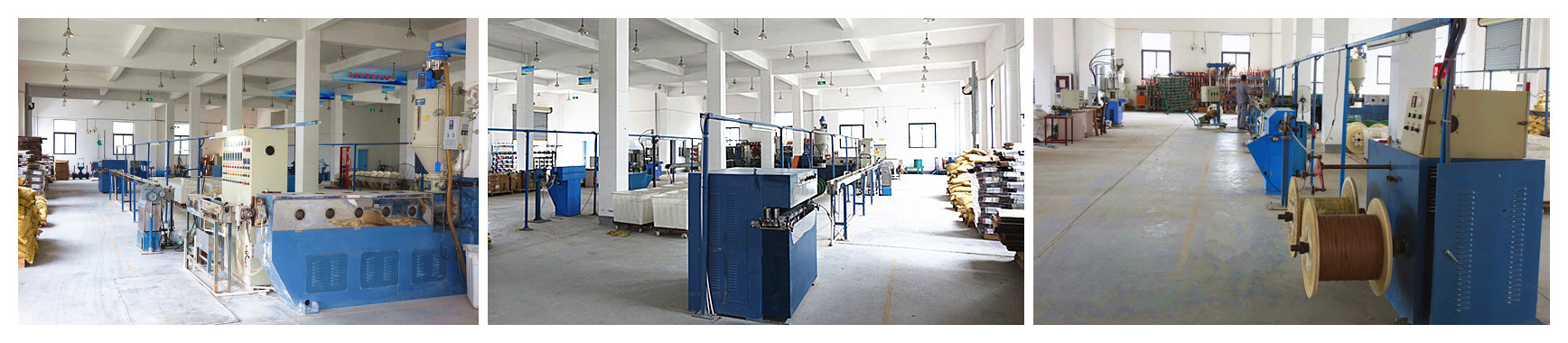

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
