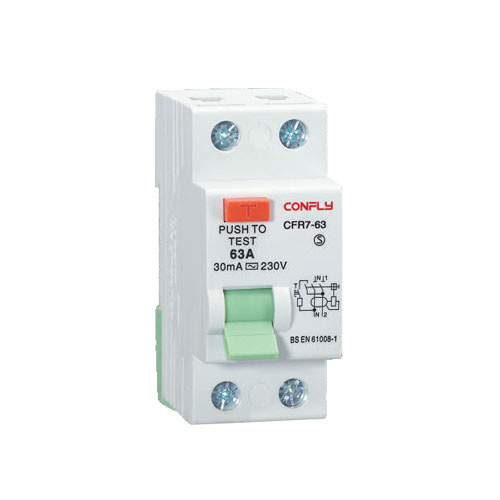

CFR7-63 Residual Current Circuit Breaker, RCCB, ELCB
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
CFR7-63 |
| Pole No: |
2p,4p |
| Rated Voltage: |
240V/415V AC |
| Residual Current Characteristics: |
a,AC |
| Rated Making And Breaking Capacity: |
630A |
| Rated Frequency: |
50/60Hz |
| Rated Current(a): |
16,25,40,63 |
| Standard: |
IEC61008 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
ELCB |
| Certification: |
RoHS |
| Poles Number: |
2p,4p |
Product Description
CFR7-63 Residual Current Circuit Breaker RCCB, ELCBResidual current circuit breaker provides the protection against earth fault/leakage
current and isolation function. Also provides the indirect protection against the
operator and the protection of the fire caused by the electric circuit faulty. Technical Data
Standard: IEC61008
Residual current characteristics: A,AC
Pole No.: 2P, 4P
Rated making and breaking capacity: 630A
Rated current(A): 16,25,40,63
Rated voltage: 240/415V AC
Rated frequency: 50/60Hz
Rated residual operating current I△ n(mA): 30,100,300,500
Rated residual non operating current I△ no:0.5I△ n
Rated conditional short-circuit current Inc: 10kA
Rated conditional residual short-circuit Current I△c:10kA
Tripping duration:instantaneous tripping≤0.1s
Residual tripping current range:0.5I△n~I△ n
Electro-mechanical endurance: 4000 cycles
Connection capacity: Rigid conductor 25mm2
Connection terminal:
Screw terminal
Pillar terminal with clamp
Fastening torque: 2.0Nm
Installation:
On symmetrical DIN rail 35mm
Panel mounting
Our Promise:
1. Quality is our Culture
2. Delivery time guaranteed
3. Superior service to satisfy customer request
4. Insist win-win development
Product Range
MCB, RCCB, ELCB, RCBO, MCCB, ID, MOTER PROTECTION CIRCUIT BREAKER, ISOLATOR
AC CONTACTOR, RELAY, TIMER, SWITCH, FUSE, STARTER, METER
IND. PLUG, SOCKETS AND COUPLINGS, FUSE
DISTRIBUTION BOX(METAL & PLASTIC), BUSBAR
ELECTRICAL ACCESSORIES(CABLE TIE/CLIP/GLAND)
FAQ
Q 1: What is your minimum order quantity for whole of your products ? A1: Most of the items no have MOQ requirement, you can even buy 1pc
Q 2: How about the delivery time ?
A 2: It depends on your order quantity, normally for large order quantities, shipment within 45days.
Q 3: How about the package?
A 3:The carton is strong enough for air and sea shippment.
Colorful box will be designed according to your requirement.
Q 4: Could you offer Form A or C/O ?
A 4: It totally no problem. We can issue Form A and C/O as per customer's need once boat leave.
Q 5: Would you accept OEM ?
A 5: OEM. totally no problem for us. But it require bigger Q'ty than normal.
Q 6: We want to know month capacity.
A 6: 300000pcs/month Q 7: Where is your market?
A 7: Our products are popular in Russia, Hungary, UK,Ireland,Sweden,France, Spain, Swiss, Norway, Portugal, Chile, Uruguay, South of America, Asia, many of Africa countries and so on.
Q 8: what kind of certificate you have ?
A 8: CE, SEMKO,CB, ROHS,VDE.
Q 9: what kind of payment terms can you offer ? A 9: Normal terms of payment in international business such as T/T, Western Union, Paypal, L/C at sight. Usual way of payment for by sea goods: 30% advance ,70% balance before shipment. Q 10: If we bought your products, but found quality problem, how to solve?
A 10: After confirmed, if the quality problem is caused by us not for outer sector,We will compensate each piece to customer.
For more informations, please contact me,
Company Name: Yueqing CONFLY International Co.,ltd
Sales: Sarah Chen
Mobile: +86 13968702208
www.conflyelectric.com
Yueqing CONFLY international Co., Ltd specialized in the exporting trade of electrical equipments. Company located in Yueqing, China, which earned dozen fames, such as the Electric Apparatus Capital of China, Chinese manufacturer base of low voltage electric apparatus. Chinese manufacturer base of electronic components.
We have more than 15 years' experience in the line of low voltage electric products. Under year's growth and development, we become a reliable partner for clients overseas. At present, we have 3 main joint venture factories especially in producing Circuit Breaker, AC contactor, Relays, Distribution boxes and other installation materials. Each factory has complete production equipment and testing facility. Excellent technical team devoted in new product research and development every year to satisfy major market requirements.
Good quality, competitive offer, excellent export & import logistics, efficient market sourcing team, which lead our company win a high admiration and widely trusted by our clients. Our products are distributed to over 15 global markets. Covering main area of Europe, South American, South East Asia, Middle East African, etc.
CONFLY international insists on its own concept that is honesty, quality-first, civilized transaction, cooperative win-win and harmonious development.
