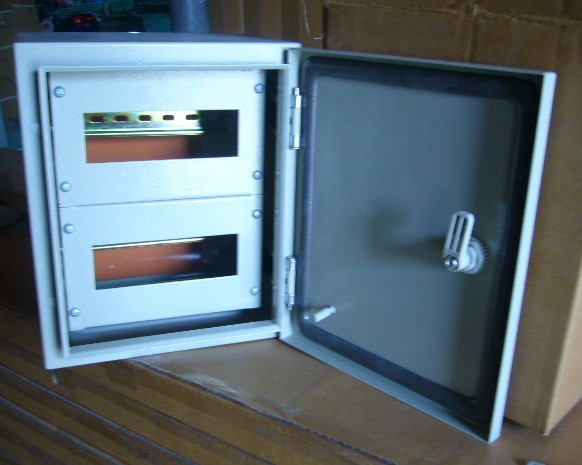

Chassis Type Distribution Box Enclosure / Electrical Cabinet

Prod Model:	CE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Treatment:	Ral7032 or Ral 7035 Powerder Coated
Type:	Distribution Metering Box
Structure:	Protection
Size:	Customizable
Application Range:	Electrical Power System
Shell Protection Grade:	IP65
Brand:	Cowinelec, OEM,ODM

Product Description

1. CONSTRUCTION
Body and door manufactured in 1.2 or 1.5mm sheet steel.
Flat mounting plate in 2mm sheet steel.

2. FINISH
NANTE standard cycle thermosetting epoxypolyester power coating.
Case and door RAL 7032 or RAL 7035 textured finish.
Mounting plate in RAL 2004 smooth finish.

3. PROTECTION DEGREE
IP 65 or IP54 to EN60 529 NEMA 4.

4. PACKING
Boxes are complete with:
--2 zincpassivated rails to be fixed on the door.
--Mounting plate.
--Gland plate and gasket.
--Package with hardware for earth connection and screws to mount all components.
--Locking system with 3mm double bar key.

External			Enclosures
Dimensions(mm)
Height	Width	Depth	Reference	Reference with glazed door
(A)	(B)	(C)
250	200	150	CES1-2520/150	CES1-2520/150 GD
300	250	150	CES1-3025/150	CES1-3025/150 GD
300	250	200	CES1-3025/200	CES1-3025/200 GD
300	300	150	CES1-33/150	CES1-33/150 GD
400	300	200	CES1-43/200	CES1-43/200 GD
400	300	150	CES1-43/150	CES1-43/150 GD
400	300	200	CES1-43/200	CES1-43/200 GD
400	400	200	CES1-44/200	CES1-44/200 GD
400	600	250	CES1-46/250	CES1-46/250 GD
400	600	300	CES1-46/300	CES1-46/300 GD
500	400	150	CES1-54/150	CES1-54/150 GD
500	400	200	CES1-54/200	CES1-54/200 GD
500	400	250	CES1-54/250	CES1-54/250 GD
500	500	250	CES1-55/250	CES1-55/250 GD
600	500	250	CES1-65/250	CES1-65/250 GD
600	400	150	CES1-64/150	CES1-64/150 GD
600	400	200	CES1-64/200	CES1-64/200 GD
600	400	250	CES1-64/250	CES1-64/250 GD
600	500	150	CES1-65/150	CES1-65/150 GD
600	500	200	CES1-65/200	CES1-65/200 GD
600	500	250	CES1-65/250	CES1-65/250 GD
600	600	250	CES1-66/250	CES1-66/250 GD
700	600	300	CES1-76/300	CES1-76/300 GD
700	500	200	CES1-75/300	CES1-75/300 GD
800	600	200	CES1-86/200	CES1-86/200 GD
800	600	250	CES1-86/250	CES1-86/250 GD
800	600	300	CES1-86/300	CES1-86/300 GD
800	800	200	CES1-88/200	CES1-88/200 GD
800	800	300	CES1-88/300	CES1-88/300 GD
1000	600	250	CES1-106/250	CES1-106/250 GD
1000	600	300	CES1-106/300	CES1-106/300 GD
1000	800	250	CES1-108/250	CES1-108/250 GD
1000	800	300	CES1-108/300	CES1-108/300 GD
1000	1000	300	CES1-1010/300	CES1-1010/300 GD
1200	800	300	CES1-128/300	CES1-128/300 GD
1200	1000	300	CES1-1210/300	CES1-1210/300 GD


*IP65 or IP54 Board
*Multipole earthing points, RAL7032 or RAL 7035 Powerder coated
*One door, two door, or inner door. Or fix with chassis
*Includes aluzince steel mounting plate/powder coated plate
*Nice seal
*any size is avilable

JUNTA DE ESTANQUEIDAD Junta de poliuretano para una mayor fiabilidad y una estanqueidad perfecta del armario. IP 65 (o IP 54 con placa Cabstop)

Este armario, se entrega listo para su uso equipado con una placa de montaje ciega; Se puede instalar directamente o equiparlo con diversos accesorios para una mayor rapidez en la instalació N: Placas Cabstop para optimizar la entrada de los cables, placas perforadas para simplificar la fijació N de la aparamenta dentro del armario o chasis para la integració N perfecta de los dispositivos modulares.

Gracias a su estanqueidad (IP 65) y robustez, los armarios se pueden instalar en una gran variedad de entornos, tanto en ambientes industriales como en el sector terciario: Almacenes, aparcamientos exteriores, campings, centros comerciales, etc.

NO.	Height	Width	Deep	Sheet Thickness
	mm	mm	mm	Door/mm	Body/mm	Mounting Plate/mm
1	200	200	150	1.2	1.2	2
2	250	200	150	1.2	1.2	2
3	300	200	150	1.2	1.2	2
4	300	200	200	1.2	1.2	2
5	300	250	150	1.2	1.2	2
6	300	250	200	1.2	1.2	2
7	300	250	250	1.2	1.2	2
8	300	300	150	1.2	1.2	2
9	300	300	200	1.2	1.2	2
10	300	300	250	1.2	1.2	2
11	400	300	150	1.2	1.2	2
12	400	300	200	1.2	1.2	2
13	400	300	250	1.2	1.2	2
14	400	300	300	1.2	1.2	2
15	400	400	150	1.2	1.2	2
16	400	400	200	1.2	1.2	2
17	400	400	250	1.2	1.2	2
18	400	400	300	1.2	1.2	2
19	500	300	150	1.2	1.2	2
20	500	300	200	1.2	1.2	2
21	500	300	250	1.2	1.2	2
22	500	300	300	1.2	1.2	2
23	500	400	150	1.2	1.2	2
24	500	400	200	1.2	1.2	2
25	500	400	250	1.2	1.2	2
26	500	400	300	1.2	1.2	2
27	500	500	150	1.2	1.2	2
28	500	500	200	1.2	1.2	2
29	500	500	250	1.2	1.2	2
30	500	500	300	1.2	1.2	2
31	600	400	150	1.2	1.2	2
32	600	400	200	1.2	1.2	2
33	600	400	250	1.2	1.2	2
34	600	400	300	1.2	1.2	2
35	600	500	150	1.2	1.2	2
36	600	500	200	1.2	1.2	2
37	600	500	250	1.2	1.2	2
38	600	500	300	1.2	1.2	2
39	600	600	150	1.2	1.2	2
40	600	600	200	1.2	1.2	2
41	600	600	250	1.2	1.2	2
42	600	600	300	1.2	1.2	2
43	700	400	200	1.2	1.2	2
44	700	400	300	1.2	1.2	2
45	700	500	150	1.2	1.2	2
46	700	500	200	1.2	1.2	2
47	700	500	250	1.2	1.2	2
48	700	500	300	1.2	1.2	2
49	700	600	200	1.2	1.2	2
50	700	600	250	1.2	1.2	2
51	700	600	300	1.2	1.2	2
52	800	600	200	1.5	1.5	2
53	800	600	250	1.5	1.5	2
54	800	600	300	1.5	1.5	2
55	800	600	400	1.5	1.5	2
56	800	800	200	1.5	1.5	2
57	800	800	250	1.5	1.5	2
58	800	800	300	1.5	1.5	2
59	1000	600	200	1.5	1.5	2
60	1000	600	250	1.5	1.5	2
61	1000	600	300	1.5	1.5	2
62	1000	700	200	1.5	1.5	2
63	1000	800	200	1.5	1.5	2
64	1000	800	250	1.5	1.5	2
65	1000	800	300	1.5	1.5	2
66	1000	800	400	1.5	1.5	2
67	1000	1000	250	1.5	1.5	2
68	1000	1000	300	1.5	1.5	2
69	1200	600	200	1.5	1.5	2
70	1200	600	250	1.5	1.5	2
71	1200	600	300	1.5	1.5	2
72	1200	800	200	1.5	1.5	2
73	1200	800	250	1.5	1.5	2
74	1200	800	300	1.5	1.5	2
75	1200	1000	250	1.5	1.5	2
76	1200	1000	300	1.5	1.5	2
77	1200	1000	400	1.5	1.5	2
78	1200	1200	250	1.5	1.5	2
79	1200	1200	300	1.5	1.5	2
81	1400	600	300	1.5	1.5	2
82	1400	800	300	1.5	1.5	2
83	1400	800	400	1.5	1.5	2
84	1400	1000	300	1.5	1.5	2
85	1400	1000	400	1.5	1.5	2
86	1400	1200	300	1.5	1.5	2
