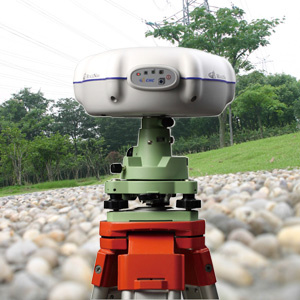

Chc T5 Gnss Rtk GPS

Prod Model:	T5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name And Model:	Chc Rtk GPS X91
Type:	GPS Receiver
Use:	Automotive&Hand Held

Product Description

CHC T5 GNSS RTK GPS:
The T5 GNSS receiver brings extremely affordable and reliable GPS+GLONASS real-time
Centimeter level solution to surveyors without the conventional cost associated with GNSS solutions.
GNSS combines field proven 72 channels GPS+GLONASS Novatel ™ Technology
And state-of-the art RTK solution for either traditional base + rover configuration and RTK networks thanks to its
Flexible GPRS and UHF communication systems.
In a difficult economy situation with higher investment constraints, surveyors are expecting a wider
Range of GNSS solutions. Complementing our X91 GNSS high-end solution,
We have designed the T5 to offer accurate and reliable RTK solution whilst being more affordable.
The T5 is available in various bundled packages to fit end users need for data collection software
And handheld controllers.
Features:
Field proven 72 channel Novatel GNS board (GPS, Glonass and SBAS)
Excellent RTK performances in both network RTK and base + rover configuration.
Communication
1 RS232 serial port
1 high-speed USB
Integrated Bluetooth ® Communications port
Optional GSM/GPRS modem
UHF radio modem with compatibility with Pacific Crest and Satel transmitter for easy integration
Data Format
RTCM2.1, RTCM2.3, RTCM3.0, CMR, RTCA, Input and Output
NMEA 0183 outputs, GSOF outputs
Technical Parameters:

RTK
Horizontal:	+(10mm+1ppm)RMS
Vertical:	+(20mm+1ppm)RMS
Initializing Time:	10S
Initialization Reliability:	Typical>99.9%
Static
Horizontal:	+5mm+1ppm)RMS
Vertical:	+(19mm+2ppm)RMS
Physical Reference
Size (HXD):	84mmX190mmX200mm
Weight:	1.4Kg (With Battery)
Electronic Reference
Power Consumption:	2.8W
Battery Volume:	2200mAh
Battery Life:	8 Hours (Static) 4.5 Hours (RTK) 1000 Recharges
External Power:	9-18 VDC
Environment
Working Temperature:	-30 - +65
Storage Temperature:	-40 -+75
Humidity:	100% condensation
Waterproof and Dustproof:	IP67, protected from temporary immersion to depth of 1 meter, floating.
Shock and Vibration:	Survive from 2 meters drop onto concretes
Characteristics
Buttons and Display:	2 buttons/4 LED lights
I/O:	RS232, High-speed USB, Bluetooth
Channel:	72 Channels
Datalink
Power (UHF):	1W-20W Adjustable
Band Width:	410-430 MHz / 430-450 MHz / 450-470 MHz
