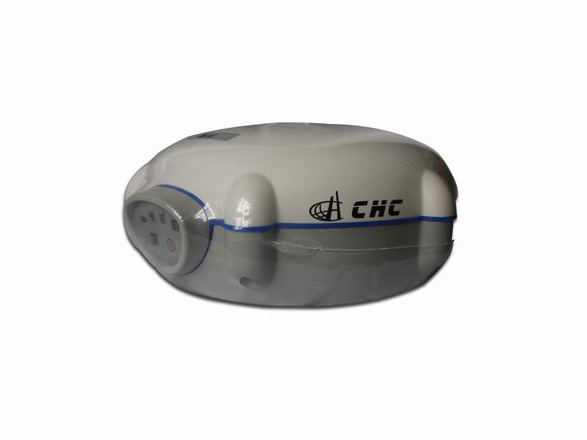

CHC X90 RTK Gnss GPS

Name: CHC X90 RTK Gnss GPS
Brand: all-electronics-online.com
SKU: 725328945
Availability: InStock
Rating: 4.5 (34 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	X90
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name And Model:	Chc Rtk GPS X91
Type:	GPS Receiver
Use:	Automotive&Hand Held

Product Description

CHC X90 RTK GNSS GPS

Description

X90GNSS Receiver combines a dual-frequency GNSS receiver,
GNSS antenna, UHF datalink, GPRS Module (Optional), Bluetooth® And power
Source into a single compact unit that makes work more efficient and more convenient.
The built-in Bluetooth® Wireless technology leaves the cable-control in the past.
And the 64 flash memory stores 576 hours data for static data collection
(6 Satellites and 15 seconds data sampling rate) with 10 years data storage without power support.
Features:
Build in Bluetooth® , cable free.
Compact and easy mounting
GPRS Modem inside (Optional)
1W UHF internal transmitter for Base (Optional)
Zero Phase Center Antenna Optimized algorithm
Multi-path correction
Minimum tracking threshold
Unique Auto Base function
Data Format
RTCM2.1, RTCM 2.3, RTCM 3.0, CMR, CMR+, input and output
NMEA0183 outputs, GSOF outputs
RINEX and HCN outputs for GPS raw data
Technical Parameters

Horizontal:	+(10mm+1ppm) RMS
Vertical:	+(20mm+1ppm) RMS
Initializing Time:	10S
Initialization Reliability:	Typical >99.9%
Static
Horizontal:	+(5mm+1ppm) RMS
Vertical:	+(10mm+2ppm) RMS
Physical Reference
Size (HXLXW):	84mmX190mmX200mm
Weight:	1.4Kg (With Battery)
Electrical Reference
Power Consumption:	2.8W
Battery Volume:	2200mAh
Battery Life:	8 Hours (Static) 4.5 Hours (RTK) 1000 Recharges
External Power:	9-18VDC
Environment
Working Temperature:	-30 C- +65 C
Storage Temperature:	-40 C- +75 C
Humidity:	100% condensation
Waterproof and Dustproof:	IP67, protected from temporary immersion to depth of 1 meter, floating.
Shock and Vibration:	Survive from 2 meters drop onto concretes
Characteristics
Buttons and Display:	2 buttons/4 LED lights
I/O:	RS232, USB, Bluetooth®
Channel:	72 channels
Datalink
Power (UHF):	1W-20W Adjustable
Band Width:	410-430MHz/430-450MHz/450-470MHz
