Cheap and Fine Quality Face to Face Copy Remote Control Duplicator

Product Description

Use range

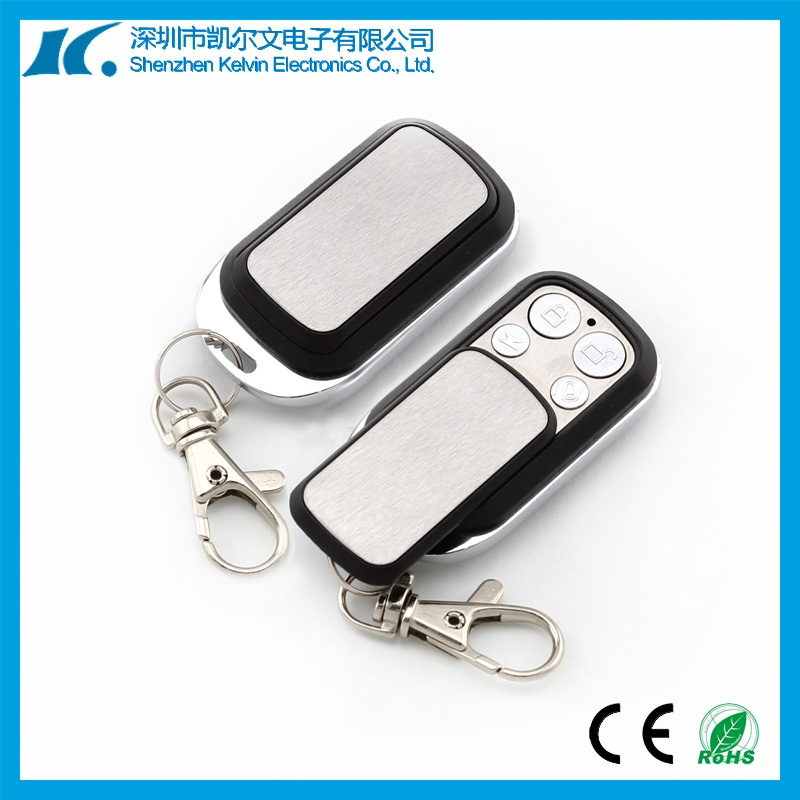

Kelvin 4-Channel RF Wireless Remote Control Duplicator for Cars, Garage Doors , Gates doors, Alarm systems etc. Fixed frequency (433.92mhz or 315mhz) for copying 99.99% common fixed and learning code remote controls.

Face to face copy the functions of your original remote by this 4-channel RF remote control duplicator with code learning functions and you'll always have a back up.

Duplicate Your Existing Remote Controllers:

1.          Vehicle central locking systems
2.          Garage  doors
3.          Electronic  gates
4.          Electrical  appliances
5.          Car  sunroofs
6.          Heating  systems

Advantages

Easy to install and use, the 4 channel remote control system lets you take control of your gadgets,  car and home or garage.

Works with the following remote control modules (please check your existing remote control before ordering): Your remotes also should be Fixed code or Learning code.

2260, 2262,  FP527, HT12D ,  HT12E ,  PT2240,   S026-1 ,S026-2 ,S026-3 ,S026-4, SMC918.... etc

Please note this does not copy rolling code


Methods of operation

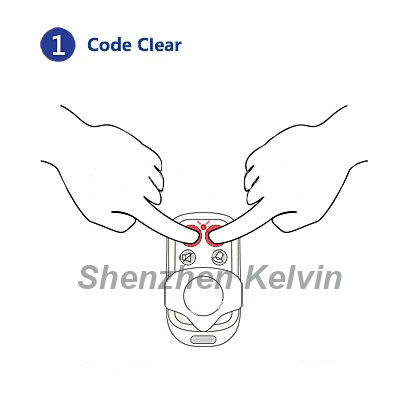

1, Clear out code:

Press A and B at the same time, two seconds later, LED  flashes three times, followed by a continuous fast blinking. Indicates that the remote control code stored was deleted.

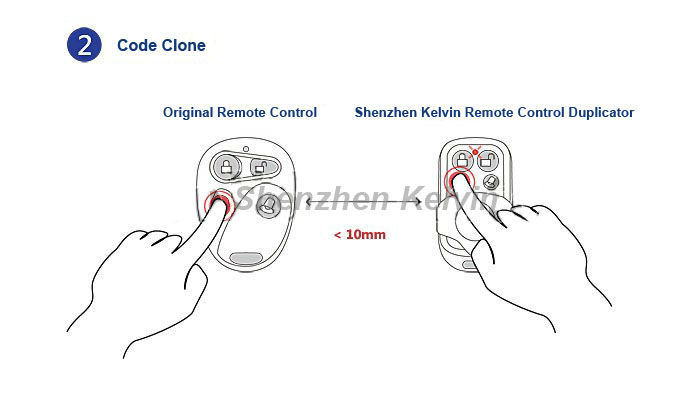

2, Duplicating (learning)

Right Hands press original remote control A, and left hand press remote control duplicator A', 2 remote controls put together as close as possible, while pressing the remote controls two match button,(eg: A-A',B-B') three seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. That's mean successfully copied.

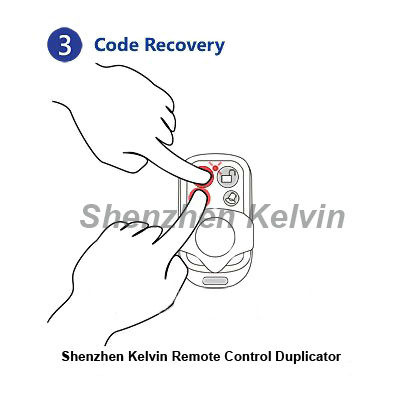

3, Recovery code

Press A and C at same time , 3 seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that the original remote control codes have been restored.

The other way, you can delete all and relearn them again.

Key features

• Prevents loss and replaces your old remote controls
• Self learning remote control
• Used in car alarms, home alarms, panic buttons, garage doors, rolling curtains and more
• Copies most radio frequency fixed code remote controls
• Learning face to face in secon

Encoder IC compatibility list

• PT2240 / PT2242
• 2260 / 2262 / 2264
• EV1527 / FP527
• HT12D / HT12E
• HT600 / HT640 / HT680
• HT6010 / HT6012 / HT6013 / HT6014 / HT6207
• AX5026-1 / AX5026-2 / AX5026-3 / AX5026-4
• AX5326-3 / AX5326-4
• SMC918 / MC145026

NOTICE: Please check your existing remote control with our compatibility list before ordering.

Applications

• Wireless home security system
• Car anti-theft alarm system
• Car keyless entry system
• Car sunroof remote control
• Vehicle central locking system
• Wireless call system
• Home appliance / industrial automation
• Electronic garage door / gate opener
• Remote toy control
• Remote fan / lighting control
• Wireless motor-driven curtain
• Heating systems
• Wire elimination project

Datasheet

• Antenna type: Internal
• frequency available for volume order
• Frequency synthesizer: SAW resonator for fixed frequency model, with stability better than 75KHz from the center frequency
• Learning mode: Original code is learned automatically, notifying the result through the LED built-in
• Channels: 4
• Color: Black with metallic frame
• Material: ABS / Metallic ABS
• Button number: 4

Power and battery

• Battery type: 12V 27A Alkaline Battery
• Battery life: 1 year (typical)

Environmental requirements

• Operating temperature: -4° to 122° F (-20° to 50° C)
• Relative humidity: 5% to 95% noncondensing
