Bluetooth car Tracker offers a new level of GPS tracking. The special thing of this tracker is that can be used for
a quick and convenient operation , and a complete protection and motoring to your cars.
What you need is to make a click in the tracking app, and then complete connectivty with Bluetooth is done, no
need complicate operation or commands. In this modes, it allows you ability to do full controls to your cars,
include engine block, car door lock / unlock, allover detection to car status, you will get notify for any change
of the cars.
What is more,customization of Bluetooth car tracker is available, your special feature will be added to it.
This product is highly recommended to use in fleet management and car security, like logistic company, taxi,
car rental company, private cars. etc.
Features:GPS/GPRS live tracking
Living location report
LBS Tracking
Track by time/ distance interval
Google map link inquiry
Engine cut remotely
SOS emergency alert
Geo-fence alert
Movement alert
Speeding alert
External power cut alert
Door open alert
Engine on alert
Shaking alert
Trunk open alert
Connect with car original alarm
Arm/Disarm by Bluetooth, SMS
Car door lock/unlock by Bluetooth, SMS
Engine block by Bluetooth
Vehicle info setting and inquiry
Vehicle maintenance reminding
Speed limitation
Fuel monitoring (option)
Working time setting
Mileage calculation & setting
Engine detecting and report
Car door status detecting
Trunk status detecting
SIM balance inquiry
Firmware update OTA
Data storing and exporting (option, SD card)
Voice monitoring,3 listening No.s (option,MIC)
2 ways communication (Option, speaker)
3 Admin No.s setting for management
Driver Identify (option)
Car control by RFID (Option)
Dual photograph mode ( MMS & online, option)
Take photo by time interval (option)
Take photo when alarm active (option)

Technicial Specification
Power supply | +9V - +35V / 1.5A |
Backup Battery | 550mAh |
Dimension | 60mmx85mmx30mm |
Weight | 145g |
Operating temperature | -20° to 55° C |
Humidity | 5% to 95% Non-condensing |
Frequency | GSM850/900/1800/1900Mhz |
GPS Chipset | latest GPS SIRF-Star III chipset |
GPS Sensitivity | -158Db |
GPS Frequency | L1, 1575.42 MHz |
C/A Code | 1.023 MHz chip rate |
Channels | 20 channel all-in-view tracking |
Position | Accuracy 10 m, 2D RMS |
Velocity | Accuracy 0.1 m/s |
Time Accuracy | 1 us synchronized to GPS time |
Default datum | WGS-84 |
Reacquisition | 0.1 sec., average |
Hot start | <1 sec., average |
Warm start | <36 sec., average |
Cold start | 42 sec., average |
Altitude Limit | 18,000 m (60,000 feet) max. |
Velocity Limit | 515 m/second (1000 knots) max. |

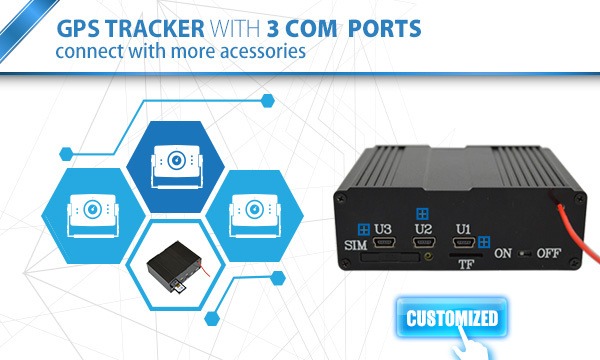

Interface | 5 inputs, 5 outputs, 2 AD, 3 USB ports |
LED | 2 LED lights to show working status |
GPS tracking software

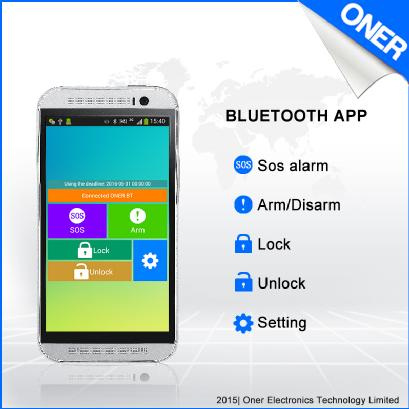

1) Free Bluetooth APP for GPS Tracking, track and control all the fleet vehicles at the same time

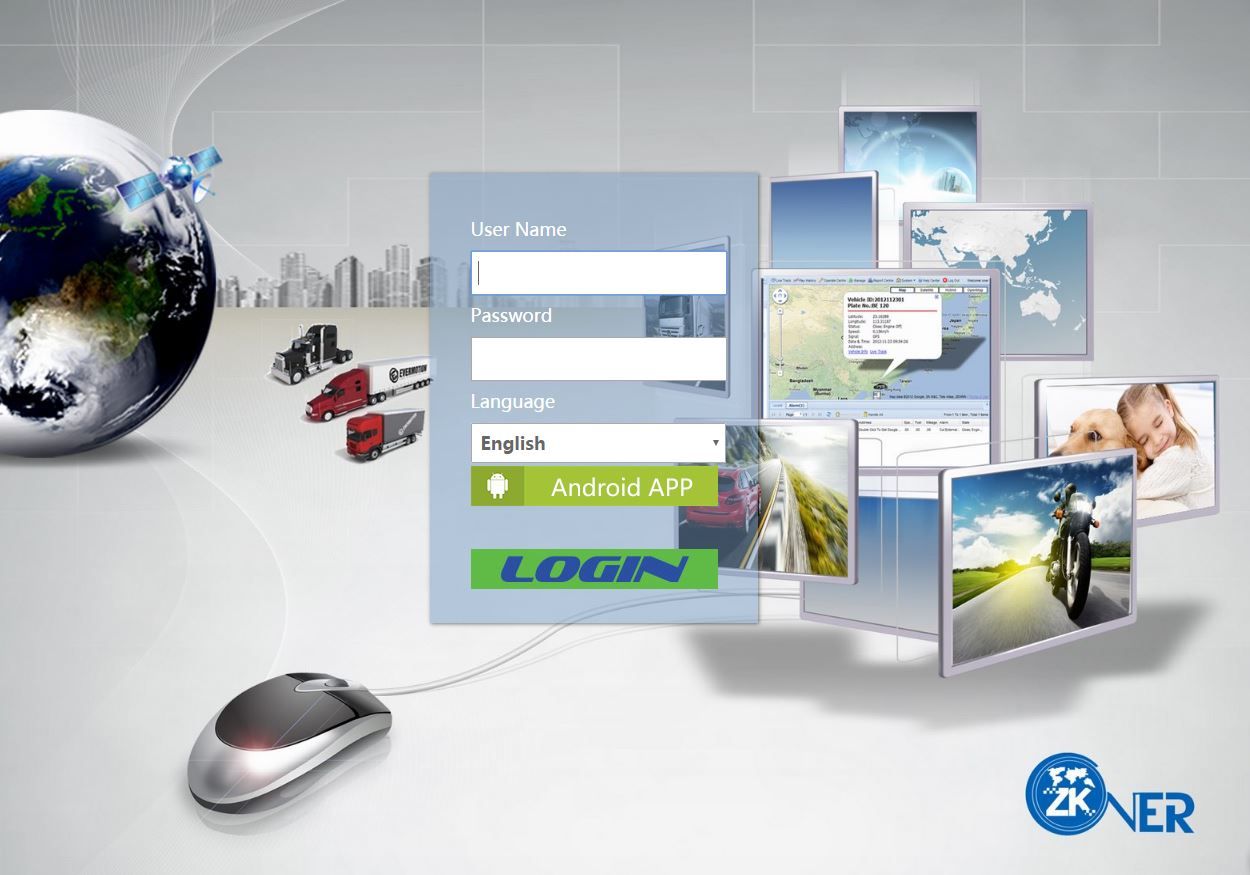

2) Web-based GPS tracking platform.

Packing Contents(Standard)
1. GPS Vehicle Tracker
2. Relay
3. GSM Antenna
4. GPS Antenna
5. Power I/O Cable
6. Bluetooth Receiver
