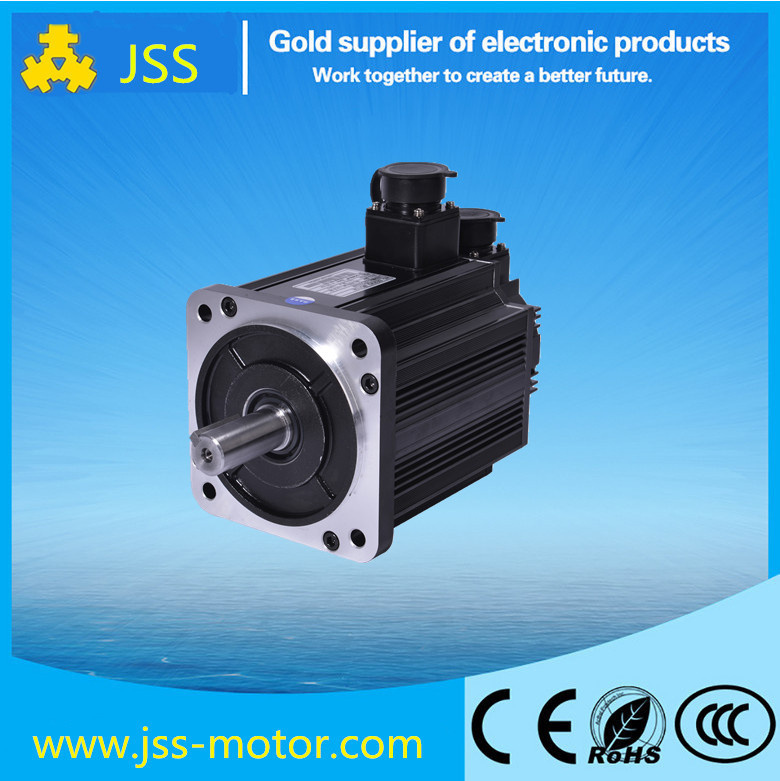

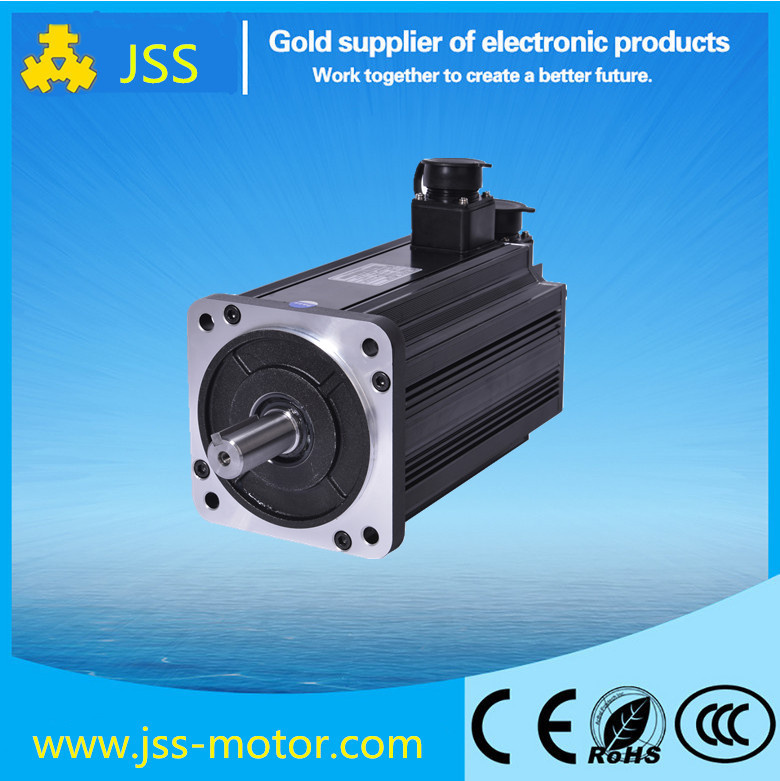

Cheap Price 1kw 220V AC Servo Motor High Torque Low Rpm with Driver for CNC Machine

Cheap Price 1kw 220V AC Servo Motor High Torque Low Rpm with Driver for CNC Machine
Price: US $ 290-380/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: 130DNMA1-0001DBAM
Rated Speed: 1000rpm 2000rpm 3000rpm
Rated Power: 1000W
Rated Torque: 5.73-9.55n.M
Input Voltage: 220VAC
Function: Control
Number Of Stator: Single/Three Phase
Certification: Ce
Brand: Jss

Product Description


B1 series servo motor and driver

Main features

1. Faster
   Shortened positioning time
   Quick instruction tracking
   Response frequency up to 1KHz bandwidth
   Built-in RS-485 communication. EtherCAT under development.

2. More Reliable
   3 times overload
   Grade 2 Motch Filter
   Regenerative functions
   Built-in dynamic brakes(optional)

3. More Accurate
   High resolution encoders up to 20bit (1,048,576 ppr)
   Load inertia detection
   Fully closed-loop function

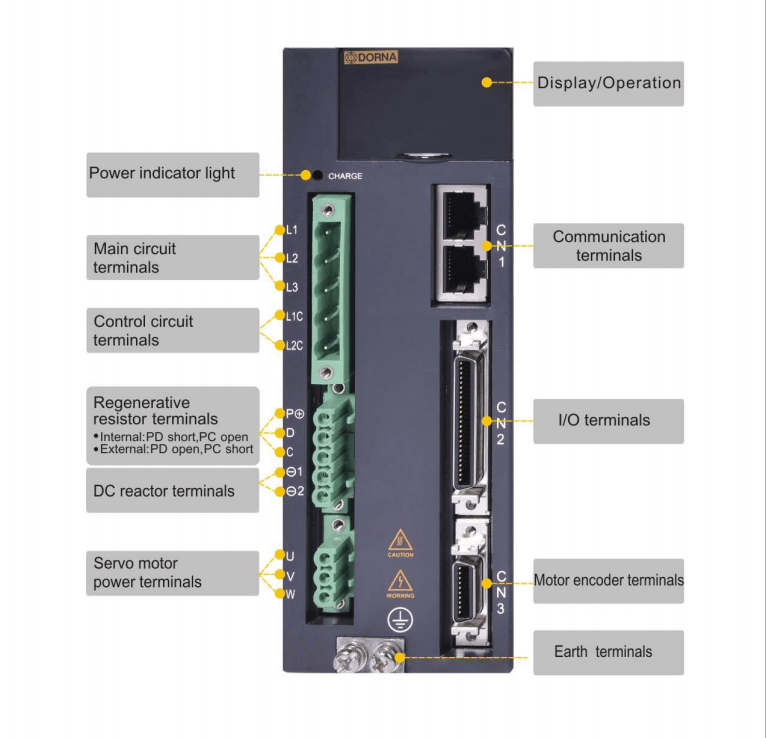

B1 Power Servo Driver
Model No.
Flange Servo Motor Model No.Servo Motor Spec.
Speed (r/min)Torque
(N·M)
B1 Series
220V
100WEPS-B1-0D10AA-00004040DNMA1-0D10DIAK30000.32
200WEPS-B1-0D20AA-00006060DNMA1-0D20DBAK30000.64
400WEPS-B1-0D40AA-00006060DNMA1-0D40DBAK30001.27
0.6KWEPS-B1-0D60AA-0000130130DNMA1-0D60ABAM-HJ10005.73
750WEPS-B1-0D75AA-00008080DNMA1-0D75CBAK20003.58
750WEPS-B1-0D75AA-00008080DNMA1-0D75DBAK30002.39
750WEPS-B1-0D75AA-00009090DNMA1-0D75DBAK30002.39
750WEPS-B1-0D75AA-00009090DNMA1-0D75CKAK20003.58
1KWEPS-B1-0001AA-00008080DNMA1-0001DBAK30003.18
1KWEPS-B1-0001AA-00009090DNMA1-0001DBAK30003.18
1KWEPS-B1-0001AA-0000130130DNMA1-0001ABAM10009.55
1KWEPS-B1-0001AA-0000130130DNMA1-0001BBAM15006.37
1KWEPS-B1-0001AA-0000130130DNMA1-0001CBAM20004.77
1KWEPS-B1-0001AA-0000130130DNMA1-0001DBAM30003.18
1.2KWEPS-B1-0001AA-0000130130DNMA1-01D2CBAM20005.73
1.5KWEPS-B1-01D5AA-0000130130DNMA1-01D5ABAM100014.33
1.5KWEPS-B1-01D5AA-0000130130DNMA1-01D5BBAM15009.55
1.5KWEPS-B1-01D5AA-0000130130DNMA1-01D5CBAM20007.16
1.5KWEPS-B1-01D5AA-0000130130DNMA1-01D5DBAM30004.77
1.8KWEPS-B1-01D8AA-0000130130DNMA1-01D8DBAM30005.73
2KWEPS-B1-02D0AA-0000130130DNMA1-0002BBAM150012.73
2KWEPS-B1-02D0AA-0000130130DNMA1-0002CBAM20009.55
2.7KWEPS-B1-02D7AA-0000180180DNA-27BB1AMS150017.2
3KWEPS-B1-0003AA-0000130130DNMA1-0003CBAM200014.33
3KWEPS-B1-0003AA-0000130130DNMA1-0003DBAM30009.55
3KWEPS-B1-0003AA-0000142142DNA-30BB1AMS150019.1
3KWEPS-B1-0003AA-0000142142DNA-30CB1AMS200014.33
3KWEPS-B1-0003AA-0000180180DNA-30AB1AMS100028.6
3KWEPS-B1-0003AA-0000180180DNA-30BB1AMS150019.1
3KWEPS-B1-0003AA-0000180180DNA-30CB1AMS200014.33
3.7KWEPS-B1-03D7AA-0000180180DNA-37AB1AMS100035
4KWEPS-B1-04D0AA-0000130130DNMA1-0004DBAM300012.73
4KWEPS-B1-04D0AA-0000142142DNA-40BB1AMS150025.5
4KWEPS-B1-04D0AA-0000180180DNA-40BB1AMS150025.5
4KWEPS-B1-04D0AA-0000180180DNA-40CB1AMS200019.1
4.5KWEPS-B1-04D5AA-0000130130DNMA1-04D5DBAM300014.33
4.5KWEPS-B1-04D5AA-0000180180DNA-45BB1AMS150028.6
4.5KWEPS-B1-04D5AA-0000180180DNA-45CB1AMS200021.5
5KWEPS-B1-05D0AA-0000180180DNA-50CB1AMS200023.8
5.5KWEPS-B1-05D5AA-0000180180DNA-55BB1AMS150035




Widely application
    Our servo motors are widely used in CNC machine tools, textile machines, packaging machines, printing machines, food-making and pharmaceutical equipment, carving machines, spring machines, plastic machines, manipulators & robotics etc.



Shipping Methods

Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.





FAQ:

1.Q:Can I get some samples first?
   A:Sure, we are honored to offer you samples for your check.

2.Q:Do you have the products in stock?
   A:Our products are manufactured according to your order except the normal products.

3.Q:What's the delivery time?
   A:It usually takes about 7 working days,but the exact delivery time might be different for different
order or at different time.

4.Q: How does your factory do regarding quality control?
   A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.

5.Q:What's your warranty terms?
   A:  We offer different warranty terms for different products. Please contact with us for details.


If you are interested in any models, pls feel free to contact us for more details.






Jinsanshi Mechatronics co. Ltd. Is a comprehensive company which specilizes in producing and researching stepper and motor driver. Our company is located in Changzhou city, Jiangsu province, China. We own an excellent group with rich experience in manufacturing and researching. In this field, we have rich experience, so that we can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.

Our products are widely applied in printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, NC machine tool and other automatic controlling system. Our main products include stepper motor from NEMA 8 to NEMA 42, geared stepper motors, lead screw motors, stepper motor with brake, drivers for all the motors. We also produce closed loop steppers and drivers.

On the way of development, the principle of "efficiency is the life, quality is the fundamental" is always insisted by Jinsanshi people. We take the market as the guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and aboard in the near future.
