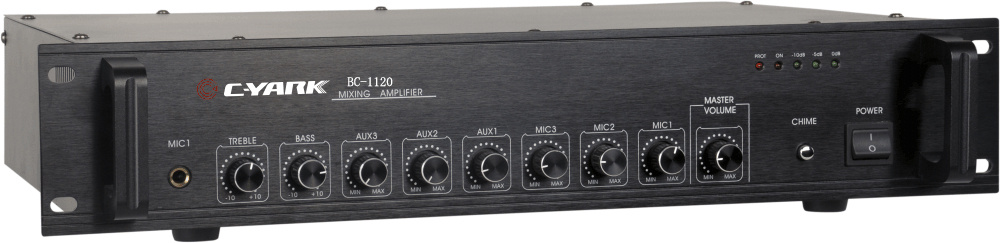

| Prod Model: |
BC-1120 |
| OEM/ODM: |
Accepted |
| Warranty: |
2 Years |
| Certification: |
Ce, 3c, CAS, RoHS |
| Panel: |
Iron Panel |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
AB |
| Type: |
PA Amplifier |
| Used For: |
Hotel, School, Airport, Market, Church, Subway |
| Usage: |
Public Address System |
| Output Number: |
3+1 |
| Sound Channel: |
1.0 |
Product Description
Public Address Amplifier For Poland Market
Specifications
| Model | BC-1106 | BC-1110 | BC-1115 | BC-1120 |
| Rater Power | 60W | 100W | 150W | 200W |
| Output Model | 70V -100V /4-16 ohms | 70V 100V /4-16 ohms | 70V 100V /4-16 ohms | 70V 100V /4-16 ohms |
| Input Sensitivity | 500mv | 500mv | 500mv | 500mv |
| S/n Radio | >85db | >85db | >85db | >85db |
| Frequency Response | 80Hz~15KHz±3db | 80Hz~15KHz±3db | 80Hz~15KHz±3db | 80Hz~15KHz±3db |
| Power | AC 220V~240V/50Hz | AC 220V~240V/50Hz | AC 220V~240V/50Hz | AC 220V~240V/50Hz |
| Dimension(mm) | 485*370*90mm | 485*370*90mm | 485*370*90mm | 485*370*90mm |
| Model | BC-1125 | BC-1135 | BC-1145 |
| Rater Power | 280W | 380W | 480W |
| Output Model | 70V -100V /4-16 ohms | 70V 100V /4-16 ohms | 70V 100V /4-16 ohms |
| Input Sensitivity | 500mv | 500mv | 500mv |
| S/n Radio | >85db | >85db | >85db |
| Frequency Response | 80Hz~15KHz±3db | 80Hz~15KHz±3db | 80Hz~15KHz±3db |
| Power | AC 220V~240V/50Hz | AC 220V~240V/50Hz | AC 220V~240V/50Hz |
| Dimension(mm) | 485*370*90mm | 485*390*90mm | 485*390*90mm |
Descriptions
| 2U rack mount design with high quality aluminium alloy panel |
| The wave design on left and right side make the appearance more fashion |
| Mute function: Input has priority level ( Front MIC 1 overrides all other inputs). |
| Applying newest separation circuit design for convenient repairing and maintenance. |
| Output module has a cover to prevent it from damaging by other machines. |
| Excellent device of radiator cooling fan that ensures working effectively. |
| The perforated back panel and a high-speed fan keep the amp cool. |
Features:| Power: 60W/100W/150W/200W/250W/350W/480W |
| Input: 3 AUX inputs, 3 MIC inputs( MIC 1 has Mute function for emergency input) |
| Output: 1 AUX output |
| Output Mode: 70V/100V ;4-16 |
| Master volume control |
| Treble and bass control |
| Remote controller |
| Cooling fan and heat sink for over-heat protection |
| Power transistor: Samsung brand |
| Short-circuit/Over-load/Over heat protection |
