| Prod Model: |

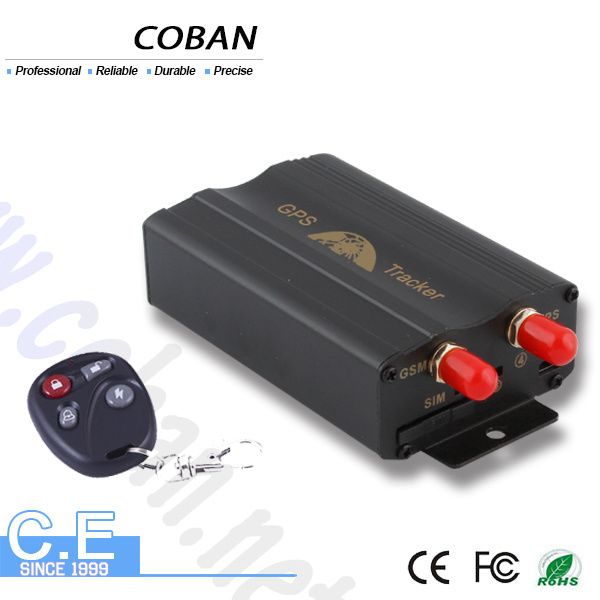

gps tracker for vehicle (coban TK103A/B) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
83mm*54mm*26mm |
| Weight: |
120g |
| GSM Network: |
850/900/1800/1900MHz |
| Highsensitivity GPS Tracking Device: |
External GPS&GSM Antenna |
| Car Thefts Alarm: |
Engine Shut, Acc/Door/Shock Alarm, Over Speed Alarm |
| Applied For: |
12-24V Cars/Vehicles/Fleet Management |
| Sensitive: |
-159dBm |
| Certificate: |
Ce, CCC, Design Patent |
| Delivery Time: |
Within 3 Work Days |
| Warranty: |
1 Year |
| Type: |
GPS Tracker |
| Port Number: |
Multiplex Multi-purpose Channel |
| Carrier Frequency: |
Dual-Frequency |
| Use: |
GPS Tracker |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Model: |
Automotive Tk103 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description
cheap price gps tracker for vehicle with google map tracking(coban TK103A/B)Model: GPS103A/B
This tracker is a newly product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
GPS103A/B Functions:1. SOS button.
2. Geo-fence, movement alarm, overspeed alarm, low battery alarm.
3. Arm: Door alarm, ACC alarm, Shock sensor Alarm.
4. Stop and resume oil/engine by SMS remotely.5. Save GPRS mode, can save your GPRS very efficiently.
6. LBS (Location based service )
7. Authorized number added and deleted function
8. Support hidden alarm and monitor function
9. SMS tracking by calling with google map link.
10. Get Absolute street address by SMS
11. Free PC based tracking application
Applying directions:All 12-24V cars, vehicle fleet, logistics, vehicle rental
4 tracking solutions:- SMS tracking by calling, return google map link
- Absolute street address by SMS
- web based tracking application www.gpstrackerxy.com
-optional Android IOS app tracking

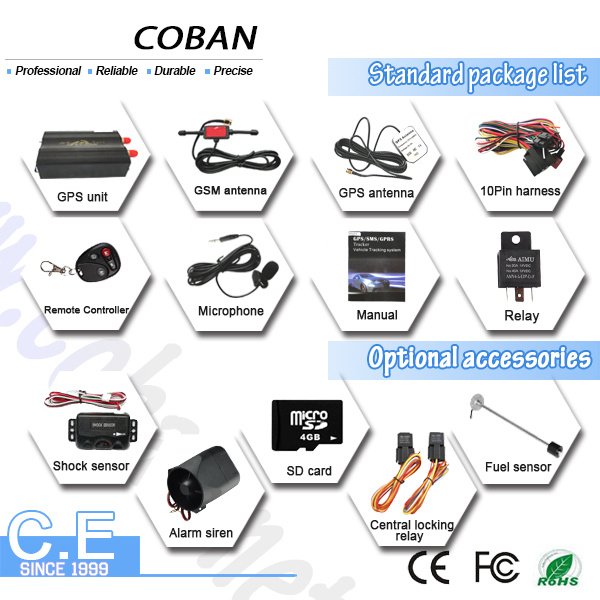

What is in the box:1X GPS unit 103B with a remote controller
1X GPS antenna
1X GSM antenna
1 X MIC 1 X Harness
1X Relay
1 X Manual
Pls contact sales person for optional accessories: Shock sensor, alarm siren.
Technology parameter:| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Our Services
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
OEM&ODM Service
1.Customize logo and brand print on the device
2.Customize box
3.Offer firmware modification service
4. Customize design in bulk order

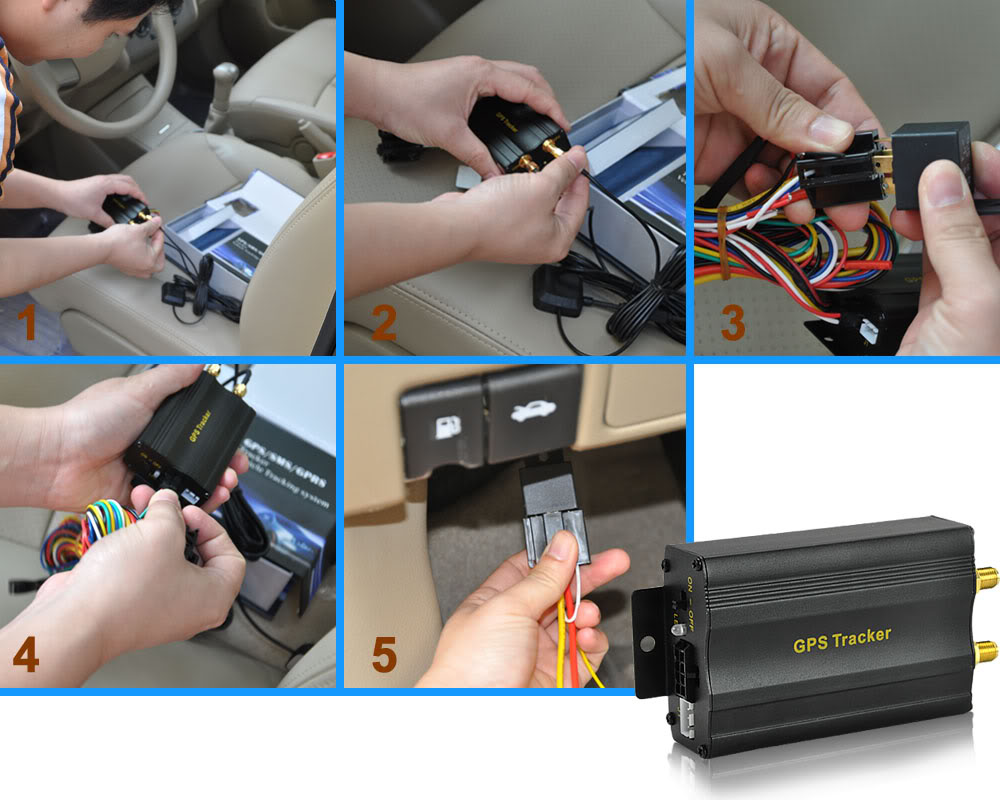

GPS103 installation
FAQ - Frequently Asked QuestionsHow do I make sense of the longitude and latitude data this unit provides?Both Google Maps and Google Earth can easily translate the data into usable visual information.The unit does not pick up a GSM signal and the SMS functions aren't working,What's wrong? A number of things could cause this to happen:1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work2) Make sure there is money left on the SIM card and that it has not expired3) Make sure there is no PIN code associated with the SIM card4) Make sure roaming is enabled on your SIM account if you are in a different countryCan I install the software on multiple computers?No. Each tracker's IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.Ordering from Shenzhen Coban Electronics Co, . Ltd provides you with the following benefits:- Orders processed and shipped within 24-hours- 12 month warranty- In-house QC- Member discounts- Award winning customer support- Quantity order discounts- Worldwide Shipping
