| Prod Model: |
SVC-single phase |
| Input Voltage: |
160V-250V |
| Output Voltage: |
220V |
| Adjusting Time: |
<1s |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Usage: |
SVC |
| Frequency: |
50-60Hz |
| Application Range: |
Computers ,Tst Equipment,Lighting Systems |
| Brand: |
Honle |
Product Description

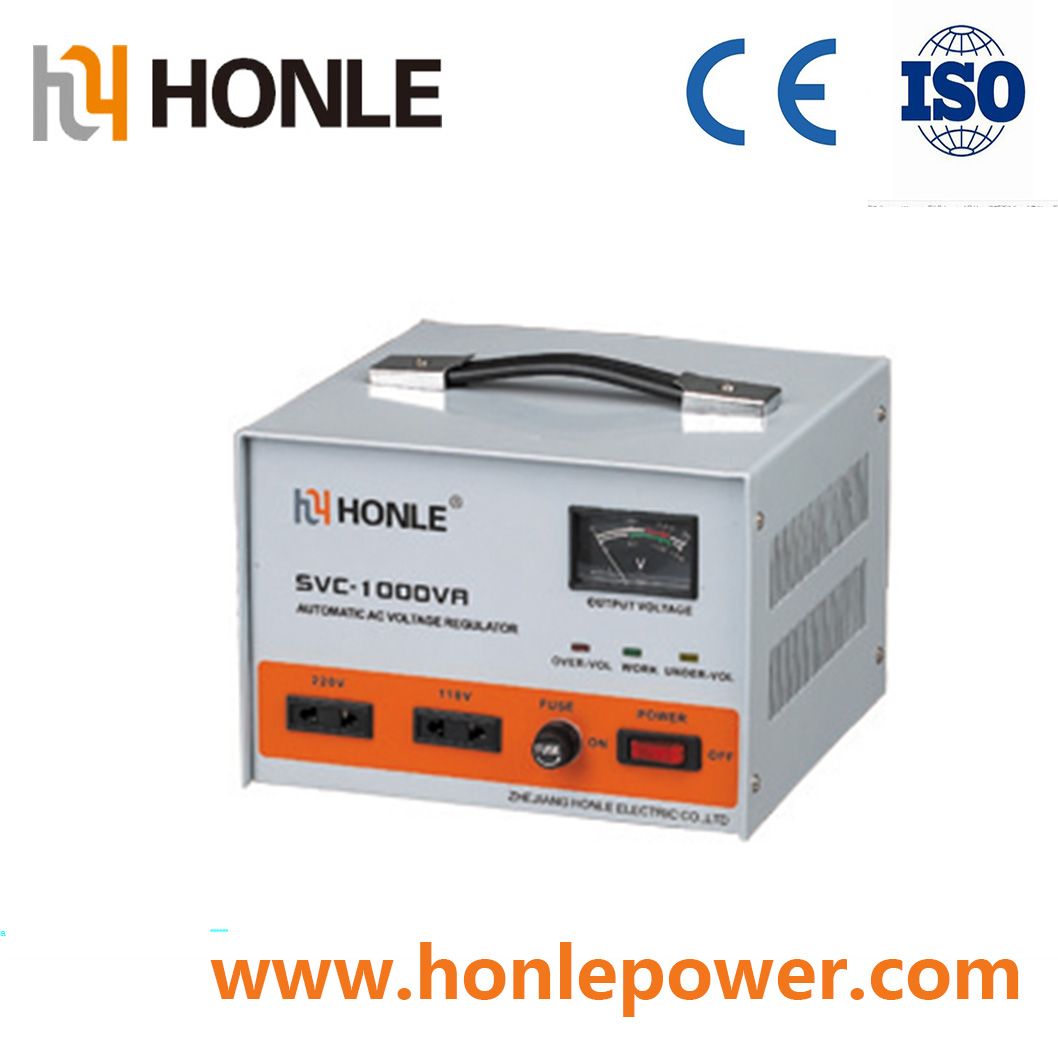

SVC Type Single Phase Full-automatic Voltage Stabilizers
Specifications
SVC type voltage stabilizer
Input voltage 160-250V Phase Single-phase Frequency 50-60HZ Adjusting time <1S
SVC type voltage stabilizers SVC Single-phase high accuracy full automatic AC voltage stabilizers is made of regulator,servo motor,automatic control circuit and so in,When the voltage of the network is not steady or the load varies,the automatic sampling control circuit makes a signal to drive the servomotor to adjust the postion of the carbon brush of the regulator so as to have the output voltage regulated to the rating and to obtain the steady state.This machine has advantages of small volume,light weigh,undistorted waveform,high efficiency,reliabli performance,and time-delay,over-voltage,etc,the series of stabilizers driven,of general type,the indeel boltage stabilized sources which can be widely applied to any occasions requring power to assure the normal operation of yourpower driven equipment. |
Application
Computers ,tst equipment,lighting systems,safety alarm systems,X-ray systems,communication systems,medical equipment,duplicators,stereo sound equipment,color film developing equipment. |
|
Technical Index| Input voltage | 160-250V | | Phase | Single-phase | | Frequency | 50-60HZ | | Adjusting time | <1S(When input voltage has a change of 10%) | | Max of | 0.5KVA 1KVA 1.5KVA 2KVA 3KVA 5KVA 10KVA 15KVA 20KVA 30KVA | | Output current | 2A 4A 6.5A 8A 12A 20A 40A 60A 80A 120A | | Protection over voltage | 245±5V | | Delay | Short Deley3-7 sec long Delay 3-7min | | Ambient temperature | -5∼+40 | | Temperature rise | <60(full load) | | Relative humidity | <90 | | Wave form distortion | No wave form distortion | | Efficiency | >95% | | Insulation resistance | ≥2MΩ |
Specifications and ModelModel | Unit | Package size(cm) | Weight(kg) | 500VA | 4 | 44×25×33 | 4.5 | 1000VA | 4 | 49×28×39 | 5.5 | 2000VA | 2 | 60×36×25 | 10.2 | 3000VA | 2 | 60×38×30 | 12 | 5000VA | 1 | 54×29.5×30.5 | 22.5 | 10000VA | 1 | 34.5×29.5×54 | 35 | 15000VA | 1 | 49.2×41×87 | 45 | 20000VA | 1 | 49.2×41×87 | 75 |
|
FAQ
Q 1. what's the payment terms?
A. We accept LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Q 2. how's the delivery time ?
A. usually it will take about two weeks for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. what kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8.Where is your market?
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 9. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,ISO9001,SGS,Son cap
voltage regulator|voltage regulator|voltage regulator|voltage regulator|voltage regulator|voltage regulator|voltage regulator|voltage regulator|voltage regulator|voltage regulator|voltage regulator|voltage regulator|voltage regulator|voltage regulator|voltage regulator|

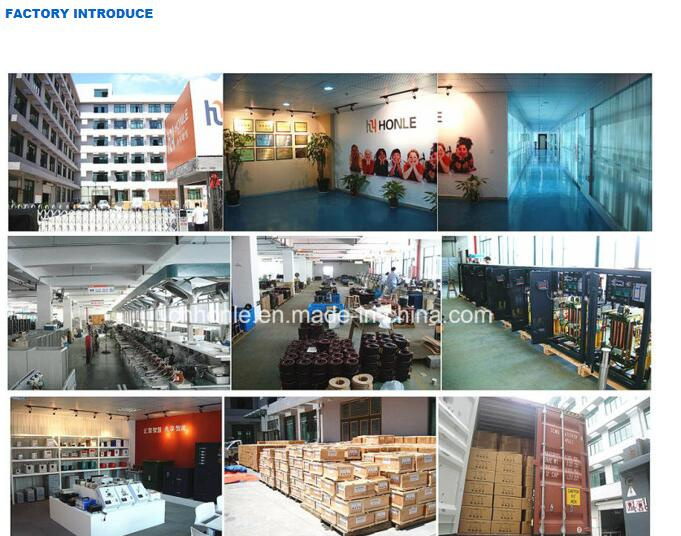

Honle Electric Co., Ltd is the manufacturer specialized in producing industrial electrical products. It has three factories, the first one produces power supply, the second one produce power transformer, the third one produces complete plants and equipment. As a member of China Power Supply Society, since its foundation, the company has been insisting on the theoretic guideline of "science &technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and overseas market.
