Cheap VSD VFD Inverter Variable Speed Drive for Conveyor Belt

Name: Cheap VSD VFD Inverter Variable Speed Drive for Conveyor Belt
Brand: all-electronics-online.com
SKU: 827957165
Availability: InStock
Rating: 4.3 (141 reviews)

Price:	US $ 115/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	M100
Item Name:	AC Electric Motor Speed Control Frequency Converte
Vibration:	Below 0.5g
Operation Temperature:	-10~40 Degree
V/F Curve:	Set V/F Curve at Will
Humidity:	0-95% Relative Humidity (Without Dew)
Keyboard Setting Method:	Press Directly to Set
Communication Control:	RS485
Overload Protection:	Electronic Relay Protection Motor Drive
Torque Control:	Torque Increase Is Settable by Max. 10.0%.
Other Functions:	AVR (Auto Voltage Regulation), Deceleration Stop O
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	V/F Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Brand:	Machtric

Product Description

Cheap Low Cost Mini Size VFD Inverter Variable Speed Drive For Conveyor Belt

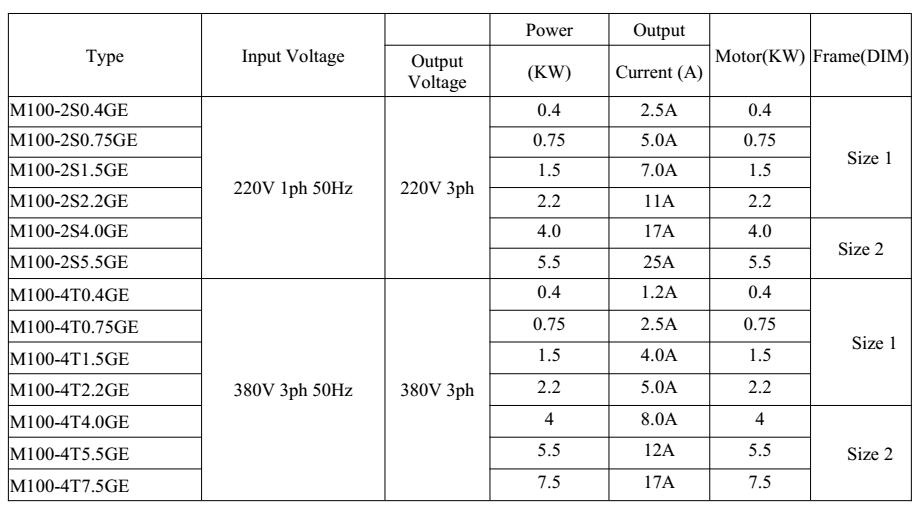

1. Specifications

Type	Input Voltage		Power	Output	Motor(KW)	Frame(DIM)
Type	Input Voltage	Output Voltage	(KW)	Current (A)	Motor(KW)	Frame(DIM)
M100-2S0.4GE	220V 1ph 50Hz	220V 3ph	0.4	2.5A	0.4	Size 1
M100-2S0.75GE			0.75	5.0A	0.75
M100-2S1.5GE			1.5	7.0A	1.5
M100-2S2.2GE			2.2	11A	2.2
M100-2S4.0GE			4.0	17A	4.0	Size 2
M100-2S5.5GE			5.5	25A	5.5	Size 2
M100-4T0.4GE	380V 3ph 50Hz	380V 3ph	0.4	1.2A	0.4	Size 1
M100-4T0.75GE			0.75	2.5A	0.75
M100-4T1.5GE			1.5	4.0A	1.5
M100-4T2.2GE			2.2	5.0A	2.2
M100-4T4.0GE			4	8.0A	4	Size 2
M100-4T5.5GE			5.5	12A	5.5
M100-4T7.5GE			7.5	17A	7.5

2.Brake Unit and Brake Resistor

Inverter		Brake unit		Brake resistor
Voltage	Capacity (KW)	Mode	Dosage	Mode	Standard	Dosage
One Phase 220V	0.4	Option	1	preset	100W/150Ω	1
	0.75	Option	1	preset	100W/150Ω	1
	1.5	Option	1	preset	400W/100Ω	1
	2.2	Option	1	preset	600W/100Ω	1
	4	With/in	1	preset	500W/40Ω	1
	5.5	With/in	1	preset	500W/30Ω	1
Three Phase 380V	0.4	Option	1	preset	100W/750Ω	1
	0.75	Option	1	preset	100W/750Ω	1
	1.5	Option	1	preset	260W/400Ω	1
	2.2	Option	1	preset	260W/250Ω	1
	4	With/in	1	preset	500W/150Ω	1
	5.5	With/in	1	preset	500W/100Ω	1
	7.5	With/in	1	preset	780W/75Ω	1

3 Indicator Lamps
Description of M100 Series Indicator Lamp Status

Indicator lamp	Status	Description
FOR	on	The motor is in forward rotation.
REV	on	The motor is in reverse rotation.
HZ	on	Displaying set frequency or output
A	on	Displaying output current.

4.Label Information:

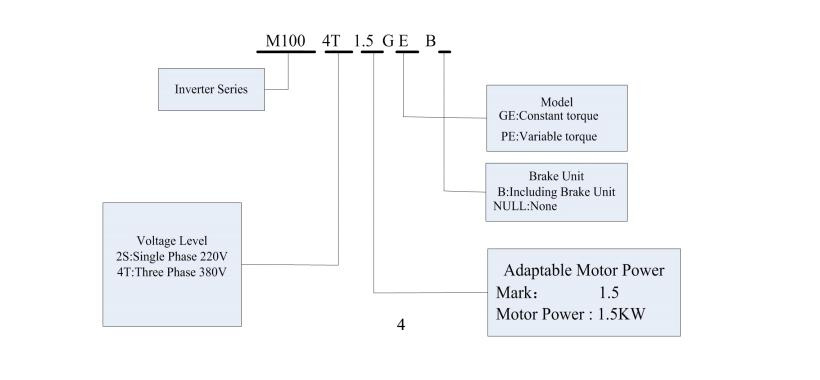

5.Type Difination:

6.Product Specification:

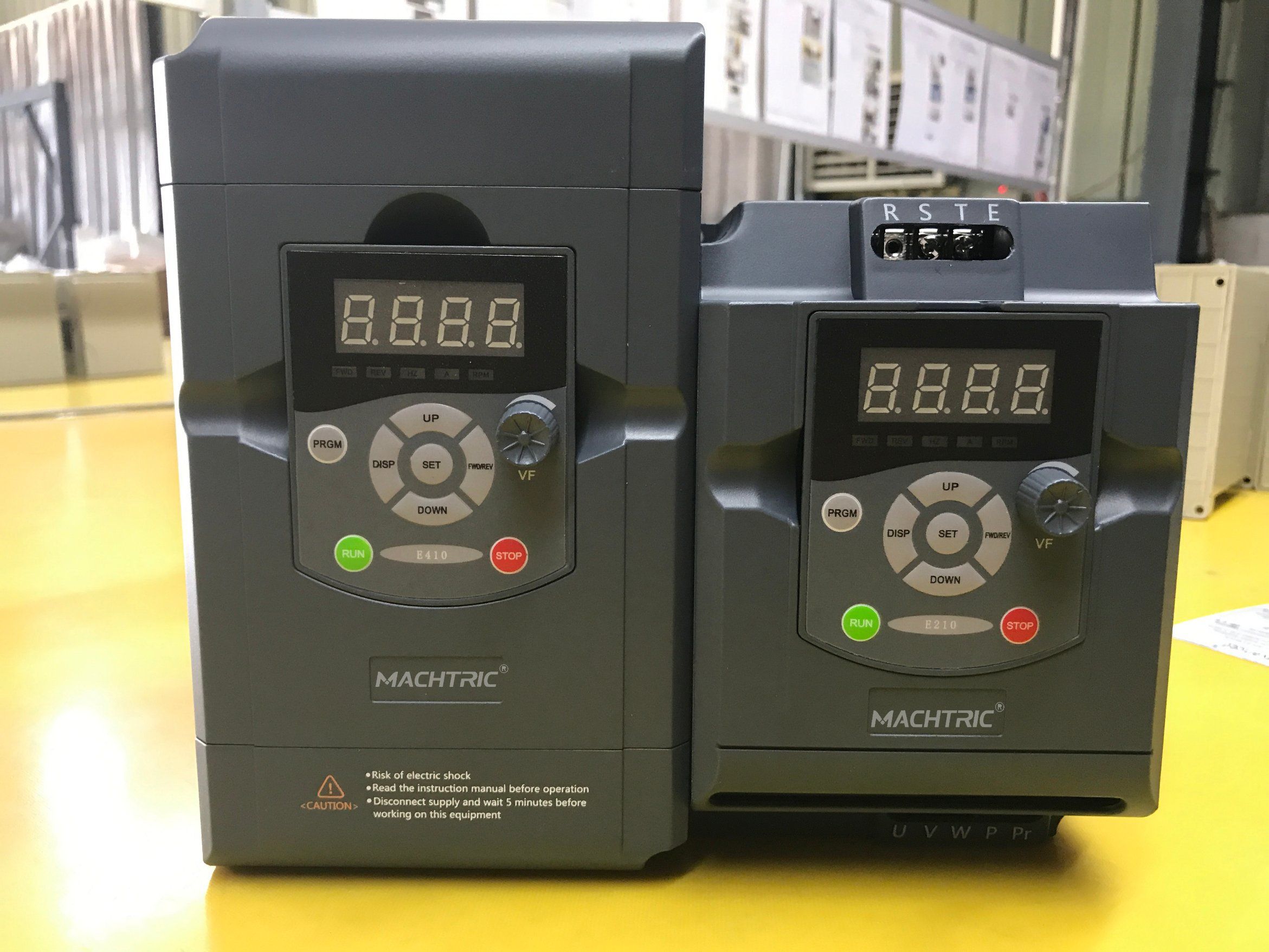

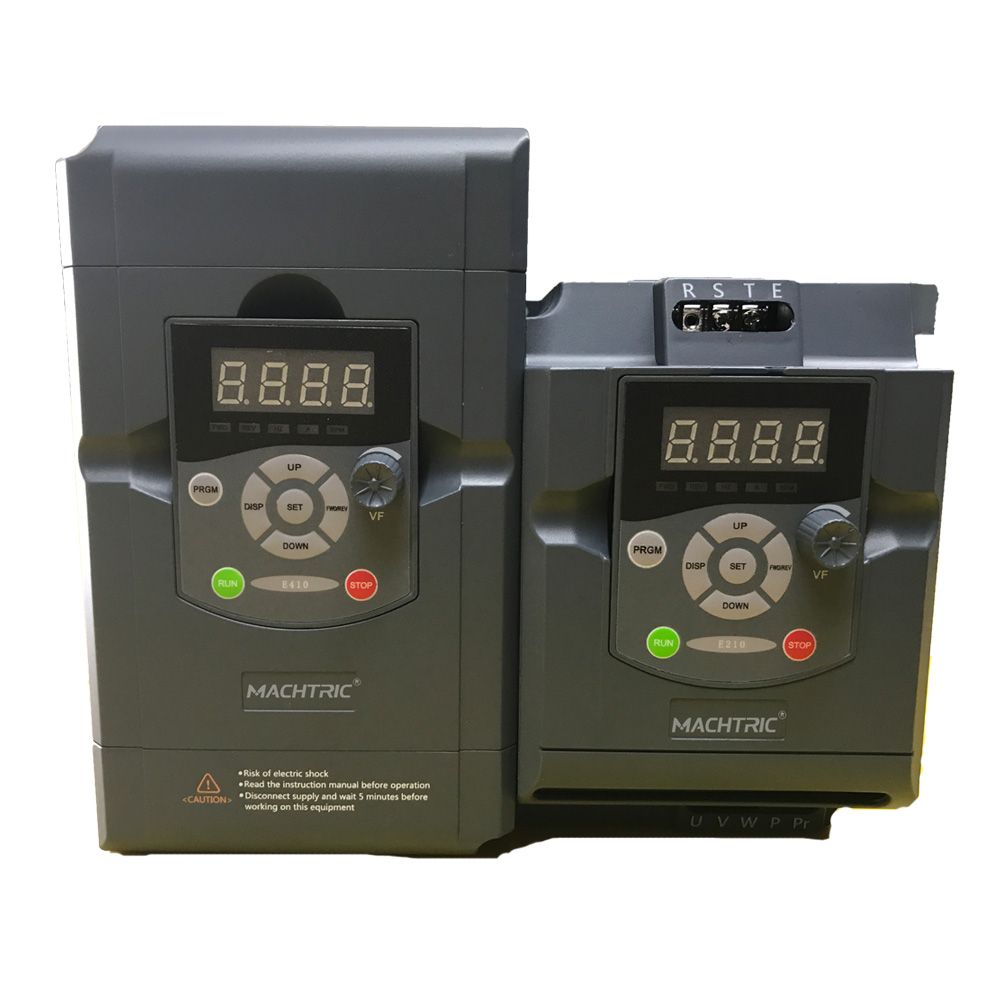

7.Product Show:

8.Contact Us:
