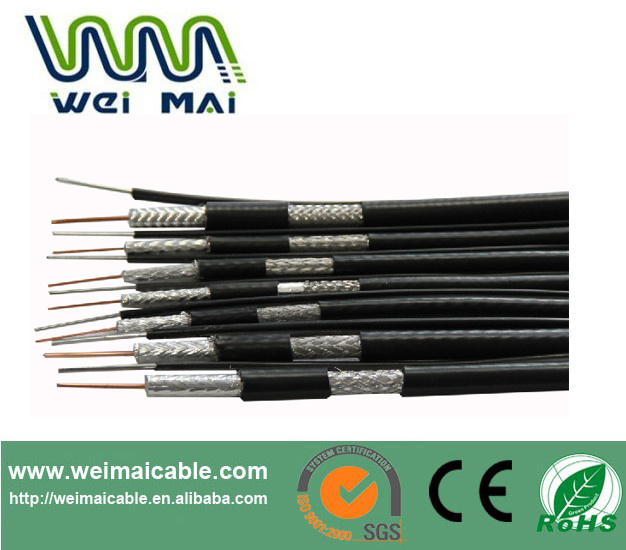

Cheaper Coaxial Cable Rg214 (WMO60)

Cheaper Coaxial Cable Rg214 (WMO60)
Price: US $ 0.04/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 10000/Meter
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Contact Supplier
Showroom Product Company Profile
Prod Model: rg214
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Conductors: 1
Rg214 Coaxial Cable Inner Conductor: 7*0.75bare Copper
Rg214 Coaxial Cable Insulation: 7.25mm Solid PE
Rg214 Coaxial Cable Out Conductor: 95% Bare Copper Braiding
Rg214 Coaxial Cable Jacket: 10.3 PVC
Certification: VDE
Application: Coaxial Cable

Product Description

Specifications
Cheaper rg214 cable
1: CE RoHS Approved
2: Good Quality Low Prices
3: Short delivery time.
Packaging & Delivery
Packaging Detail: RG214 Coaxial Cable 1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll 2) Inner packing: Wooden reel, plastic reel, and paper reel available. 3) Outer packing: Carton box, pull out box, pallet available. 4) Other packing available according to client's request.
Delivery Detail: RG214 Coaxial Cable within 15 days
RG59 QUAD SHIELD
1) Construction

Center Conductor:
 		0.81 + 0.01mm Solid Copper/Copper Clad Steel

Dielectric:
 		3.66 + 0.05mmFoam PE

Shield:
 		Bonded Al Foil

Braid Coverage:
 		60%Al

Shield:
 		Al Foil

Braid Coverage:
 		30%Al

Jacket:
 		6.70 + 0.10mm PVC

Jelly/APD
 		Per Customers Special Requirement

2) Characteristics

Impedance:
 		75 + 3 Ohm

Capacitance:
 		54 + 3pF/m

Velocity of Propagation:
 		85%

Return Loss:
 		20dB min (5-2300MHz)



3) Attenuation




Attenuation
 		[@68 o F. (20 o C.)]

Frequency (MHz)
 		Max. (dB/100 ft.)
 		Frequency (MHz)
 		Max. (dB/100 ft.)

5
 		0.86
 		400
 		5.10

55
 		2.05
 		450
 		5.40

83
 		2.45
 		500
 		5.70

187
 		3.60
 		550
 		5.95

211
 		3.80
 		600
 		6.20

250
 		4.10
 		750
 		6.97

300
 		4.45
 		865
 		7.52

350
 		4.80
 		1000
 		8.12


Linan Weimai Electron Co., Ltd is a manufacturer with more than 6 years

Experience in the communications cable industry in China. With an experien-

Ced and professional team, we have exported our products to many countries

And regions all over the world, especially European countries, North Americ-

An, Asia and the Middle East. We can professionally manufacture and supply

Coaxial cables, LAN cables, alarm cables, telephone cables Speaker Cable,

Audio RCA Cable, Scart cable, Flexible RVV Cable and the cable assembly

etc, and many are approved by CE, RoHS. Current production capacity is

About 180, 000, 000 meters per year. Our factory is located in Lin an city, enjoying great convenience toShanghai and Ningbo Sea Port. We have advanced testing machines, ToTest Attenuation, Return Loss Ect. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We welcome

Customers, business associations and friends from all parts of the word to

Contact us and seek cooperation for mutual benefits
