| Prod Model: |
MSI |
| Product Name: |
DC160V AC110V Solar Inverter with MPPT So |
| Control Method: |
V/F Control, Space Vector Control |
| Output Frequency Range: |
0-50Hz |
| Communication Methods: |
RS -485 |
| Power Range: |
0.75-250kw |
| Input Of Single Phase DC Power: |
160V 310V 540VDC |
| Output Of Three Phase Voltage: |
110V 220V 380VAC |
| Protection: |
IP20 |
| LED Screen: |
Display Parameters |
| Altitude: |
Lower Than 1000 M |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
| Link Of Transformation: |
DC-AC |
Product Description

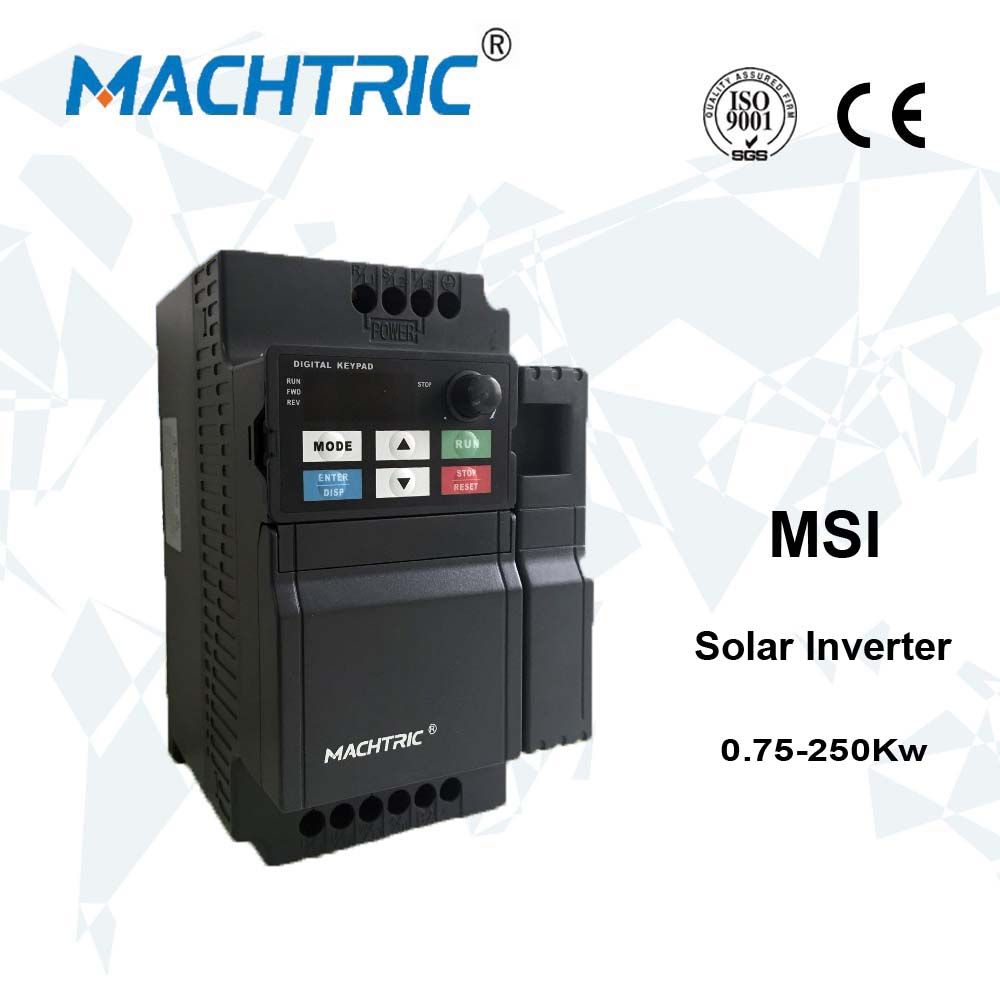

Cheapest DC160V To AC110V Solar Inverter with MPPT Solar Controller
Technical features of MSI solar inverter
| Item | Msi solar inverter |
| Main control method | Control method | V/f control, space vector control. |
| Output frequency range | 0~400.0hz |
| Carrier frequency setting | 0~15khz |
| Frequency setting resolution | Digital input:0.1hz |
| Analog input:0.1% of max.Frequency |
| Accuracy of output frequency | 0.1hz |
| Overload | Type g:150% rated current in 60s;180% rated current in 3s. |
| Type p:120% rated current in 60s;150% rated current in 3s. |
| Torque control accuracy | Auto boost;Customized boot 0.0~20.0% |
| V/f control | Can be arbitrarily set line v/f |
| Plc, multi-speed operation | Internal plc or input terminals able can be set 16 section |
| Internal pid | It realizes process-controlled closed loop control system easily. |
| Voltage | 0~220vac;0~380vac |
| Acceleration and deceleration time settings | 0~999.9s respectively provided acceleration and deceleration time |
| Communication methods | Rs -485 |
| Operation | Running command channel | Operation panel, control terminal, seriel communication port |
| Frequency source | Digital setting, analog voltage setting, analog current setting, pulse setting and serial communication port setting. |
| Input terminal | Six digital input terminal;Two analog input terminal:One just support input voltage 0~10v (fiv), other support input current 4~20ma (fic) |
| Output terminal | One digital output terminal ( m01);One relay output terminal ( ra, rb, rc) |
| One analog output terminal, support output voltage 0~10v (fov) |
| Control panel | Led screen | Display parameters |
| Protection function | Motor short-circuit detection at power-on, input/output phase loss protection, over current protection, overvoltage protection, under voltage protection, overheat protection and overload protection |
| Environment | Installation location | Indoor, free from direct sunlight, dust, corrosive gas,combustible gas, oil smoke, vapour, drip or salt. |
| Altitude | Lower than 1000 m |
| Ambient temperature | -10°c ~40°c (de-rated if the ambient temperature is between 40°c and 50°c) |
| Humidity | Less than 95%rh, without condensing |
| Vibration | Less than 5.9 m/s2 (0.6 g) |
| Storage temperature | -20°c~60°c |
| Class protection | Ip20 |
Why choose us?
20 years experience at produce frequency inverter
10 years OEM experience for customers
Products sold for more than 40 countries
After-sales responding within 24 hours
One to one pre-sales consulting services
Factory located in Shanghai, with high-tech professional engineer teams.
