Chemical Corrosion Resist Insulation Silicone Fabric

Name: Chemical Corrosion Resist Insulation Silicone Fabric
Brand: all-electronics-online.com
SKU: 819441625
Availability: InStock
Rating: 4.6 (36 reviews)

Price:	US $ 5-6/Square Meter
Min Order:	100/Square Meter
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YS5060
Product Name:	Silicone Fabric
Width:	1000mm, 1200mm, 1500mm, 2000mm
Length:	50m, 100m
Surface:	Matt
Basic Material:	Glassfiber Fabric
Coating Material:	Silicone
Application:	Winding Wire Coating Insulation
Type:	Insulation Sheet
Chemistry:	Inorganic Insulation
Material:	Silicone
Thermal Rating:	250 250
Maximum Voltage:	20KV~100KV
Brand:	No

Product Description

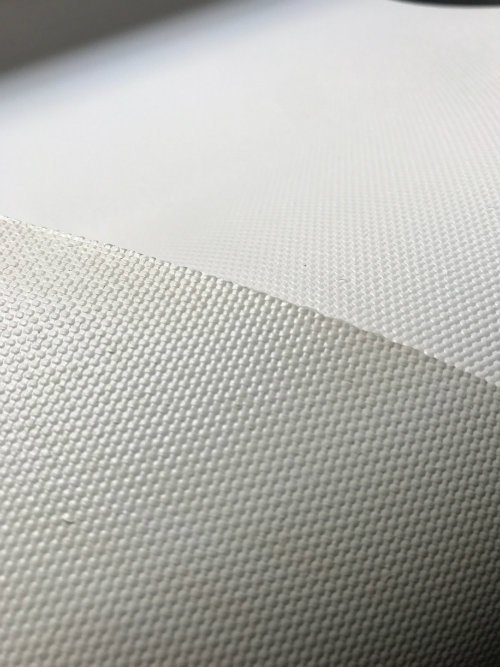

Silicone fabric is constructed from a fiberglass base cloth and impregnated one side or both sides with a specially compounded silicone rubber, the finished material is more flexible and has non-slip surface, fireproof, high temperature insulation ozone, oxygen, sun, weather and oil workability.

Why Choose Silicone Rubber Insulator Cloth
1. Working Temperature -70~260C, good thermal insulation
2. Ozone, oxide, light and weathering aging resistance, excellent weather ability used in outdoors and ages may be reached to 10 years.
3. High insulation: Dielectric constant from 3 to 3.2, breakdown voltage from 20 to 50KV/mm
4. Chemical resist, waterproof

How to Use Silicone Glass Cloth
1. Tank seals, containment barriers, fireproof blanket
2. Conveyor belt and expansion joints.
3. Electrical insulation: insulation jackets, vavel jackets
4. Shrink tunnel curtains
5. Used for aerospace, marine, chemical industry, power plant, auto-manufacture, construction, piping flexility and sealing industry.

Specifications:

	Thickness		Breaking Strength	(Mpa)	Combustible	width
Model	mm	mil	(n/50mm)	Bursting Strength	Combustible	width
YS-5015	0.15	6	1500/1200	2	≤25%	0_1500mm
YS-5025	0.25	10	1800/1500	2.1	≤25%	0_1500mm
YS-5040	0.4	16	2000/1600	2.2	≤25%	0_1500mm
YS-5050	0.5	20	2200/1800	2.3	≤25%	0_3000mm
YS-5060	0.6	24	2400/2200	2.4	≤25%	0_3000mm
YS-5070	0.7	28	2500/2300	2.4	≤25%	0_3000mm
YS-5080	0.8	31	2600/2400	2.5	≤25%	0_3000mm
YS-5090	0.9	35	2800/2600	2.5	≤25%	0_3000mm
YS-5100	1	40	3000/2800	2.6	≤25%	0_3000mm
YS-5120	1.2	47	3400/3000	2.5	≤25%	0_3000mm
YS-5150	1.5	59	3700/3300	2.8	≤25%	0_3000mm
YS-5200	2	79	4200/3800	3.5	≤25%	0_3000mm
YS-5300	3	118	6500/6200	5	≤25%	0_1000mm

Packing

Exhibition we attend

Our company

Taixing Youngsun Fl-Plastics Co.,Ltd is established in 2006, covers an area of more than 54000 square meter with registration capital of 40 million RMB.

Youngsun is manufacturer specialized in Teflon Fabric, High temperature tape, PTFE Mesh Conveyor Belt, Silicone Fabric. In order to enssure product quality, esone import advanced vertical coating equipments, ultra-wide and high speed automatic weaving machine from Germany.

Taixing Youngsun FL-Plastics Co., Ltd. is a professional manufacturer and exporter of fluorescent lamp starters and PTFE thread seal tape. With over 10 years of manufacturing experience, all of our products are made in accordance with international quality standards. We export to clients throughout Europe, the Middle East, Africa, Southeast Asia, America, and Australia with annual sales volume reaching USD4, 000, 000.

We operate an 8, 000 square meter factory workshop equipped with advanced production and testing equipment sourced from Taiwan, Korea, and Italy. We also have our own printing factory and packing workshop, which enable us to carry out all design, production, and packing entirely in-house according to customer's specific requirements. Thus we are able to control our costs and pass our savings on to our customers.

For many years, our company has been paying close attention to scientific management and we are always ready to provide first-class efficient service for our customers. To better meet the needs of customers, we have established Taixing Youngsun International Trading Co., Ltd. To source other goods in China for our customers.

For more information about any of our series, or to place your requirement, please feel free to contact us directly. We hope to receive your detailed inquiry soon, and are looking forward to having the chance of cooperating with you in the near future.
