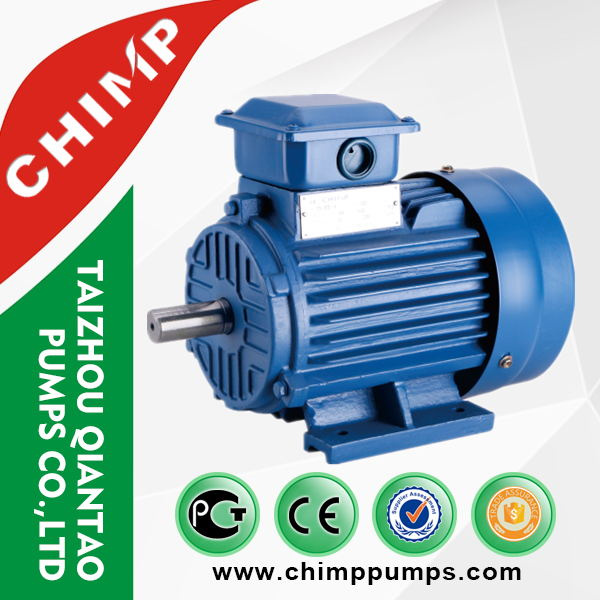

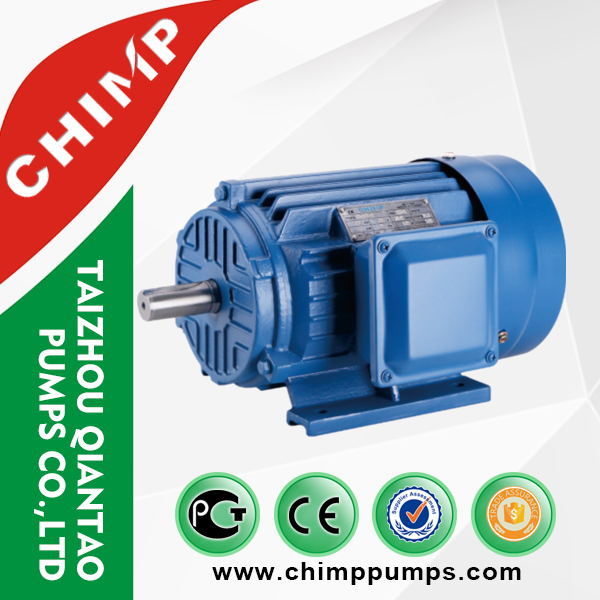

Chimp Pumps Y2 Series 4 Poles Standarded AC Cast Iron Three-Phase Asychronoous Electric Motor with CE

Prod Model:	Y2-112M-4
Markets:	Africa,Mid East,Eastern Asia
Base Center Height:	63-315mm
Power Range:	0.12-110kw
Nsulation Class:	B or F
Protection Class:	IP54 (or IP55)
Work System:	S1
Casing:	Iron/Aluminum
Number Of Stator:	Three-Phase
Function:	Control
Brand:	Chimp / OEM

Product Description

Chimp Pumps Y2 Series 4 Poles Standarded AC Cast Iron Three-Phase Asychronoous Electric Motor with CE





Feature:

Y2 series motor is the improvement products from Y series motor. Its performance have reach to international IEC standards.It has novel structure,beautitul modeling fang,small vibration and low noise feature.

Rated Parameters:

Base Center Height:63-315mm                                 Power Range: 0.12-110 kW
Nsulation Class: B or F                                                Protection Class: IP54 (or IP55)
Work System: S1

Mounting Structure:

B3 Frame without foot cover end flange
B35 Frame with foot cover end flange
B5 Frame with foot cover end flange


Model	Rated Power	Full Load				locked-rotor current Rated Current  Ist/Tn	locked-rotor Torque  Rated Torque   Tst/Tn	Maximum Torque  Rated Torque  Tst/Tn
		Speed   r/min	Current        A	Performance  %	Efficiency Factor  COSΦ
Synchronous Speed 1500 r/min (4 Poles)
Y2-712-4	0.37	1330	1.12	67	0.75	5.2	2.4	2.2
Y2-801-4	0.55	1390	1.57	71	0.75	5.2	2.3	2.3
Y2-802-4	0.75	1390	2.03	73	0.76	6.0	2.4	2.3
Y2-90S-4	1.1	1400	2.89	75	0.77	6.0	2.3	2.3
Y2-90L-4	1.5	1400	3.70	78	0.79	6.0	2.3	2.3
Y2-100L1-4	2.2	1430	5.16	80	0.81	7.0	2.3	2.3
Y2-100L2-4	3.0	1430	6.78	82	0.82	7.0	2.3	2.3
Y2-112M-4	4.0	1440	8.80	84	0.82	7.0	2.3	2.3
Y2-132S-4	5.5	1440	11.7	85	0.83	7.0	2.3	2.3
Y2-132M-4	7.5	1440	15.6	87	0.84	7.0	2.3	2.3
Y2-160M-4	11	1460	22.3	88	0.84	7.0	2.2	2.3
Y2-160L-4	15	1460	30.1	89	0.85	7.5	2.2	2.3
Y2-180M-4	18.5	1470	36.5	90.5	0.86	7.5	2.2	2.3
Y2-180L-4	22	1470	43.2	91	0.86	7.5	2.0	2.3
Y2-200L-4	30	1470	57.6	92	0.86	7.2	2.0	2.3
Y2-225S-4	37	1480	69.9	92.5	0.87	7.2	2.0	2.3
Y2-225M-4	45	1480	84.7	92.8	0.87	7.2	2.0	2.3
Y2-250M-4	55	1480	103	93	0.87	7.2	2.0	2.3
Y2-280S-4	75	1480	140	93.8	0.87	7.2	2.0	2.3
Y2-280M-4	90	1490	167	94.2	0.87	7.2	2.0	2.3
Y2-315S-4	110	1490	201	94.5	0.88	6.9	2.1	2.2

Taizhou Qiantao Pumps Co., Ltd. is a modern enterprise with a combination of development, production, service. It is specialized in producing electric pump and motor with more than 50 series and 1000 specifications.
Our company centers on people, equipped with a large technology team and management talent, forming significant human resource and powerful technology advantagement.

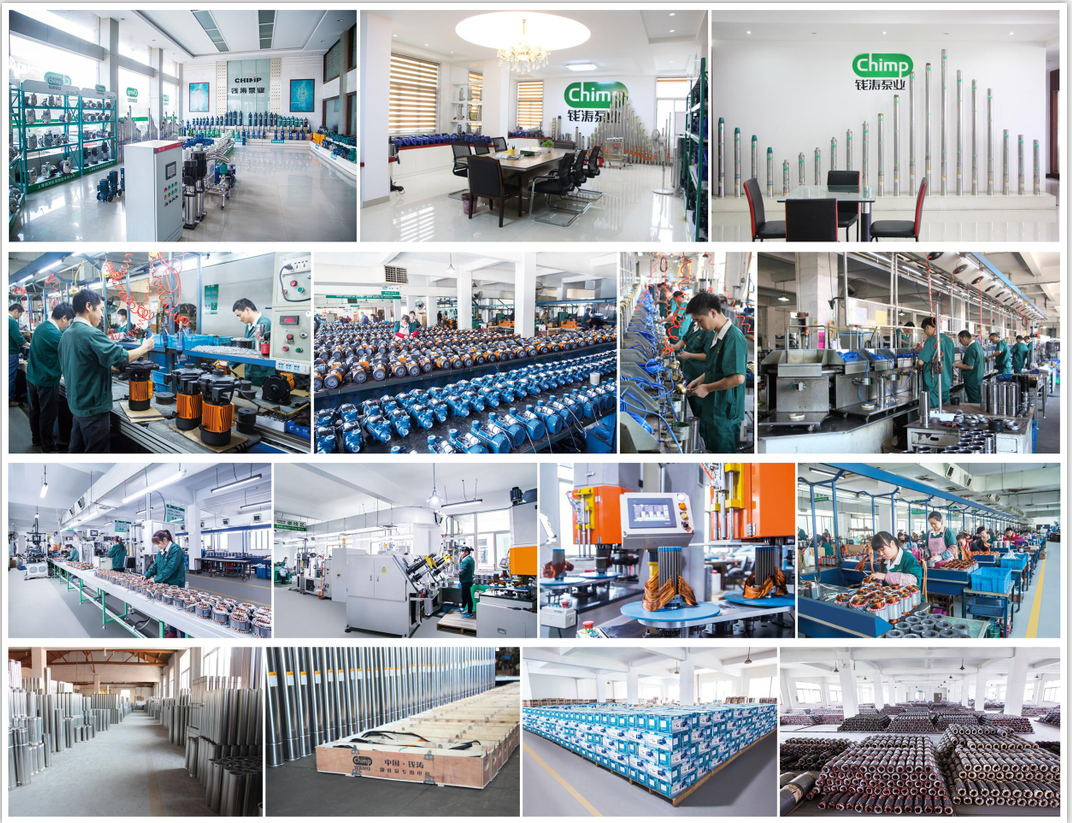

We own advanced electric pumps and assembly line for motors as well as online automatic testing systems. All these equipments supply favorable managing condition and reliable detecting methods. Our company has passed the ISO9001:2000 international quality system certification and "3C" electrician product certification. The products have won the producing licence granted by the national technical supervision bureau and "Agricultural Machinery popularization licence" granted by the national agriculture ministry.
