| Prod Model: |
YS |
| Base Center Height: |
63-255 mm |
| Power Range: |
0.75-22kw |
| Nsulation Class: |
B /F |
| Protection Class: |
IP54 (or IP55) |
| Work System: |
S1 |
| Rated Voltage: |
380V, Optional 220V-720V |
| Number Of Stator: |
Three-Phase |
| Function: |
Control |
| Certification: |
Ce |
| Brand: |
Chimp/OEM |
Product Description
Feature:

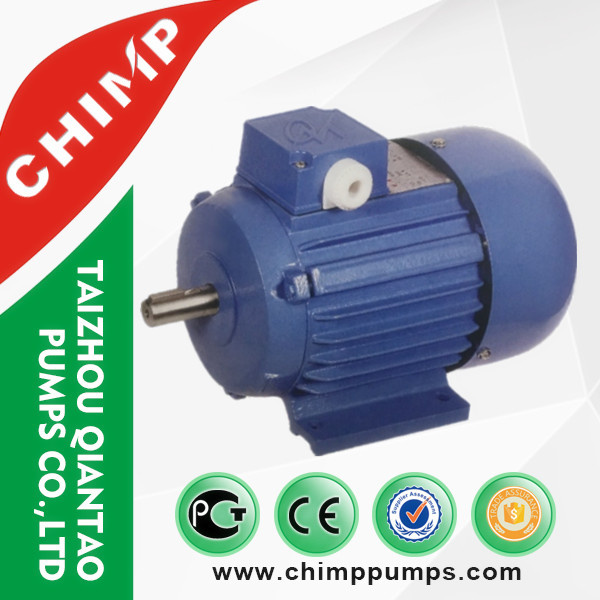

YS series aluminum housing three-phase asynchronous motors,in line with the relevant provisions of the international Electrical Commission IEC,made of high quality raw materials with latest structure design. Has a good performance,low noise,small vibration,safe and reliable operation,nice apperance,small size,light weight,simple structure,easy maintenance etc. Applcable to the reducer,fans,pumps,air compressors,lines,packaging industry,food machinery and wood working machinery etc.
| TYPE | OUTPUT | RATED CURRENT | RATED SPEED | η | POWER FACTOR | LOCKED-ROTOR CURRENT/RATED TORQUE | LOCKED-ROTOR TORQUE/RATEDTORQUE | PULL-OUT TORQUE/RATEDTORQUE |
| W | IN(A) | nN(rpm) | % | cos Φ | Tst/TN | Ist/TN | |
| YS6312 | 180 | 0.53 | 2800 | 69 | 0.75 | 2.2 | ≤6 | 2.4 |
| YS6322 | 250 | 0.67 | 2800 | 72 | 0.78 | 2.2 | ≤6 | 2.4 |
| YS7112 | 370 | 0.95 | 2800 | 73.5 | 0.80 | 2.2 | ≤6 | 2.4 |
| YS7122 | 550 | 1.35 | 2800 | 75.5 | 0.82 | 2.2 | | |
| YS8012 | 750 | 1.75 | 2800 | 76.5 | 0.85 | 2.2 | ≤6 | 2.4 |
| YS8022 | 1100 | 2.56 | 2800 | 76.5 | 0.85 | 2.2 | ≤6 | 2.4 |
| YS6314 | 120 | 0.48 | 1400 | 60 | 0.83 | 2.3 | ≤6 | 2.4 |
| YS6324 | 180 | 0.65 | 1400 | 64 | 0.60 | 2.3 | ≤6 | 2.4 |
| YS7114 | 250 | 0.8 | 1400 | 67 | 0.68 | 2.3 | ≤6 | 2.4 |
| YS7124 | 370 | 1.12 | 1400 | 69.5 | 0.72 | 2.3 | ≤6 | 2.4 |
| YS8014 | 550 | 1.55 | 1400 | 73.5 | 0.73 | 2.3 | ≤6 | 2.4 |
| YS8024 | 750 | 2.01 | 1400 | 75.5 | 0.75 | 2.3 | ≤6 | 2.4 |
| YS90S-4 | 1100 | 2.75 | 1400 | 78 | 0.78 | 2.3 | ≤6.5 | 2.4 |
| YS90L-4 | 1500 | 3.64 | 1400 | 79 | 0.79 | 2.3 | ≤6.5 | 2.4 |
