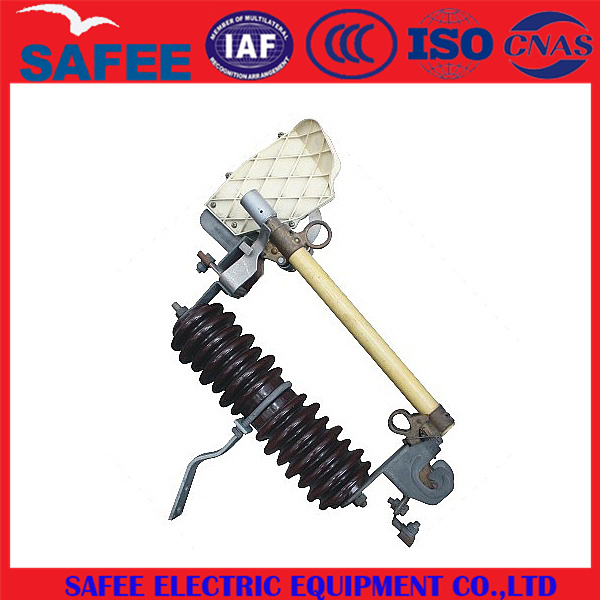

China 11-27kv Polymer Drop-out Fuse Cutout - China Fuse Cutout, Fuse Link

Name: China 11-27kv Polymer Drop-out Fuse Cutout - China Fuse Cutout, Fuse Link
Brand: all-electronics-online.com
SKU: 717028072
Availability: InStock
Rating: 4.3 (107 reviews)

Price:	US $ 5/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage

Product Description

Product Description

Type: RW7

Rated Voltage ( kV ) : 12

Rated Current ( A ) :100,200

Breaking Current ( A ) : 6300,12500

Impulse Voltage ( BIL ) : 110

Power - Frequency Withstand Voltage ( kV ) : 42

Leakage Distance ( mm ) : 230

Dimension(cm): 49x25x12

Type	Rated voltage(KV)	Rated current(A)	Breaking current(A)	Impulse voltage(BIL)	Power-frequency withstand voltage(KV)	Leakage distance(mm)	Weight(kg)	Dimensions(cm)
RW7	12	100	6300	110	42	230	7	49x25x12
RW7	12	200	12500	110	42	230	7.3	49x25x12

Data of technical
>>A, XRNT-24----32A
  Rated voltage: 24KV
  Rated current of fuse: 32A
  Rated current of melter: 1, 2, 4, 6.3, 10, 16, 20, 25, 31.5, 32 A
  Dimension: 442*51mm
>>B, XRNT-24---100A
  Rated voltage: 24KV
  Rated current of fuse: 100A
  Rated current of melter: 40, 50, 63, 71, 80, 100 A
  Dimension: 442*76mm
>>C, XRNT-24----200A
  Rated voltage: 24KV
  Rated current of fuse: 200A
  Rated current of melter: 125, 160, 200 A
  Dimension: 442*88mm
  Other Information
Notes for ordering
Please offer the followings while ordering:
>A, Type and name of products;
>B, Rated voltage and rated current;
>C, Breaking current and quantity;
>D, Please indicate if details of special requests while ordering.
Parameters

TYPE	RLF-3	RLF-3
Rated voltage(kv)	10-15	10-15
Rated current(A)	100	200
Breaking Current(A)	6000	8000
Impulse voltage(KV)	110	110
Power-frequency withstand voltage(KV)	40	40
Creepage distance(mm)	340	340
Weight(kg)	7.5	7.5
Dimensions(cm)	492711	492711

SAFEE ELECTRIC EQUIPMENT Co., Limited, founded in 2013, is set research and development in our country, production, sales in the integration of science and technology communication EQUIPMENT, fittings professional manufacturers, the company headquarters is located in hebei province shijiazhuang qiaoxi, branch is located in hebei xingtai guangzong county industrial area, transportation is work, the environment is superior.

The company covers an area of more than 28000 square meters, The company existing staff 200 people, o quality management personnel more than 20 people, to meet The rapid growth of demand, The company established a long - term development planning and recent plan, enables The system to implement effectively, make The company fast and efficient.

My company 's existing: Steel strand, circuit, iron casting, all kinds of standard parts, safety instruments and other electric products, gradually to export products from domestic transformation.

Specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are sold throughout the country, marketing has entered the export-oriented, products are sold to Asia, Africa, Middle East, Western Europe, eastern Europe and South America market, modern management and perfect after-sales service system, to build China's power industry well-known brands, we will be more hard work, adhering to the principle of quality is the enterprise life, to a higher standard, create value for users, with global cooperation, hand in hand and win-win marketing idea is willing to work with new and old customers at home and abroad hand in hand, altogether will create the glorious future, Sincerely welcome to visit our company, we supply superior quality products and excellent service always.
