| Prod Model: |
FCGW-35/1000A |
| Application: |
High-voltage |
| Type: |
B Type Insulator |
| Certification: |
RoHS,GB |
| Brand: |
Safee |
Product Description
Product Description

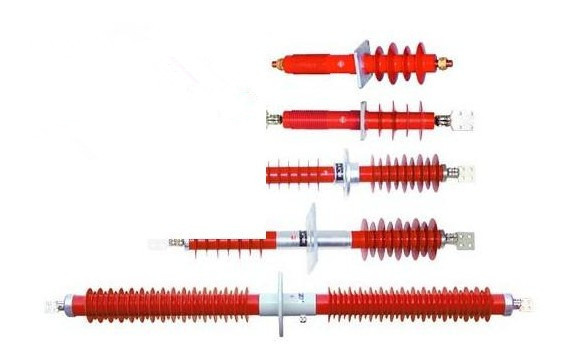

Composite Wall Bushing
FCGW series of composite insulator dry wall drivepipe is implied to indoor or outdoor power substation with AC power system's rated voltage lower than 35KV, frequency being 50Hz, it performs electric insulator and mechanic support function for high-voltage conductor when high-voltage conductor crosses through wall or other object of connection to land, the product also is used as insulator and support for 10KV vacuum circuit breaker's high-voltage entry-exit wire. Especially, it is implied to dirty district for preventing from dirty-flash accident, therefore, it has been the upgraded product for vastly used china wall drivepipe.
Product Description
Wall Throught Composite Polymer Bushing Insulator
Specifications
1.Professional Manufacture of China
2.Multi protection functions
3.CE,FCC,LVD&ROHS reports
Product Description
Condition of Use:
1. Ambient air temperatures within the range of -40 degree Celsius to +40 degree Celsius;
2. Altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of A. C. Power supply not exceeding 100Hz;
4. The mechanical load no more than the rated value.
This series product are composed of silicon rubber for sheds/ housing, glass-fiber reinforced epoxy resin rod core and hop DIP galvanized metal fittings. It has good mechanical performance and electric performance compared with porcelain insulators.
We can offer OEM service according to customers' drawing and specified requirements, welcome to contact us.
For your reference under below is the main technical parameter of each model type.Main techical parameters
| Product Model | Rated voltage(kV) | Rated mechanical load(KN) | Structure height H.(mm) | Insulating distance Li.(mm) | Min Creepage distanee(mm) | Lightning impulse withstand voltage(peak)(kV) | P.Fwet withslend voltage(virtual value) |
| FXBW4-12/70 | 12 | 70 | 370 | 200 | 480 | 75 | 42 |
| FXBW4-12/100 | 12 | 100 | 405 | 200 | 480 | 75 | 42 |
| FXBW4-24/70 | 24 | 70 | 550 | 370 | 850 | 185 | 75 |
| FXBW4-24/100 | 24 | 100 | 590 | 370 | 850 | 185 | 75 |
| FXBW4-35/70 | 35 | 70 | 650 | 450 | 1225 | 230 | 95 |
| FXBW4-35/100 | 35 | 100 | 690 | 450 | 1225 | 230 | 95 |
| FPBW4-66/70 | 66 | 70 | 900 | 710 | 1980 | 410 | 185 |
| FXBW4-66/100 | 66 | 100 | 940 | 710 | 1980 | 410 | 185 |
| FPBW4-110/70 | 110 | 70 | 1240 | 1000 | 3315 | 550 | 230 |
| FPBW4-110/100 | 110 | 100 | 1240 | 1000 | 3315 | 550 | 230 |
| FPBW4-220/100 | 220 | 100 | 2240 | 1900 | 6300 | 1000 | 395 |
| FPBW4-220/160 | 220 | 160 | 2240 | 1900 | 6300 | 1000 | 395 |
| FPBW4-330/100 | 330 | 100 | 2950 | 2600 | 9075 | 1425 | 570 |
| FPBW4-330/160 | 330 | 160 | 2950 | 2600 | 9075 | 1425 | 570 |
| FXBW4-500/160 | 500 | 160 | 4080 | 3730 | 12750 | 2250 | 740 |
Composite Through Wall Bushing Insulator (FCGW)
Condition of Use:
1. Ambient air temperatures within the range of -40 degree Celsius to +40 degree Celsius;
2. Altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of A. C. Power supply not exceeding 100Hz;
4. The mechanical load no more than the rated value.
Characteristics:
-Small volume and light weight, easy to transport and install
-The superior in performance and high intensity mechanical enhance reliability of power line
-Extraordinary hydrophobic and resistance to contamination
-Long-duration resistance aging and leakage tracking.
| Product Model | Rated voltage (kV) | Rated mechanical bending load (kN) | Min. arcing distance
(mm) | Min. nominal creepage distance (mm) | Diameter of shed (mm) | Uimp wts (peak)
(kV) | Uw. 1min wts (peak)
(kV) |
| FCGW-35/630 | 35 | 125 | 215 | 1030 | 100/90 | 200 | 80 |
