China Aluminium Lug /Cable Lug Connecting Terminals

Name: China Aluminium Lug /Cable Lug Connecting Terminals
Brand: all-electronics-online.com
SKU: 826681845
Availability: InStock
Rating: 4.6 (60 reviews)

Price:	US $ 0.28/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DT-120 DTL-120 DL-120
Delivery Time:	15 Days After Confirm The Order
Name:	Aluminium Connecting Terminals
Material:	Aluminum
Application:	Conduct Electricity
Type:	Connecting Terminal
Shape:	No
Interface Type:	No
Certification:	GB Ce
Brand:	Safee

Product Description

product description:

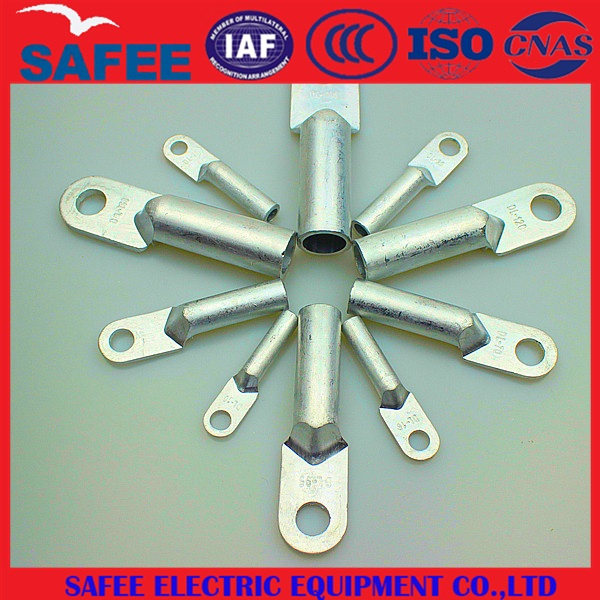

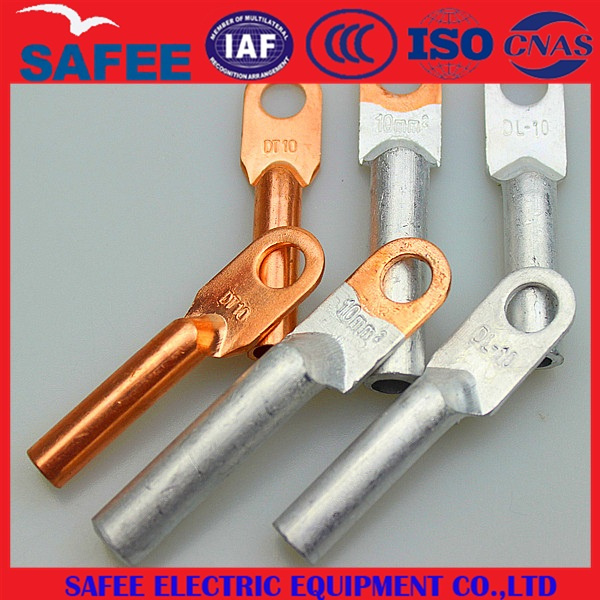

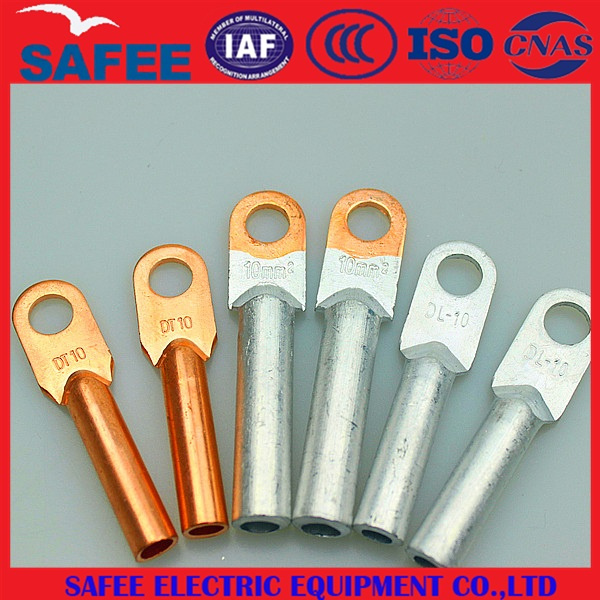

copper-aluminium connecting terminal

Type	Ø	D	d	L	L1	B
DTL-10	8.5	9	6	65	32	15
DTL-16	8.5	10	6	67	35	16
DTL-25	8.5	11	7	74	36	18
DTL-35	10.5	12	8.6	79	39	20.5
DTL-50	10.5	14	9.6	82	38	23
DTL-70	12.5	16	11.5	92	45	26
DTL-95	12.5	18	13.5	101	48	28
DTL-120	14	20	15	105	50	30
DTL-150	14.5	22	16.6	114	53	30
DTL-185	16.5	24	18.6	121	53	34.5
DTL-240	16.5	26	21	126	55	37
DTL-300	20	32	23	142	65	42
DTL-400	20	38	27	170	72	56
DTL-500	21	45	29	195	78	60
DTL-630	21	52	35	220	80	80

TYPE	Φ	D	d	L
DT(G)-10	6.2	8	5	52
DT(G)-16	6.2	9	6	57
DT(G)-25	6.2	10	7	62
DT(G)-35	8.5	11	8	66
DT(G)-50	8.5	13	10	72
DT(G)-70	10.5	16	12	80
DT(G)-95	10.5	18	14	85
DT(G)-120	12.5	20	15	96
DT(G)-150	12.5	23	17	102
DT(G)-185	14.5	25	19	114
DT(G)-240	16.5	27	21	120
DT(G)-300	16.5	31	24	135
DT(G)-400	18.5	34	26	150
DT(G)-500	20.5	38	30	170
DT(G)-630	22.5	45	35	210
DT(G)-800	22.5	50	40	270

TYPE	Dimensions(mm)
TYPE	Φ	D	d	L	L1	B
DL-10	8.5	9	6	68	28	16
DL-16	8.5	10	6	70	30	16
DL-25	8.5	12	7	75	34	18
DL-35	10.5	14	8.5	85	38	20.5
DL-50	10.5	16	9.5	90	40	23
DL-70	12.5	18	11.5	102	48	26
DL-95	12.5	21	13.5	112	51	28
DL-120	14.5	23	15	120	53	30
DL-150	14.5	25	16.5	126	56	34
DL-185	17	27	18.5	133	58	37
DL-240	17	30	21	140	60	40
DL-300	21	34	24	160	65	50
DL-400	21	38	26	170	70	50
DL-500	21	47	29	190	75	60
DL-630	21	54	35	220	85	80
DL-800	21	60	38	250	100	100

TYPE	Dimensions(mm)
TYPE	Φ	D	d	L	L1	B
DL-10	8.5	9	6	68	28	16
DL-16	8.5	10	6	70	30	16
DL-25	8.5	12	7	75	34	18
DL-35	10.5	14	8.5	85	38	20.5
DL-50	10.5	16	9.5	90	40	23
DL-70	12.5	18	11.5	102	48	26
DL-95	12.5	21	13.5	112	51	28
DL-120	14.5	23	15	120	53	30
DL-150	14.5	25	16.5	126	56	34
DL-185	17	27	18.5	133	58	37
DL-240	17	30	21	140	60	40
DL-300	21	34	24	160	65	50
DL-400	21	38	26	170	70	50
DL-500	21	47	29	190	75	60
DL-630	21	54	35	220	85	80
DL-800	21	60	38	250	100	100

TYPE	Dimensions(mm)
TYPE	Φ	D	d	L	L1	B
DL-10	8.5	9	6	68	28	16
DL-16	8.5	10	6	70	30	16
DL-25	8.5	12	7	75	34	18
DL-35	10.5	14	8.5	85	38	20.5
DL-50	10.5	16	9.5	90	40	23
DL-70	12.5	18	11.5	102	48	26
DL-95	12.5	21	13.5	112	51	28
DL-120	14.5	23	15	120	53	30
DL-150	14.5	25	16.5	126	56	34
DL-185	17	27	18.5	133	58	37
DL-240	17	30	21	140	60	40
DL-300	21	34	24	160	65	50
DL-400	21	38	26	170	70	50
DL-500	21	47	29	190	75	60
DL-630	21	54	35	220	85	80
DL-800	21	60	38	250	100	100

Our Services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The best price
5. Strict quality control
6. We wormly welcome you come to visit our factory and seek further cooperation

SAFEE ELECTRIC EQUIPMENT Co., Limited, founded in 2013, is set research and development in our country, production, sales in the integration of science and technology communication EQUIPMENT, fittings professional manufacturers, the company headquarters is located in hebei province shijiazhuang qiaoxi, branch is located in hebei xingtai guangzong county industrial area, transportation is work, the environment is superior.

The company covers an area of more than 28000 square meters, The company existing staff 200 people, o quality management personnel more than 20 people, to meet The rapid growth of demand, The company established a long - term development planning and recent plan, enables The system to implement effectively, make The company fast and efficient.

My company 's existing: Steel strand, circuit, iron casting, all kinds of standard parts, safety instruments and other electric products, gradually to export products from domestic transformation.

Specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are sold throughout the country, marketing has entered the export-oriented, products are sold to Asia, Africa, Middle East, Western Europe, eastern Europe and South America market, modern management and perfect after-sales service system, to build China's power industry well-known brands, we will be more hard work, adhering to the principle of quality is the enterprise life, to a higher standard, create value for users, with global cooperation, hand in hand and win-win marketing idea is willing to work with new and old customers at home and abroad hand in hand, altogether will create the glorious future, Sincerely welcome to visit our company, we supply superior quality products and excellent service always.
