China Durable Jne Type Insulation Strain Clamp - Electric Equipment

Name: China Durable Jne Type Insulation Strain Clamp - Electric Equipment
Brand: all-electronics-online.com
SKU: 714106912
Availability: InStock
Rating: 4.6 (41 reviews)

Price:	US $ 3-10/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JNE
Model No:	From Jne-101 to Jne 411
Usage:	Overhead Transmission Line
Antivibration:	High
Operation:	Convenient
Durability:	Long
Quality Rank:	Higher Than National Electric Criteria
Grip Strength:	High
Certificate:	ISO9001 & SGS Factory Audit Report
Installation Time:	Short
Stability:	High
Application:	Insulating Varnish
Thermal Rating:	250 250
Maximum Voltage:	20KV~100KV
Type:	Insulation Fitting
Chemistry:	No
Material:	Metal
Classification:	No
Color:	Silver

Product Description

Product Description

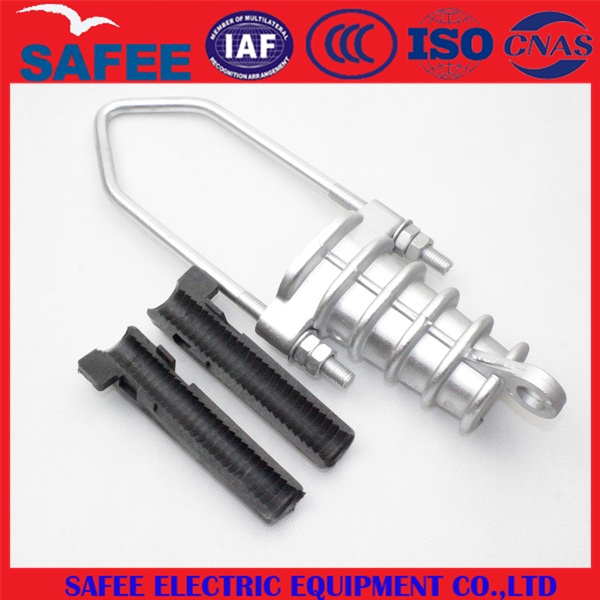

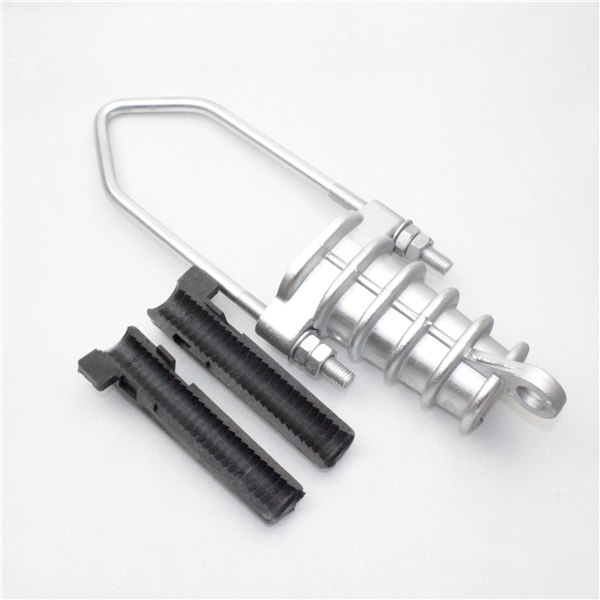

JNE type insulation strain clamp is suitable for fixing & tightening aerial insulation conductor to the tensioning insulator string at the corner termination pole or two ends of the tensioning part, and they are classified as 1KV and 10KV two kinds. The body made of steel & outer figure is of wedge type incoming hole made of stainless steel as seal cover, with high strength well clip & east installation.

JNE Type Insulation Strain Clamp

Type	Inside Wedge Clamping Range (mm)	Nominal Section of Area Wire (mm2)		Nominal Failure Load (kn)
Type	Inside Wedge Clamping Range (mm)	JKLYJ-1KV	JKLYJ-10KV	Nominal Failure Load (kn)
JNE-101	Φ 7~Φ 9.5	16~25	- -	11.5
JNE-102	Φ 9.5~Φ 12.0	35~50	- -
JNE-103	Φ 12.0~Φ 14.0	70	16~25
JNE-104	Φ 12.5~Φ 15.0	- -	35
JNE-205	Φ 14.0~Φ 16.5	95	50	22.0
JNE-206	Φ 15.5~Φ 18.0	120	70
JNE-207	Φ 17.5~Φ 20.0	150	95
JNE-308	Φ 19.0~Φ 21.5	185	120	28.0
JNE-300	Φ 20.5~Φ 23.0	- -	150	28.0
JNE-410	Φ 22.0~Φ 24.5	240	185	45.0
JNE-411	Φ 24.0~Φ 26.5	- -	185	45.0

JNE aerial insulation wedge wire clamp is insulation fitting,Mainly used for high voltage power overhead line
1. Material:Galvanized alloy
2. Product quality has reached to IEC standard
3. Packing: Standard export seaworthy and plywood case packing or follow buyer's request
4. Delivery: Within 3 weeks after receipt of client's prepayment or L/C.?
For opening a new mold then delivery time need undetermined.

SAFEE ELECTRIC EQUIPMENT Co., Limited, founded in 2013, is set research and development in our country, production, sales in the integration of science and technology communication EQUIPMENT, fittings professional manufacturers, the company headquarters is located in hebei province shijiazhuang qiaoxi, branch is located in hebei xingtai guangzong county industrial area, transportation is work, the environment is superior.

The company covers an area of more than 28000 square meters, The company existing staff 200 people, o quality management personnel more than 20 people, to meet The rapid growth of demand, The company established a long - term development planning and recent plan, enables The system to implement effectively, make The company fast and efficient.

My company 's existing: Steel strand, circuit, iron casting, all kinds of standard parts, safety instruments and other electric products, gradually to export products from domestic transformation.

Specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are sold throughout the country, marketing has entered the export-oriented, products are sold to Asia, Africa, Middle East, Western Europe, eastern Europe and South America market, modern management and perfect after-sales service system, to build China's power industry well-known brands, we will be more hard work, adhering to the principle of quality is the enterprise life, to a higher standard, create value for users, with global cooperation, hand in hand and win-win marketing idea is willing to work with new and old customers at home and abroad hand in hand, altogether will create the glorious future, Sincerely welcome to visit our company, we supply superior quality products and excellent service always.
