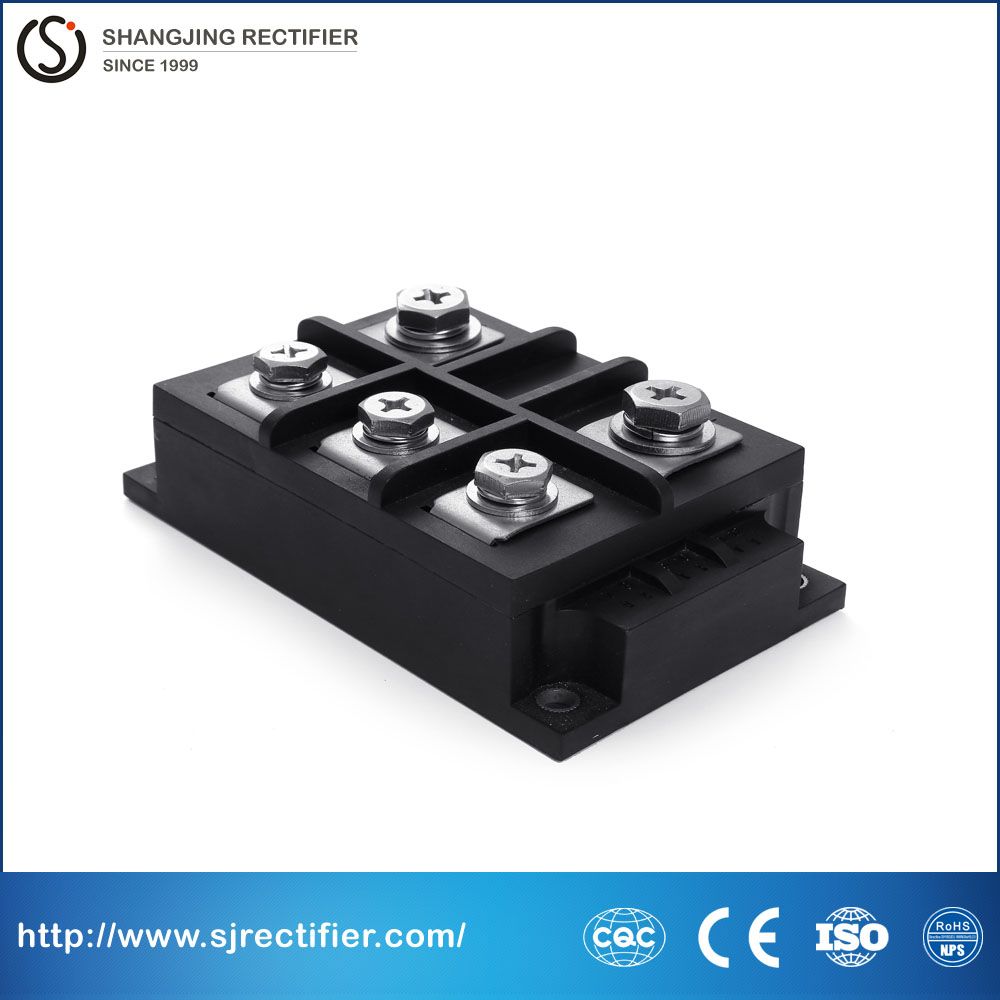

China Electronics 3 Phase Bridge Rectifier Module

Name: China Electronics 3 Phase Bridge Rectifier Module
Brand: all-electronics-online.com
SKU: 663653151
Availability: InStock
Rating: 5 (47 reviews)

Price:	US $ 3-110/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MDX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Enter Attribute Here (E. G.: Size):	Enter Value Here (E. G.: 12 Inches)
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Ceramic Disc Type Seal
Application:	DC Power Supply, Power Supply for PWM
Model:	Mdx
Batch Number:	2016+
Brand:	Shangjing

Product Description

Features
Electrical insulated for chip and base
International standard packaging
Excellent temperature characteristic and power cycling performance
Water-cooling type available for over 400A modules
Easy to install and maintain
Small and light

Typical Applications
AC DC motor control
Motor soft start
Industry heat-up control
Various rectification power supply
Welder
Contactless switch
Frequency transformer
UPS power supply
Battery charge & discharge

Explanation
I2t=I2TSM× TW/2: TW=Half sine wave current, when at 50Hz, I2t=0.005I2TSM(A2S)
When at 60Hz, ITSM(8.3ms)=ITSM(10ms)× 1.066, Tj=Tjm I2t(8.3ms)=I2t(10ms)× 0.943, Tj=Tjm

Type	I_F(AV)	V_RRM	V_FM@I_FM		I_RRM	I_F(RMS)	I_FSM	R_jc	T_jm	V_iso	Outline
Type	A	V	V	A	mA	A	A× 10^3	° C/W	° C	V(AC)	Outline
MDX25A	25	400-2600	1.55	80	8	41	0.65	1.300	150	2500	M1/M2
MDX40A	40	400-2600	1.45	120	8	63	1.00	0.900	150	2500	M1/M2
MDX55A	55	400-2600	1.35	170	8	86	1.30	0.700	150	2500	M1/M2
MDX70A	70	400-2600	1.30	210	8	110	1.80	0.570	150	2500	M1/M2
MDX90A	90	400-2600	1.23	270	8	141	2.30	0.470	150	2500	M1/M2
MDX110A	110	400-2600	1.35	330	8	173	2.60	0.350	150	2500	M1/M2
MDX130A	130	400-2600	1.28	410	12	212	3.90	0.310	150	2500	M2/M3
MDX160A	160	400-2600	1.46	480	12	251	6.00	0.230	150	2500	M3
MDX200A	200	400-2600	1.28	600	12	314	8.00	0.210	150	2500	M3/M4
MDX250A	250	400-2600	1.33	750	20	393	11.0	0.140	150	2500	M4
MDX300A	300	400-2600	1.25	900	20	471	12.5	0.130	150	2500	M4
MDX350A	350	400-2600	1.40	1050	30	550	15.0	0.110	150	2500	M5
MDX400A	400	400-2600	1.25	1200	40	640	18.0	0.100	150	2500	M5
MDX500A	500	400-2600	1.25	1500	40	785	21.0	0.090	150	2500	M5
MDX300A *	300	400-2600	1.35	900	20	471	12.5	0.130	150	2500	M6
MDX500A *	500	400-2600	1.45	1500	40	785	12.0	0.130	150	2500	M7
MDX600A *	600	400-2600	1.50	1800	40	942	15.0	0.110	150	2500	M7/M8
MDX800A *	800	400-2600	1.55	2400	40	1256	18.0	0.080	150	2500	M8
MDX1000A *	1000	400-2600	1.60	3000	40	1560	22.0	0.078	150	2500	M9

China Shangjing Rectifier Co., Ltd. Was co-founded by China DELIXI Group, Shanghai Rectifier Co., Ltd. And Jingtai Electric Co., Ltd. In 1999. As one of the most professional manufacturers of power semiconductors and silicon rectifying whole set equipments, as well as the manufacturer for timer switch ( programmable timer switch, digital timer switch mechanical timer switch ) and circuit breaker ( mini circuit breaker, DPN miniatire circuit breaker, DPNL residual current circuit breaker etc) our company has been devoted to provide the high quality electronicsr products for our customers all over the world.

Shangjing Rectifier Co., Ltd. is located in Liushi Town which is well known as the "Capital of Electric City" in China. We are very close to the Wenzhou Airport and the deep-water sea port, which makes it very easy for us to reach our customers from the whole world.

Our company has been certified by China Industrial Department and we have got CE certificate. Furthermore, our products are compliant to the latest RoHS directions.

We have brought advanced technologies and equipment from abroad and kept improving our management and products quality. We stick the spirit of "Chasing for high quality and Servicing our clients with all our heart and credibility", we have gained a lot of honors like "AAA class China quality & credibility company", "member of China Electric Industry Association", etc. We have been exporting our products to Europe, South and North America, Middle East, Africa and earned a lot of good feedback.

We hope our high quality products and service will be bringing successful future to all our customers.
