China express india 6A 600Vdc distance Circuit Breakers 2P MCB

Name: China express india 6A 600Vdc distance Circuit Breakers 2P MCB
Brand: all-electronics-online.com
SKU: 765843815
Availability: InStock
Rating: 4.5 (90 reviews)

Price:	US $ 30-60/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTM20-63DC 600
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current (a):	6, 10, 16, 20, 25, 32, 40, 50, 63
Number Of Poles:	2p
Color:	Gray Body + Green Handle
Frame Degree Rated Current (a):	63
Rated Voltage:	600V DC
Short-Circuit Breaking Capacity:	6000A
OEM&ODM:	Welcome
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Structure:	MCB
Poles Number:	2
Certification:	CE

Product Description

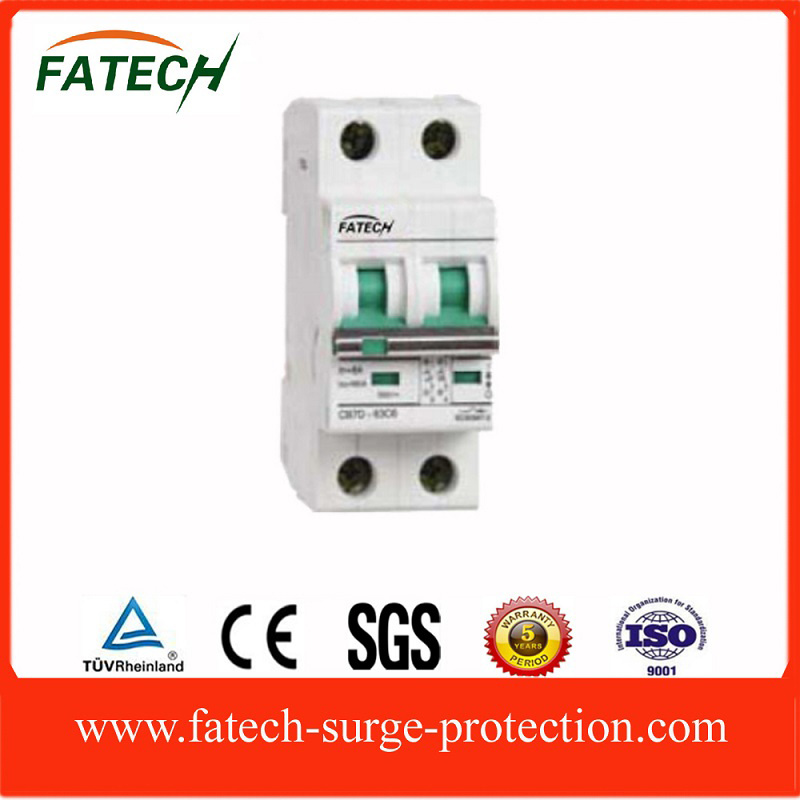

1.DC miniaturer circuit breakers, MCB, 600Vdc, 2P,6KAFTM20-63DC 600 Characteristic

- DC miniaturer circuit breakers MCB
- Devices are designed for direct current (DC) control circuit applications.
-Rated voltage 600Vdc
- 2 poles
- Breaking capacity 6kA
- Rated current 6A,10A,16A,20A,25A,32A,40A,50A,63A
- CE approved.

2.DC miniaturer circuit breakers, MCB, 600Vdc, 2P,6KA FTM20-63DC 600 Certificate
CE-DC MCB

3.DC miniaturer circuit breakers, MCB, 600Vdc, 2P,6KA FTM20-63DC 600 Electrical parameters

Model No.: FTM20-63DC 600
Rated Current (A)	6, 10, 16, 20, 25, 32, 40, 50, 63
Number of Poles	2P
Color	Gray Body + Green Handle
Frame degree rated current (A)	63
Rated Voltage	600V DC
Short-circuit breaking capacity	6000A

FATECH ELECTRONIC Co., Ltd., is located in Guangdong Provincial New Light Production Base, China, which is a professional manufacturer on R&D and producing on lightning and surge protection devices. Our company gathered all kinds of high-skillled personnels, including authority technical experts and professionals, and excellent technicians with more than 10 years experience.

1. Our main products:

-Surge arresters for protection of photovoltaic system,

-Surge protection devices for protection of power supply systems,

-SPD surge protectors for protection of signal system,

-Lighting rod & lightning counters,

-Test devices.

Wide range of lighting & surge protection products assured you a one stop shopping location for all your need and professional technical support.

2. Our global partners:

We are now exporting more than 100 countries and areas, mainly in Europe, Asia, Latin-America, and Middle East. Our global partner including Ericsson, Sri Lanka Telecom, Telefonica-Movie and so on.

3. Our in-house test lab.:

We established an independent testing laboratory, including reliability testing laboratory, environmental aging testing laboratory, release testing laboratory, which can be performed tests below:

-Impulse current generator (8/20 μ S/160kA and 10/350μ S/25kA)

-Thermal stability tester

-Salt Spray Chamber

-Multi-function Varistor Tester

-On-line Aging Tester

-Dielectric Voltage Withstand Tester

-1.2/50 Voltage Impulse Generator

-Environment Stimulating Tester

-Lightning Surge Counter Tester

We are looking forward to cooperate with more customers worldwide, and warmly welcome your visit and audit our factory.
