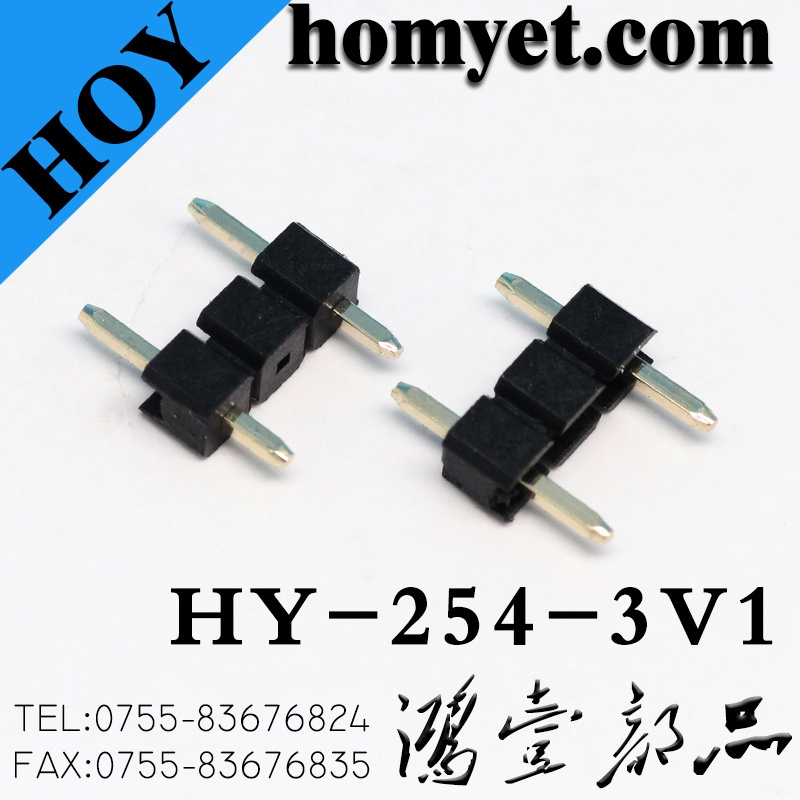

China Factory 2.54/5.08mm Single/Double Row 180 Pin Header PCB Connector

Name: China Factory 2.54/5.08mm Single/Double Row 180 Pin Header PCB Connector
Brand: all-electronics-online.com
SKU: 801934265
Availability: InStock
Rating: 4.9 (125 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HY-254-3V1

Product Description

Specification:
1) Current Rating: 4A AC, DC
2) Voltage Rating: 250V AC, DC
3) Temperature Range: - 40°C~+130°C
4) Contact Resistance: 3.0mΩ Max.
5) Insulation Resistance: 5000MΩ Min.
6) Withstanding Voltage: 2200V AC/minute
7) cUL file No.: E304945
8) Material: Housing: Polyester UL94V-0
Pin: Brass, Tin plated.
9) Housing and pin solid needle bearing: 2.0kg(Min.)
10) Solder Resistance: Dip Connector Terminal Tails
In Solder: Solder Duration: 4±0.5 seconds
10) Solder resistance: Dip connector terminal tails in solder: Solder duration: 245°C±0.5 °C

Application:
1. Duplicator, Fax printer, Scanner, Printer.
2. Clothes washer, Dish-washing machine, air-conditioner, refrigerator, microwave oven, coffee maker, water dishpenser.
3. ATM, POS.
4. Automobile engin, diversion electronic control, seat electronic control, navigator, car audio, LED car lighting.
5. Emergency power supply electronic control, Industrial control, solar light, wind power lamp, EPS, unattended appliances.
6. Treadmill, electric power tool, air compressor.

Packing&transportation:

Items	General packing information
housing	1K pcs/poly bag
crimp terminal	1.5K, 2.5K, 4K, 5K, 6K, 8K, 10K, 15K pcs/reel
wafer	5K pcs/tray
insulated terminal	1K pcs/poly bag(loose packed) 1K, 1.5K, 2K, 2.5K pcs/reel(serial packed)
IDC	5K pcs/bag

Shenzhen Homyet Parts Electronics Co.,Ltd is committed to electronic components parts development,design,production and sales of professional firms. We stick to innovation and quality.ln order to adaptation the requirements of market,we open up constantly,innovation,so we development a series of new product successful and push in market.Our main products ane Tact switch,Phone jack,Toggle switch,power jack, card and connector etc.Our products are widely used in digital fashion,communications,
Multimedia, digital home and other related fields. The company has perfect quality management ,system,Experienced professional andtechnical personnel.

The company keep in line with purpose of"quality,efficiency,integrity
Service",we Conscientiously sum up experiences,Listen carefully to customer feedback and suggestions,Constantly improving and upgrading servies to users.ln the days,the company will go on cooperation with new and old customers to create brilliant together.
We're pleased to get your Inquiry and we will come back to as soon as possible.
