China Factory 2 core FTTH PVC Fiber Optic Drop Cable

Name: China Factory 2 core FTTH PVC Fiber Optic Drop Cable
Brand: all-electronics-online.com
SKU: 825225945
Availability: InStock
Rating: 4.7 (51 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-551
Storage Temperature(ºC):	-40~+70
Installation:	Indoor/Outdoor
Cable Structure:	Bow type tight buffer
Tybe:	GJXFH
Strength Member:	Steel wire or FRP
Warranty (Year):	1
Fiber Count:	1 core/ 2 core/ 4 core
Number Of Conductors:	2
Application:	Communication
Certification:	ISO9001
Type:	Singlemode&Multimode
Sheath Material:	PVC,LSZH

Product Description

China Factory 2 core FTTH PVC GJXFH Fiber Optic Drop Cable

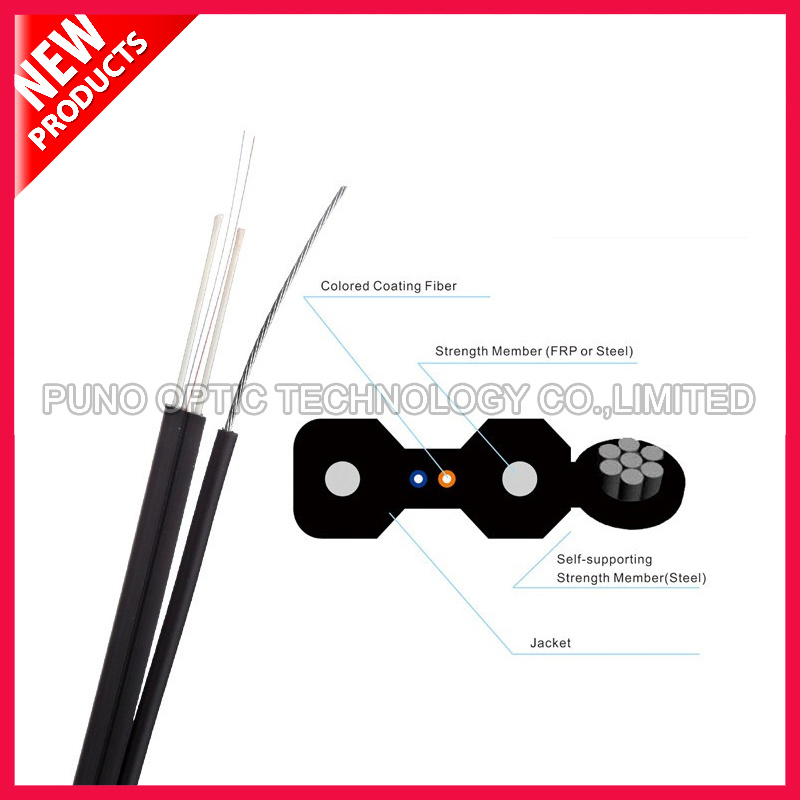

The 250um colored coating fiber is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. The cable is completed with a black or color UV and flame resistant LSZH sheath.

Features:

√ Good mechanical and environmental performance;

√ Flame-retardant properties to meet the requirements of the relevant standards;

√ The mechanical characteristics meet the requirements of the relevant standards;

√ Soft, flexible, easy to splice, and with big capacity date transmission;

√ Meet various requirements of market and clients.

Applications:

√ Used in access network or as access cable from outdoor to indoor in customer premises network;

√ Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.

Datasheets:

Cable Code	Fiber Count	Cable Size mm	Cable weight Kg/km	Tensile Strength Long/Short term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
GJYXFH-1	1	(2.0±0.2)*(5.0±0.2)	21	30/60	300/1000	15/30
GJYXFH-2	2	(2.0±0.2)*(5.0±0.2)	21	30/60	300/1000	15/30
GJYXFH-4	4	(2.0±0.2)*(5.6±0.2)	21.5	30/60	300/1000	15/30
GJYXFH-1	1	(2.0±0.2)*(5.0±0.2)	21	30/60	300/1000	15/30
GJYXFH-2	2	(2.0±0.2)*(5.0±0.2)	21	30/60	300/1000	15/30
GJYXFH-4	4	(2.0±0.2)*(5.6±0.2)	21.5	30/60	300/1000	15/30

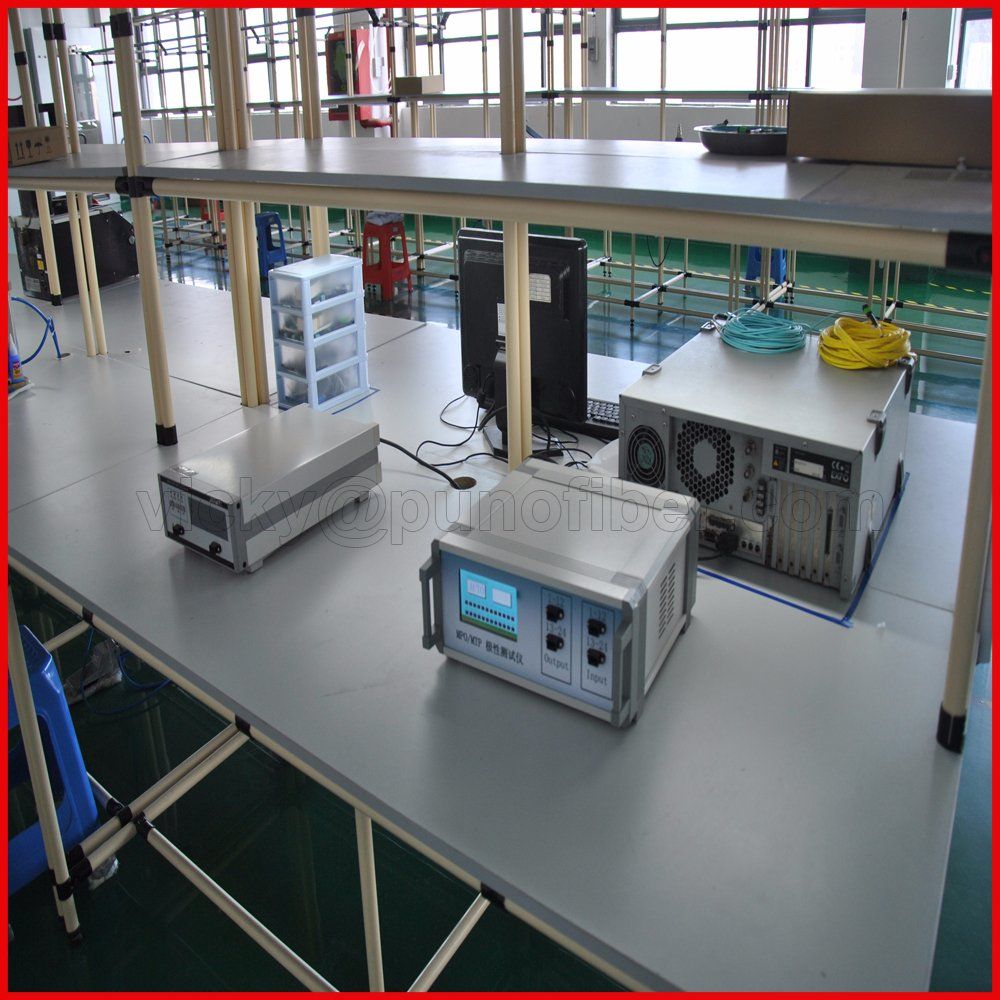

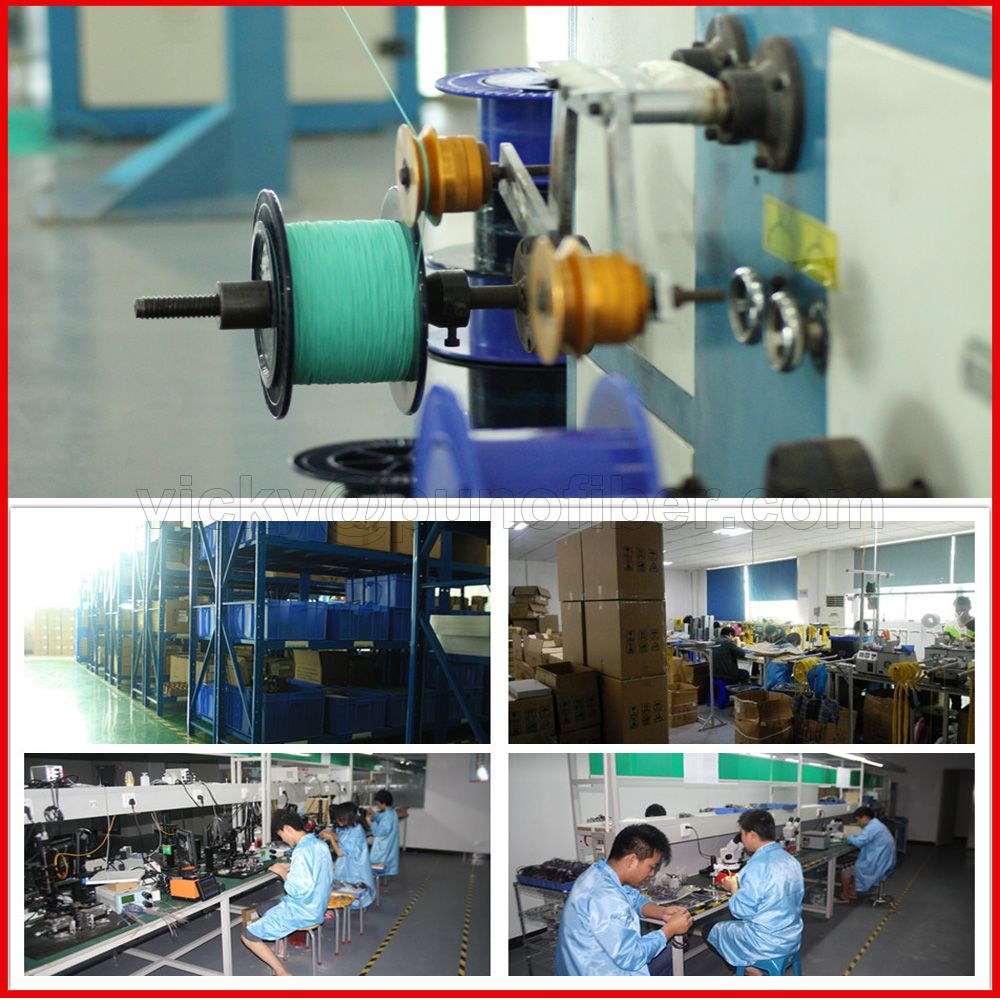

Workshop Overview:

Shipment of Transportation:

We as quality proffesional manufacturer leading of Fiber Optic Products like Fiber Optic Cable, Fiber Optic Patch Cords, Fiber Optic Connector, Fiber Optic Attenuators, Fiber Optic PLC Splitters, Fiber Optic Termination Boxes and so on, more details please give us a contact freely and we try our best to supporting.

Puno Optic Technology Co., Limited. Is the Chinese manufacturing company of superior quality, specialized in assembling connectors on optical fiber cable, was created on January 1, 2005 after spending three years as an incubated division, and became the international department to offer products around the world.

Today, PUNO promotes the same original culture that has made us successful over the years. We strive to incorporate the highest level of quality in every product we produce, transaction we complete, and effort we undertake.

MISSION

We work with passion to create faster connections between people, places, ideas and values.

VISION

Representing the excellence and values of Made In China worldwide.

VALUES

Quality, Innovation, Expertise, Flexibility, Collaboration, Commitment, Honesty.

MARKET

Telecomunicazioni - Telecommunications - Data Center - Broadcasting - Military - Sensor - Transportation

EXPERTISE

More than 10 years in the fiber optics field: In 2008 we developed one of the international sales office located in HK, the powerful city in China.

PARTNERSHIP

China Mobile, China Union, China Telecom, Huawei, Foxconn.
