China Factory Jy Series Small Power Single Phase AC Indcution Motor

China Factory Jy Series Small Power Single Phase AC Indcution Motor
Price: US $ 15-350/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T
Prod Model: jy-2b-2
Insulation Class: Class B or Class F
Application: Power Tools
Operating Speed: Constant Speed
Number Of Stator: Single-Phase
Rotor Structure: Squirrel-Cage
Casing Protection: Closed Type
Starting Mode: Auto-induction Voltage-reduced Starting
Brand: Dongfeng or OEM
Species: Asynchronous Motor
Certification: Ce
Number Of Poles: 2/4

Product Description

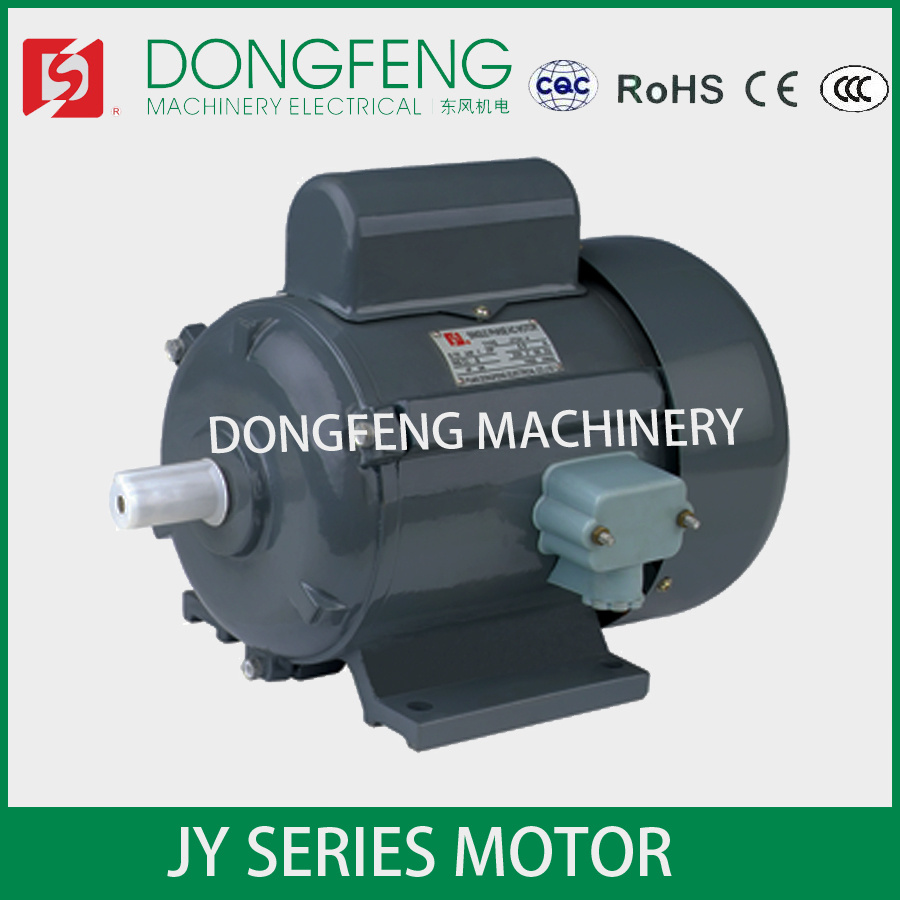

JY SERIES SINGLE PHASE CAPACITOR ASYNCHRONOUS MOTOR


INTRODUCTION

JY series single-phase capacitor start asynchronous motor, suitable for the occasion where have a large starting torque, but also have certain restrictions on the starting current, can be widely used in air compressor, refrigerator, medical equipment and various needs of full load starting small machinery
This series motors are totally enclosed fan cooled, 09, 1, 2 and three seat no.. According to the need can be made of cast aluminum or cast iron two.


Features: quite operation, low vibration, low power consumption, simple construction

Applications: air-compressor, pumps, fans, agriculture equipment, farming machine,small machines, etc.


OPERATING CONDITIONS
Ambient Temperature: -15ºC≤ θ ≤ 40ºC
Above Sea Level: not exceed 1000m
Rated Voltage: 220V, 110V ~ 240V is available
Rated Frequency: 50Hz or 60Hz
Insulation Class: Class B/F
Protection Class: IP44/54
Duty: S1




Technical Data
TypeInput PowerCurrent(A)Power FactorEFF(%)Speed(r/min)
KWHP
JY09B-20.180.252.150.76502800
JY09A-20.250.342.820.76532800
JY1B-20.370.53.740.75602800
JY1A-20.550.755.360.74632800
JY2B-20.751  6.810.77652800
JY2A-21.11.59.450.79672800
JY09B-40.121.61.70.63481400
JY09A-40.180.252.520.65501400
JY1B-40.250.343.20.67531400
JY1A-40.370.54.030.72581400
JY2B-40.550.755.120.74661400
JY2A-40.7517.270.76681400











OEM/ODM
WE WILL MEET YOUR REQUIREMENTS!


WELCOME TO CONTACT WITH ME:
Lynn Huang

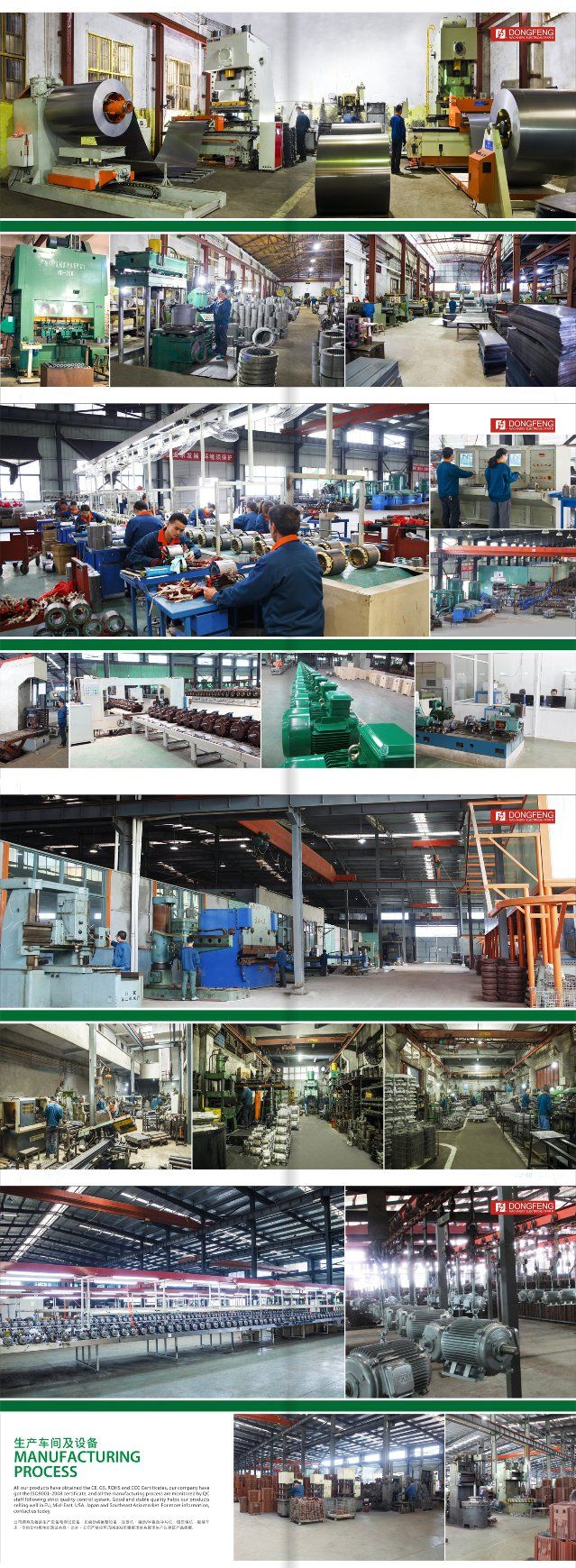

Since 1993, Fujian Dongfeng Machinery Electrical Liability Co., Ltd., as a professional electric motor manufacturer, has won a good reputation in the domestic and international market. We specialize in more than 20 series of electric motors based on the IEC standard, GOST standard and the IE1, IE2, IE3 efficiency request. By complying the strict quality control system, we have obtained the I S O 9 0 0 1 certificate, CE, CCC, RoHS certificates and etc. In order to improve the quality of our products and better control the cost in manufacturing, we produce the main spare parts of motors by ourselves, such as motor housing, lamination sheets, stator and rotor sets. And these parts are for exporting as well. Meanwhile, we have established a strong team with professional managing and marketing members, cooperating with experienced technicians to ensure the effective production and services (including OEM and ODM). With the efforts of our team, our monthly output has increase to 20, 000PCS at present. We never expect one-time business; We always look for the stable and long-term partnerships based on the mutual trust, good understanding and the continual support in each other. For more information, welcome to contact us, we will make every effort to be your best partner!
