China Factory Low Voltage C45 4p Rectangular Copper Busbars
| Price: |
US $ 5.83/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
MR-C45-4P |
| Products Name: |
C45 4p Rectangular Copper Busbars |
| Rated Current: |
32A, 40A, 50A, 63A, 80A, 100A, 125A |
| Rated Voltage: |
415V |
| Length: |
100cm |
| Appliable Ambient Temperature: |
-25~+50 |
| Application: |
Conduct Electricity |
| Type: |
C45 Type |
| Material: |
Red Copper (T2 99.6% ) |
| Production Process: |
Press |
| Shape: |
Pin |
| Certification: |
RoHS, ISO: 9001, SGS, Ce, TUV |
| Brand: |
OEM |
Product Description

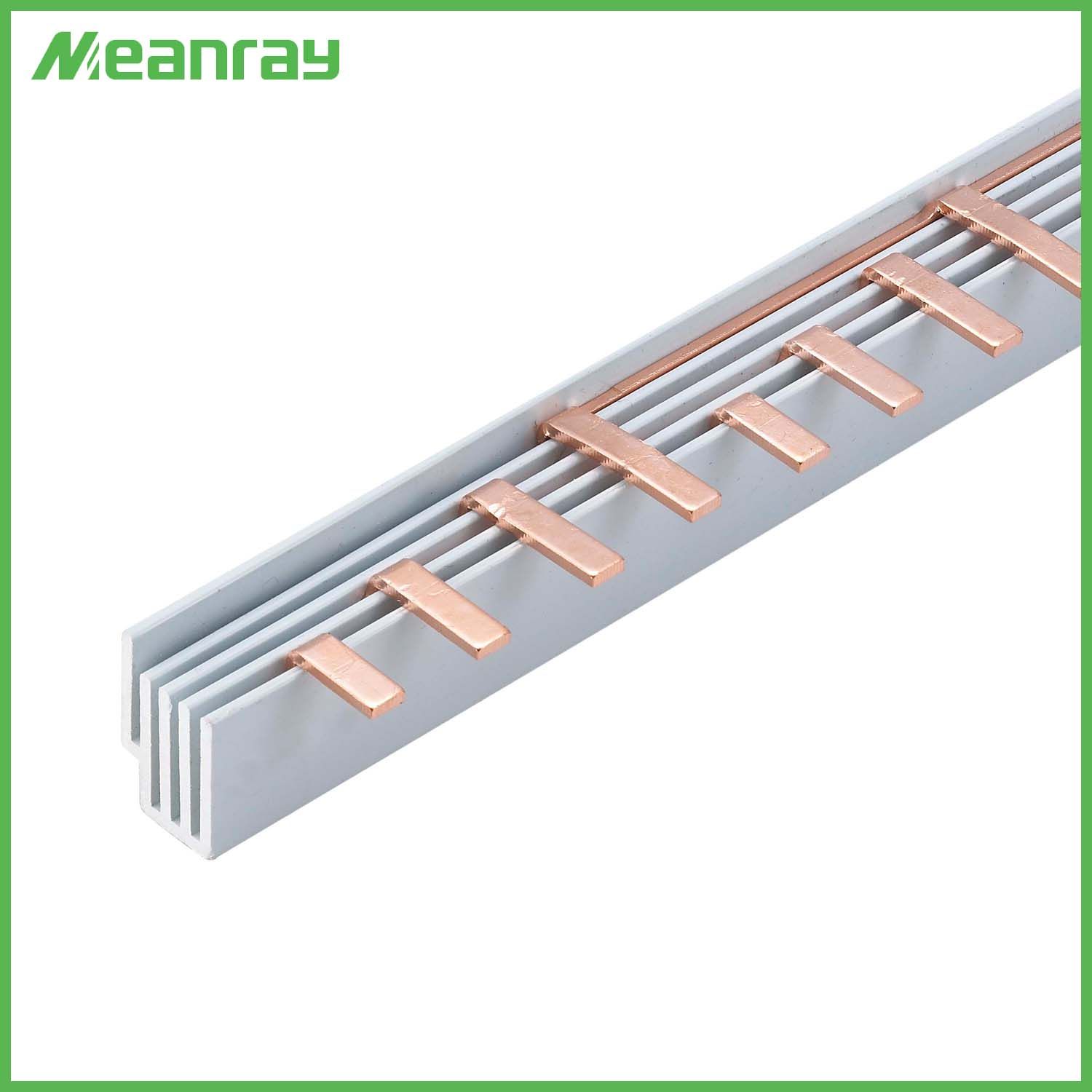

China Factory Low Voltage C45 4P Rectangular Copper Busbars
Product description of busbar:
Terminal Block Connector Pure Copper Busbar is used for kinds of circuit breaker, copper busbar 4p ease wiring electrical item,enlarge area, decrease temperature rise and thus increase the electric reliability of electrical items.
Technical features of busbar:
1. Material is of fire-resistant PVC and redl copper
2. Current rating is up to 125A
3. Rated voltage is up to 415V
4. Applicable ambient temperature -25~+50
5. Standard length 1m, other length tol be made upon request.
6. Good conductivity, low contact resistance, safe and reliable.

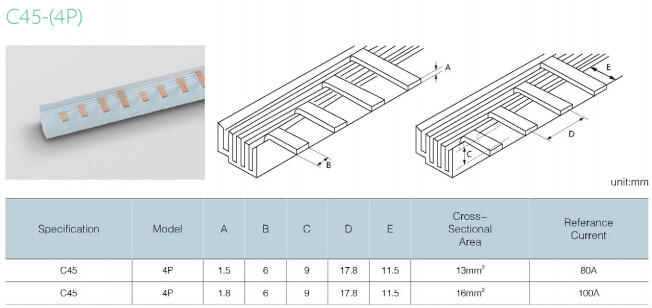

How to choose the busbar:
Packing information: | C45 TYPE copper busbar | Dimension | PCS/CTN | Packing | G.W kgs | N.W kgs | Material |
| C45-1P-20A | 1.0*5mm | 200 | 101*22*12 | 26 | 25 | Brass |
| C45-1P-32A | 1.0*5mm | 100 | 101*12*9 | 14 | 13 | Copper |
| C45-1P-40A | 1.2*5mm | 100 | 101*12*9 | 16 | 15 | Copper |
| C45-1P-63A | 1.5*7mm | 100 | 101*14*10 | 21 | 20 | Copper |
| C45-1P-80A | 1.5*9mm | 100 | 101*14*10 | 23 | 22 | Copper |
| C45-1P-100A | 1.8*9mm | 100 | 101*14*10 | 26 | 25 | Copper |
| C45-1P-125A | 2*10mm | 100 | 101*14*12 | 30 | 29 | Copper |
| C45-2P-20A | 1.0*5mm | 100 | 101*22*12 | 26 | 25 | Brass |
| C45-2P-32A | 1.0*5mm | 100 | 101*22*12 | 26 | 25 | Copper |
| C45-2P-40A | 1.2*5mm | 50 | 101*14*10 | 16 | 15 | Copper |
| C45-2P-63A | 1.5*7mm | 50 | 101*14*10 | 18 | 17 | Copper |
| C45-2P-80A | 1.5*9mm | 50 | 101*14*10 | 20 | 19 | Copper |
| C45-2P-100A | 1.8*9mm | 50 | 101*14*12 | 23 | 22 | Copper |
| C45-3P-20A | 1.0*5mm | 50 | 101*16*14 | 19 | 18 | Brass |
| C45-3P-32A | 1.0*5mm | 50 | 101*16*14 | 19 | 18 | Copper |
| C45-3P-40A | 1.2*5mm | 50 | 101*16*14 | 20 | 19 | Copper |
| C45-3P-63A | 1.5*7mm | 50 | 101*22*10 | 26 | 25 | Copper |
| C45-3P-80A | 1.5*9mm | 30 | 101*22*10 | 29 | 28 | Copper |
| C45-3P-100A | 1.8*9mm | 50 | 101*22*12 | 24 | 23 | Copper |
| C45-3P-80A | 1.7*8mm | 50 | 101*22*10 | 30 | 29 | Copper |
| C45-3P-100A | 2*10mm | 30 | 101*14*10 | 26 | 25 | Copper |

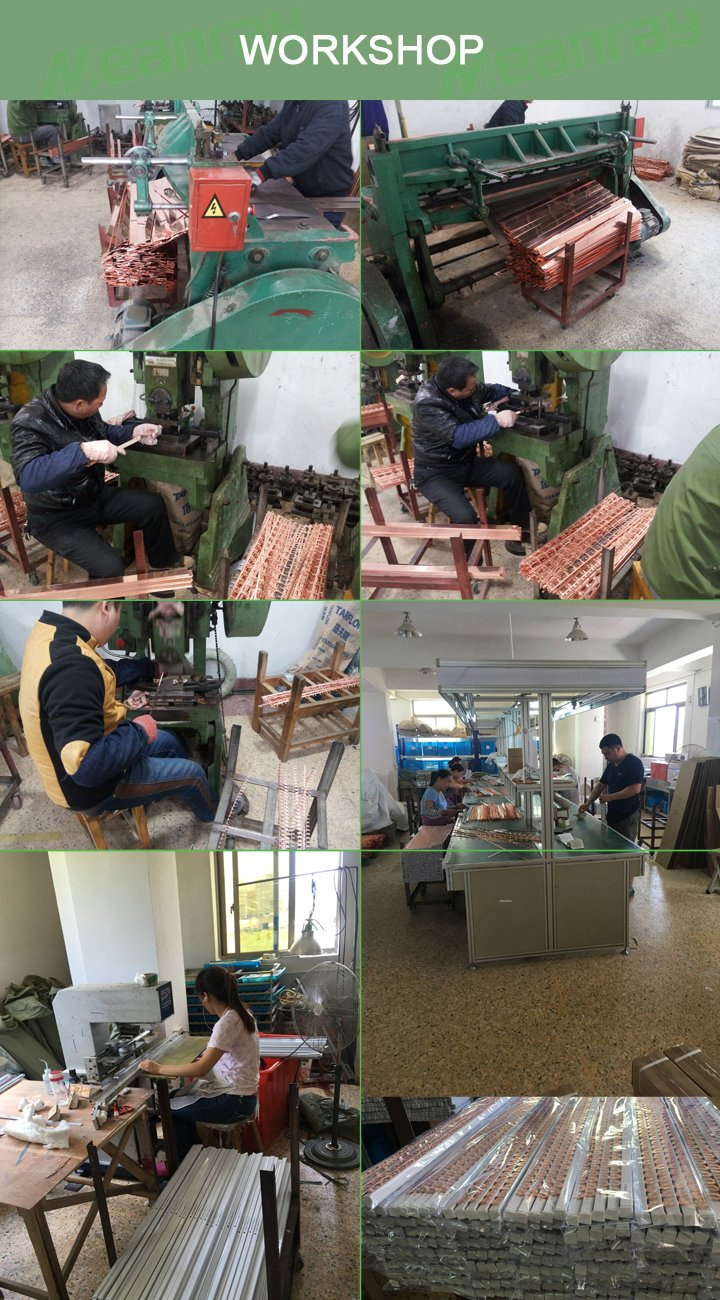

Workshop for busbar:

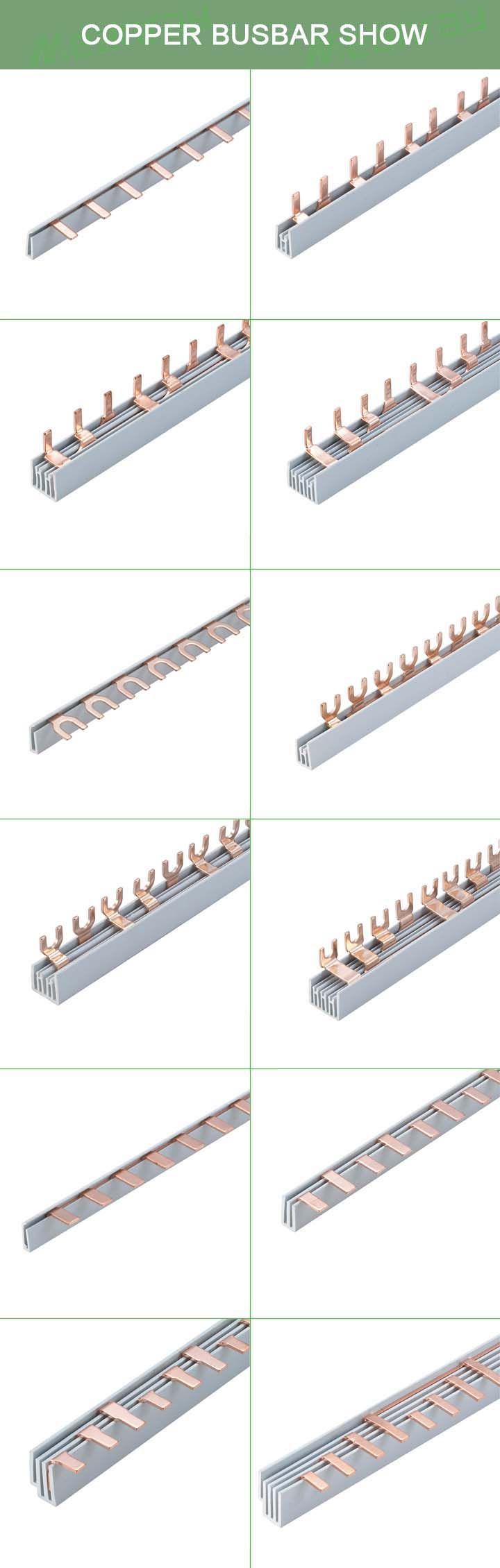

Copper busbar show:
FAQ of busbar: Buyer: If we need some sample, whether you can supply?
Seller: Yes, we can.
Buyer: Our current is 63A, is ok?
Seller: Our max current is 125A. the current is less than 125A, is ok.
Buyer: Can we use our LOGO?
Seller: Yes, we can use your LOGO and company information
Buyer: C45 type copper busbar only used for C45/DZ47 circuit breaker?
Seller: No. Used for kinds of MCB. More contact area and conductive performance is better
Zhejiang MEANRAY is committed to the field of new energy, specializing in solar photovoltaic and wind power products. It is a company which engaged in research and development, production, sales and after-sales. After years of intensive development in the field of new energy and electrical industry, it has become the main manufacturer of new energy electrical appliances in China, and has become the international famous brand OEM partner.
The wide range products under our manufacturing covers DC Circuit Breaker, Surge Protector Device, DC MCCB, Fuse, Isolator switch, PV Combiner box, Solar Cable, MC4 Connector, Distribution Box and Switch. All products are in strict accordance with the international Electrotechnical Commission standards and national and industry standsard production. Products have passed CE, CB, SAA, NEMKO, VDE, CCC certificates. Products are widely used in solar power, wind power, metallurgy, electromechanical, railway, ship, port, petrochemical, iron and steel, coal mines, residential areas, shopping malls and other industries of power supply control system.
The company has a modem management team and scientific research personnel. In line with people-oriented, relying on new technology and new products, adhere to the excellent quality and advanced products performance to meet the constantly changing market demand. Now has exported to Europe Spain, Italy, Holland, Southeast Asia, Australia, the Middle East and other international markets.
In the face of a new future, the company will adhere to the purpose of "honesty, steadfast, quality and trust", relying on advanced modern enterprise management, deepening the internal management of enterprises, comprehensively promoting the quality assurance system, and developing the spirit of "serving customers". Adhering to the concept of "service and trust", the professional service team participates in the whole process. Strive to bring high quality shopping experience to each customer. Strive to create a new era of shopping.
Save limited energy, clean the world...MEANRAY together with you.
