| Prod Model: |
PX120/12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
120kVA |
| Modular Power: |
12kVA |
| Power Factor: |
0.9 |
| AC Input: |
200V/208V/220V(Line to Line) |
| AC Output: |
200V/208V/220V(Line to Line) |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Phase: |
3 Phases + Neutral + Ground |
| Brand: |
Jetpower |
Product Description

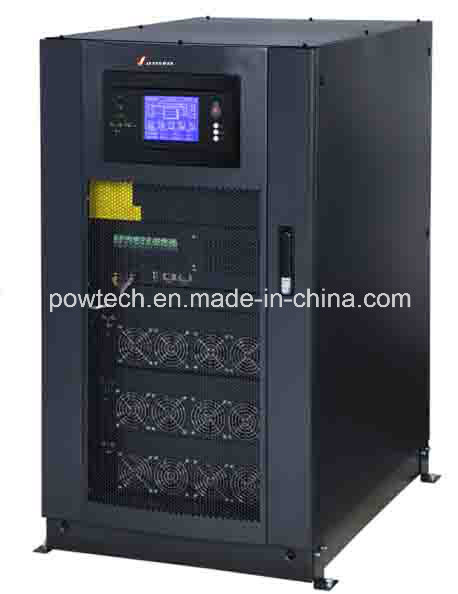

China Famous Brand Modular UPS , 120KVA Modular UPS System with Power Module 12KVA
Capacity:120KVA
Modular qty: 10pcs
Modular power: 12KVA
The Phoenix120/12 Modular UPS provides the most compact footprint of less than 2 with maximum capacity of 120KVA. With best reliability and high performance, it has been leading the domestic market for years.
Phoenix120/12 is considered to be the best power protection solution for large data centers, as well as for sensitive electronics.
Features
(1) Modular design with N+X redundancy, online hot-swappable
(2)High power density with footprints of less than 2 up to 900KVA in parallel, 30KVA power module with height of only 3U
(3)Green and energy saving: AC/AC efficiency>95%, input power factor>0.99 while input THDi<3%
(4)Full DSP control of high stability, reliability and safety
(5)Integrated IGBT module with improved performance and reduced size
(6)Excellent input performances for complete compatibility with input PF of 99% and wide range of voltage
(7)Self-Aging mode for full load test with less than 10% of the total power capacity needed
(8)Smart Sleeping mode for energy saving and prolong the life time of the system
(9)Optimized battery management, intelligently control the whole process of the charging and discharging, effectively improve the life time of the battery
(10)Battery cold start, starting up without main input
(11)Automatically record the critical wave information when fault happen, easy for trouble shooting
(12)Monitor runtime of critical components, such as fans and capacitors, settable alarm for service period
(13)Independent LCD display for each power module with self-starting function
(14)Programmable dry contacts, the function of each port can be defined by users
(15)Friendly human machine interface with colorful touch screen of 10.4 inches
Modular UPS
| MODEL | PX 200/20
PX 150/15
PX 100/10 | PX 120/20
PX 090/15
PX 060/10 | PX 060/20
PX 045/15
PX 030/10 | PX L120/12
PX L100/10
PX L060/06 | PX L072/12
RML060/10
RML036/06 | PX L036/12
PX L030/10
PX L018/06 |
| Capacity | 10-400KVA | 6-240KVA |
| Power Module Type | PM20/PM15/PM10 | PML12/PML10/PML06 |
| NPUT |
| Phase | 3 Phases + Neutral + Ground |
| Voltage | 380V/400V/415V(line to line) | 200V/208V/220V(line to line) |
| Frequency | 50/60Hz |
| Power Factor | >0.99 |
| THDi | THDi<3% @100% linear load |
| Voltage Range | -20%~25% | -20%~25% |
| Frequency Range | 40Hz~70Hz |
| OUTPUT |
| Voltage | 380V/400V/415V | 200V/208V/220V |
| Voltage Regulation | ±1%(Balance load); ±1.5%(Unbalance load) |
| THDu | THD<1.5%(linear load ),THD<6%(None linear load) |
| Power Factor | 0.8 |
| Crest Ratio | 3:1 |
| Overload Capability | 110% for 1 hour; 125% for 10 minutes ;150% for1 minute; >150% for 200ms |
| BATTERY |
| Voltage | ±240VDC | ±120VDC |
| Charge Power | 20%*System Power |
| Charge Power Precision | ±1% |
| SYSTEM |
| System Efficiency | Normal mode:95%; ECO mode:98%;
Battery mode:95% | Normal mode:92%; ECO mode:98%;
Battery mode:90% |
| Display | LCD+LED, Touch Screen +Keyboard |
| IP Class | IP20 |
| Interface(Communication Port) | RS232,RS485,Dry contacts, SNMP card, EPO |
| Operation/Storage Temperature | 0~40ºC/-40~70ºC |
| Relative humidity | 0~95%(non-condensing) |
| Noise | 55dB(1 meter away) |
| PHYSICAL |
| Weight | Cabinet | 10-Slot cabinet:182Kg; 6- Slot cabinet:151Kg; 3-Slot cabinet:120Kg; |
| Power Module | PM20:22Kg; PM15:21Kg; PM10:20Kg | PML12:22Kg; PML10:21Kg; PML06:20Kg |
Dimension
(W*D*H)(mm) | Cabinet | 10-Slot cabinet: 600*900*2000; 6-Slot cabinet: 600*900*1600; 3-Slot cabinet:600*900*1100 |
| Power Module | PM20/PM15/PM10:440*590*134 | PML12/PML10/PML06:440*590*134 |
