China Forging pH Type Pole Line Hardare Chain Link Extension Ring - China Extention Ring, Chain Link

Name: China Forging pH Type Pole Line Hardare Chain Link Extension Ring - China Extention Ring, Chain Link
Brand: all-electronics-online.com
SKU: 714146462
Availability: InStock
Rating: 4.8 (65 reviews)

Price:	US $ 0.5-4/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Operation:	Electric Type
Installation:	Fixed
Structure:	ELCB
Certification:	CCC
Breaking Capacity:	Electric Power Grid, Communication Power Rail Li
Speed:	No
Arc-extinguishing Medium:	No
Poles Number:	No
Type:	pH-7,pH-10,pH-16,pH-21
Function:	Link

Product Description

hot-dip galvanized steel,link fitting are used to link clamps to insulator
1. Material: Galvanized Steel
2. Product quality has reached to IEC standard
3. Packing: Standard export seaworthy and plywood case packing or follow buyer's request
4. Delivery: Within 3 weeks after receipt of client's prepayment or L/C.
For opening a new mold then delivery time need undetermined.

Product Description

Quick details:
Model NO.: pH Type                                                   Color: Silver White
Origin: Heibei, China                                               Brand Name: as per customers' requirements
Certification: ISO9001:2008                                       Packaging Details: carton boxes                                      Export Markets: Global
Trademark: as per customers' requirements
Packing: Carton Packing and According to Your Requirements

Product Description

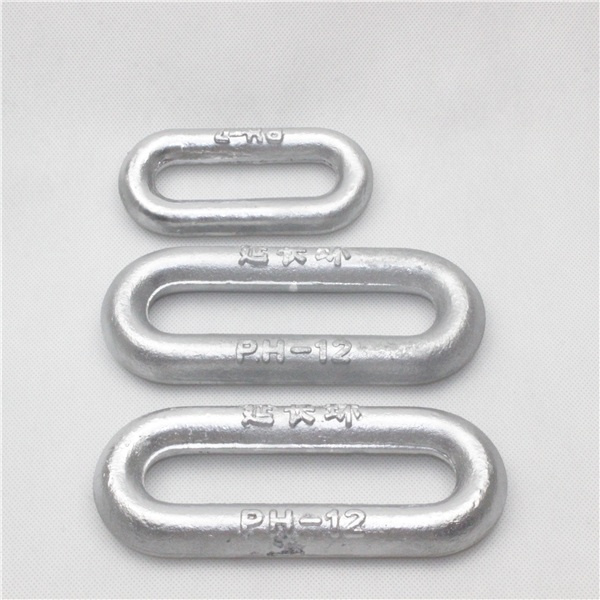

Forging pH Type Pole Line Hardare Chain Link Extension Ring
1,Chain Link/Extension Ring for Pole Line
2. Failure load(KN): 70~500
3. Weight(kg): 0.38~2.9KG,
4. Surface: Smooth
5. Material: Forged Steel

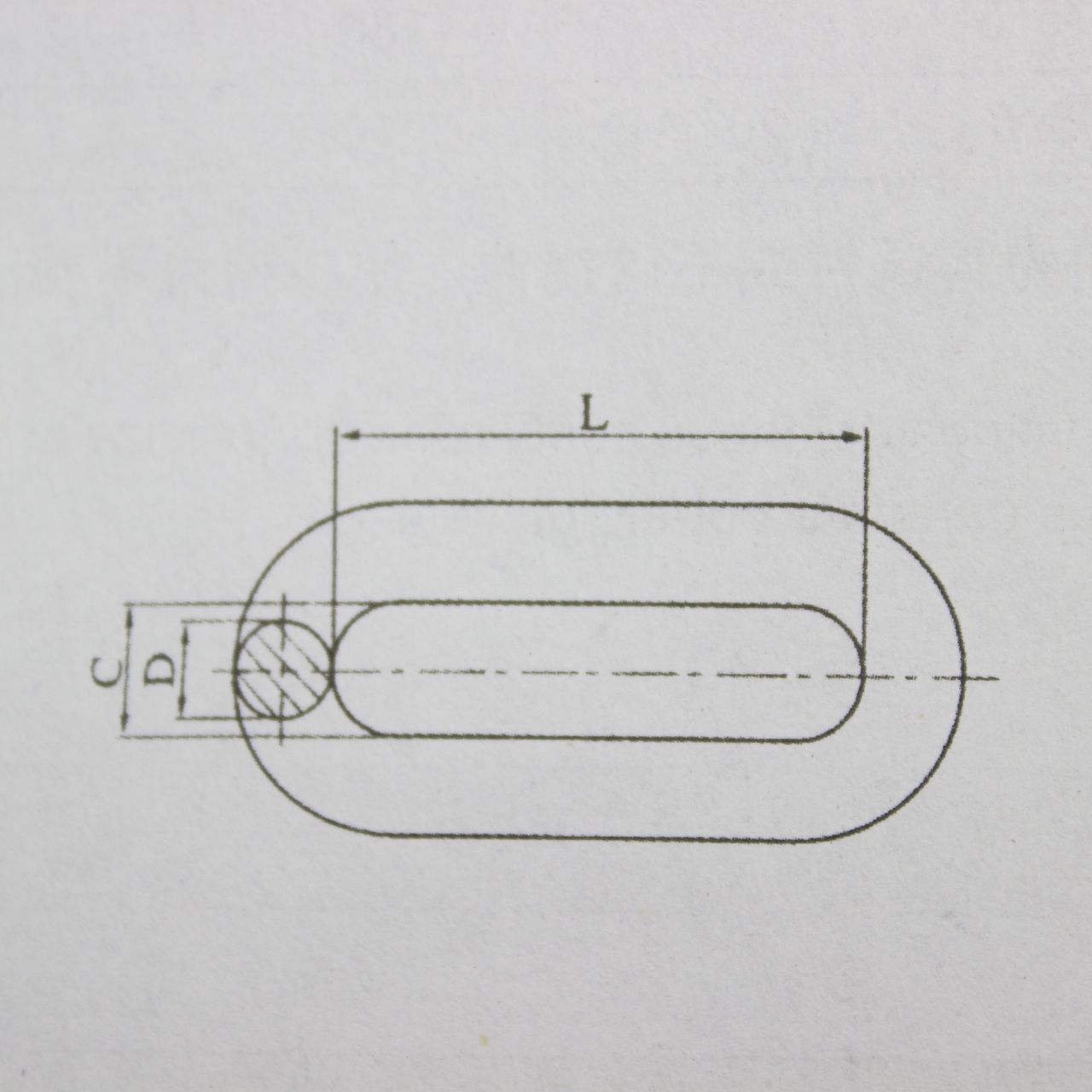

Type	Main Size (mm)			Load (kN)	Weight (kg)
Type	B	C	L	Load (kN)	Weight (kg)
PH-7	16	20	80	70	0.38
PH-10	18	22	100	100	0.56
PH-12	20	24	120	120	0.8
PH-16	22	26	140	160	1.11
PH-21	24	30	160	210	1.6
PH-25	26	34	160	250	2
PH-30	30	38	180	320	2.9

Link fitting are used to link clamps to insulator or to link insulator and ground wire clamp to tower arms or subjection structure. Link fitting have special type and common in accordance with mounting condition. The special type includes the ball-eye and an socket clevis linking with insulator. The common type is usually pin connected type. They have different grades in according to the load and are exchangeable for the same grade.
