China Good Quality Opening Window Type Current Transformer

Name: China Good Quality Opening Window Type Current Transformer
Brand: all-electronics-online.com
SKU: 688874332
Availability: InStock
Rating: 4.6 (53 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	FU-30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types:	Window Type Current Transformer
Dimensions:	83mmx129mmx28mm
Output Mode:	Terminal Output
Class:	0.5, 1
Ratio:	200-600A/5A or 200-600A/1A
Weight:	0.5kg
Load:	2.5va
Diameter:	30mm
Color:	Black
Installations:	with Electric Power
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

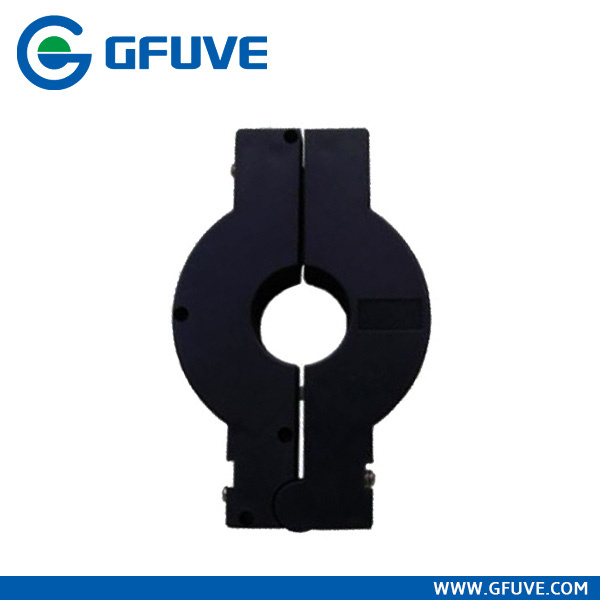

FU-30 China Good Quality Opening Window Type Current Transformer

Characteristic and application: Avaliable for cable that under 600A online measurement
Diameter of clamping wire: φ 30MM
Overall dimensions: 83MMx129MMx28MM
Load capacity: ≤ 4Ω (MA output), 0.1Ω (1A output), 2.5VA(5A output)
Installation: Suspension, use the screws to tighten the opening, can be equipped with mounting bracket
Output mode: Terminal output

Technical parameter

Technical parameters
Standards	IEC/EN60044-1 & IEC61010-1 & IEC61869-2&ANSI C57.13
Ratio	200: 1 or 400:5 , customized
Nominal input current(Primary current)	200A/300A/400A/500A/600A
Overload withstand	1.2 times rated current continuously
Accuracy	0.2%, 0.5 %, 1%
System Voltage	720V(0.72kV)
Output signal	1A or 5A 333mV AC or 100mV-2V optional
Burden	2.5VA
Frequency range	40 Hz....500 Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Output mode	Terminal output
Max. jaw opening	30 mm
Mechanical parameters
Dimensions (W×D×H) (mm)	83mm x 129mm x 28 mm
Weight (g)	400
Operating conditions
Operating temperature	-25 to +55°C
Relative Humidity	0-85% non-condensing
Altitude	<3500 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.
