China Growatt on Grid 1000W Solar Power Inverter 1kw for on Grid System
| Price: |
US $ 350-400/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
Growatt 1000-S |
Product Description
First-Class Brand Growatt Create
1000W -S Series Grid Tied Solar Inverter
Single MPPT,Single Phase
|
| Product Features |
| Maximum efficiency of 97.6% | wide input voltage range | Internal DC switch |
| Transformerless GT topology | Compact design | Ethernet/RF technology/Wi-Fi |
| Sound control | Easy installation | |

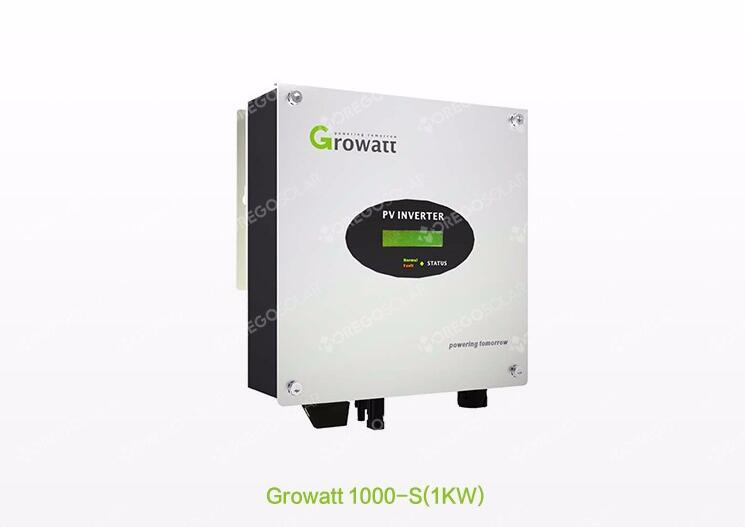

Real Shot
|
Item | Model Parameter | Growatt 1000-S |
| Max. DC power (W) | 1300 |
Max. DC voltage (V) | 450 |
Start voltage (V) | 80 |
PV voltage range (V) | 70-450 |
MPP work voltage range/ nominal voltage (V) | 70-450/180 |
Full load dc voltage range (V) | 110-400 |
Max. input current (A) | 10 |
Max. input current per string (A) | 10 |
Number of independent MPP trackers / strings per MPP tracker
| 1/1 |
| Rated AC output power (W) | 1000 |
Max. AC power (W) | 1000 |
Max. output current (A) | 4.7 |
AC nominal voltage; range | 220V/230V/240V; 180Vac-280Vac |
AC grid frequency; range (Hz) | 50,60 ;±5 |
Power factor | 1 |
THDI | <3% |
AC connection | Single phase |
| Max. Efficiency | 97.4% |
Euro weighted efficiency | 96.5% |
MPPT Efficiency | 99.5% |
| DC reverse polarity protection | yes |
DC switch rating for each MPPT | yes |
Output over current protection | yes |
Output over voltage protection-varistor | yes |
Ground fault monitoring | yes |
Grid monitoring | yes |
Integrated all - pole sensitive leakage current monitoring unit | yes |
| Dimensions (W / H / D) in mm | 271/267/142 |
Weight (kg) | 6.1 |
Operating temperature range | -25°C ... +60°C (-13...+140ºF) with derating above 45°C /113ºF |
Noise emission (typical) (dB) | ≤ 25 |
Altitude (m) | 2000(6560ft) without derating |
Self-Consumption night (W) | <0.5 |
Topology | transformerless |
Cooling concept | Natural |
Environmental Protection Rating | IP65 |
Relative humidity | 100% |
| DC connection | H4 |
AC connection | connector |
Display | LCD |
Interfaces: RS232/Wifi | yes/opt |
Warranty: 5 years | yes |
Certificates and approvals | CE, VDE 0126-1-1, VDE-AR-N-4105,IEC 62109, G83, AS4777, NBT32004-2013, EN50438, CEI 0-21,INMETRO |
Inverter Overview
Position | Description |
A | The front enclosure lid |
B | LCD |
C | State LED |
D | DC switch |
E | PV input terminals |
F | AC Output |
G | Waterproof breathable valve
|
H | RJ 45 Port |
Symbol on the inverterSymbol | Description | Explanation |
| Tap symbol | Setting the display operation by tapping the LCD |
Normal Fault ○ STATUS | Inverter status symbol | Indicates inverter operation status |

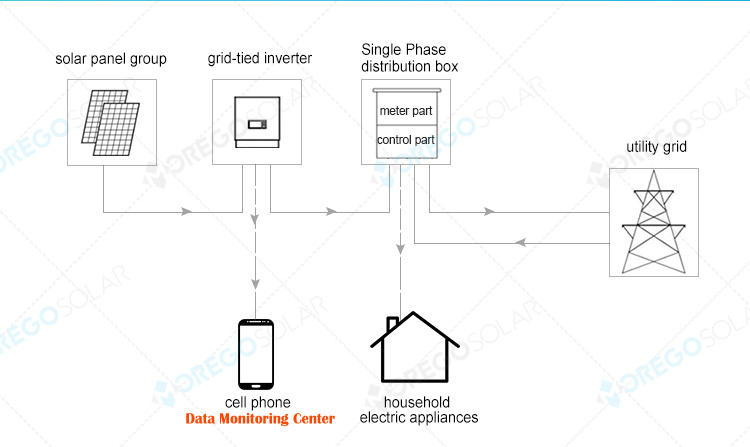

Installation Diagram
Monitoring SystemGrowatt Global Monitoring system
The user of Growatt inverter can choose the inverter independently.They can choose through the photovoltaic power station Internet monitoring global deployment, all-weather automatic data collection with enterprise specific data server, also can through the mobile phone client application software (ShinePhone) or browser to access the site, get the information of photovoltaic power station.Summary of ShineServerShineServer is a photovoltaic power station remote monitoring center system specially developed by Growatt, visual display the number of PV power plant operation data, including power generation, power gains, CO2 emission reduction benefits, equipment running status and equipment of real-time data and historical data query etc..

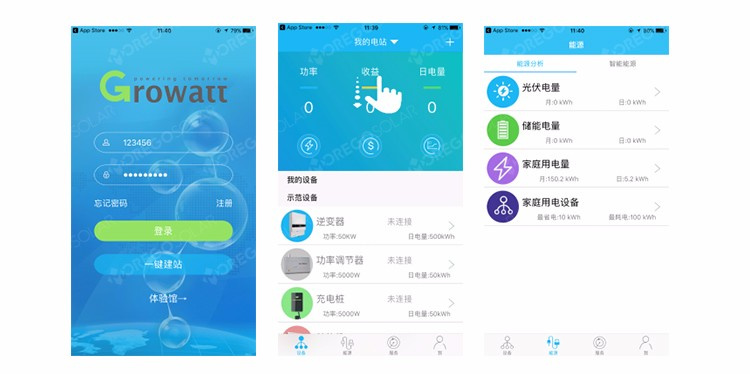

Summary of ShinePhoneShinePhone is a photovoltaic power plant monitoring client software, which can obtain the operation parameters of photovoltaic power station from data center, such as power generation, power generation benefits, equipment status, etc., to achieve remote wireless access of power plants.
