China Gw9 Series Outdoor High Voltage Disconnecting Switch - China Isolator Switch, High Voltage Isolator Switch

Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Un Grounded
Series:	Three
Run:	Turn the Horizontal
Switching Mode:	Double-Throw Type
Certification:	CE
Brand:	Safee

Product Description

Product Description
GW1-10/15/20 KV series of outdoor high voltage isolating switch is applicable to three-phase ac 50 hz, rated voltage 10 KV / 15 KV / 20 KV outdoor high voltage electrical equipment.For high voltage line without load exchange, as well as to be maintenance of electrical equipment such as high voltage bus, circuit breaker with charged electrical isolation of high voltage line.Also can be divided into small capacitance and inductance current.
GW1-10/15/20 KV series of outdoor high voltage isolator is aiming at some problems of the original GW1 type and combined with the latest requirements of users to design, its design is simple and reasonable structure, copper and aluminum alloy fittings, stainless steel fasteners and hot dip galvanized base, has a good anti-fouling and corrosion resistant ability, reliable performance, light weight, easy installation, no need for periodic cleaning and maintenance, is the urban and rural areas of 10 to 20 KV distribution line segment, branch and maintenance period of breaking point of a clear and convenient outdoor high voltage electrical equipment.
Technical parameters:

Model	Rated voltage(KV)	Rated current(KA)	Rated short-time resistance current(KA)	Rated current peak tolerance(KA)
GN19-12/400-12.5	12	400	12.5	31.5
GN19-12/630-20	12	630	20	50
GN19-12/1000-31.5	12	1000	31.5	80
GN19-12/1250-31.5	12	1250	40	100
GN19(C)-12/400-12.5	12	400	12.5	31.5
GN19(C)-12/630-12.5	12	630	20	50
GN19(C)-12/1000-12.5	12	1000	31.5	80
GN19(C)-12/1250-12.5	12	1250	40	100



Parameter Table
	Items		Technical parameter
No	type		GW9-10	GW9-15	GW9-20
1	Rated Voltage                       kV		10	15	20
2	Max working voltage         kV		12	17.5	24
3	Rated frequency         Hz		50
	Rated current               A		400	630	1250
4	Rated Short Time withstand current and Time            kA/s		20/4	25/4	31.5/4
5	Rated Peak withstand current              kA		50	63	80
6	1min power frequency  withstand voltage (effective value)    kV		To earth	42	45	65
			To phase	53	55	79
7	Lightning Impulse wishstand voltage(peak value) KV		To earth	75	105	125
			To phase	85	120	145

General
GW4A-40.5 D(W) isolating switches are kinds of outdoor HV electricity transmission equipments at three phase AC frequency of 50Hz/60Hz. It is used for breaking or connecting HV lines under no loads so that the power lines can be changed and connected and the way the electricity runs is changed. In addition, it can be used to exerise safe electrical insulation for such HV electric apparatuses as bus and breaker.
This product has two insulators with horizontal center breaks. It is openable in the middle and accessible to the grounding switch on one side or two sides. The isolating switch adopts CS14G or CS11 manual operating mechanism ro CJ2 motor based operating mechnism to realize the tri-pole linkage. The grounding switch adopts CS14G manual operating mechanism to actualize tri-pole linkage.

Technical Data

S/N	Item	Unit	Parameter
1	Rated voltage	kV	40.5
2	Rated insulation level
3	Rated power frequency withstand voltage (1 min)
4	To earth	kV	95
5	Across open breaks	kV	118
6	Rated lightning impulse withstand voltage
7	To earth	kV	185
8	Across open breaks	kV	215
9	Rated frequency	Hz	50/60
10	Rated current	A	1250 2000 25000 3150 4000
11	Rated short-time withstand current	kA	31.5 40 50
12	Rated peak withstand current	kA	80 100 125
13	Rated duration of short circuit Primary switch/ earthing switch	s	4/4
14	Rated terminal mechanical load
15	Horizontal -logntitudinal	N	750
16	Horizontal- vertical	N	500
17	Vertical force	N	750
18	Creepage distance	mm	1013 1256
19	Mechnical endurance	times	5000
20	Motor operating mechanism
21	Model		CJ2
22	Motor voltage	V	AC 380 DC220 DC110
23	cControl circuit's voltage	V	AC 380 AC 220 DC220 DC110
24	Opening time and closing time	s	7+/-1
25	Manual operating mechanism
26	Model		CS14G
27	Electromagnetic lock's voltage	V	AC 380 DC220 DC110

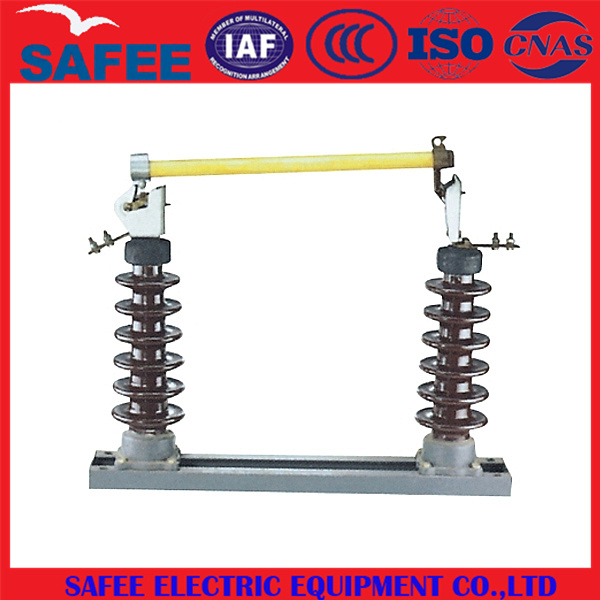

GW9-12 Series outdoor high-voltage isolation switch

1. Product Description
        GW9-12 Series outdoor high-voltage isolation switch is a single-phase AC 50Hz AC high voltage switchgear for rated voltage 10KV power system in as little pressure with no load division circuits together. Isolation switch actuator rod with insulated hook.

2.  Structure Introduction
       The isolation switch is a single-phase structure, each phase consists of a chassis post insulator, conductive parts. Knife with fixed upper and self-locking retractor means for insulating rods hook opening and closing purposes. Isolating switch can be vertical or inclined installation.

3.  Type meaning
G W 9 - 12/630
G W: Outdoor AC Switch
9: Design number
12: Rated voltage
630: Rated current

4.  Isolation switch technical parameters

Type	Rated voltage	Rated current	Rated peak withstand current	Rated short time withstand current	Rated short duration	Remark
GW9-12/630	12	630	40	16	4	With self-locking

GW9 series outdoor H.V. isolating switch used for rated voltage 10-38Kv power system. The isolation section available in porcelain insulator or polymer insulator.

Type	Rate voltage KV	Rate current(A)	Momentary current(A)	BLK KV	Short Time Withstand Current 2S A
GW9-15G/400	15	400	40000	125	25000
GW9-15G/630	15	630	40000	125	25000
GW9-15G/630	15	900	40000	125	25000

 MV Outdoor Off-Load Isolator Switch
(Alternating current disconnector)

TECHNICAL  SPECIFICATION
Scope
Type IST off-load switchs are suitable for use in tropical zone, with a maximum ambient temperature of approximately 40 degrees Centigrade and an average temperature of approximately 28 degrees Centigrade with high humidity and heavy rainfall. The preferred operational altitude is up to 1800 m above sea level.
Electrical System
Type IST off-load isolator switch are designed for continuous operation on a 3-phase 3-wire 11, 15,22,24,27and 33,36kV,50/60Hz distribution system with the star-point of the source-point transformer earthed through an Arc Suppression Coil or Earthing Resistor.
Standards
Type IST off-load isolator switch are complied with relevant requirements of the following standards together with all current amendments;
 IEC62271-102:2003 :High-voltage alternating-current disconnectors and earthing switches
      IEC60129:1984    :Alternating current disconnectors and earth switches
      IEC 60265-1:1998  :High voltage switches - Part 1:Switches for rated
                       voltage above 1kV and less than 52kV
      IEC 60694: 1996   :Common specifications for high-voltage switchgear and
                       controlgear standards
      IEC 60815:1986    :Guide for the selection of insulators in respect of
                        polluted conditions
      BS EN ISO 1461     :Hot dip galvanized coatings on fabricated iron and
                                steel articles- Specifications and test methods
4.0                     Construction
4.1                     General
4.1.1                Type IST off-load isolator switchs  are the vertical/Horizontal  mounting
Type for mounting on a single or H-pole structure for overhead
lines or feeders from the energized sections.

4.1.2                Type IST off-load isolator switchs are compatible and ready for
installation on tubular steel poles and spun concrete poles.
 4.1.3    The design are of an air insulated "rocking insulator"
type with two fixed insulator posts and one moving
insulator post per phase.

4.1.4     All steel and iron parts shall be galvanized to protect from corrosion as
per BS EN ISO 1461

            4.1.5    Type IST off-load isolator switchs are  equipped with a single operating mechanism and suitable coupling bars that shall operate all phases simultaneously and that independent operations of each
                       pole,irrespective of the state of the other poles,is not permitted
Gw4 Serial Outdoor A/C High Voltage Isolator factory
Specifications

1.Professional Manufacture of China
2.Multi protection functions
3.CE,FCC,LVD&ROHS reports


Product Description
Model No: GW4-12/17.5/24
Type: GW4-12/17.5/24 Outdoor High Voltage Disconnector/ Isolator Switch

Disconnector switch is high voltage switch equipment of single phase AC50Hz. The product is suitable for power system with rated voltage 12kV to break power supply under circumstances of with voltage and nomload. The isolator is adopts isolated hook rod to operate.

No	Item		Parameter
1	Rated Voltage                                  kV		10	15	20
2	Rated Current                                  A		200, 400, 630, 1250, 1600, 2000
3	Rated Short Time Current Bearing and Time                                kA/s		25~50/4
5	Rated Peak value bearing current  kA		63~125
6	1min power frequency voltage bearing (effective value) kV	Ground	28	40	50
		Fracture	32	47	60
7	Lightning Impact voltage bearing (peak value)kV	Ground	60	105	125
		Fracture	70	120	145
8	Max Man Operative Moment    N. m		200
