China High Efficient Permanent Magnet Motor

Name: China High Efficient Permanent Magnet Motor
Brand: all-electronics-online.com
SKU: 729332602
Availability: InStock
Rating: 4.5 (132 reviews)

Price:	US $ 200-150000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

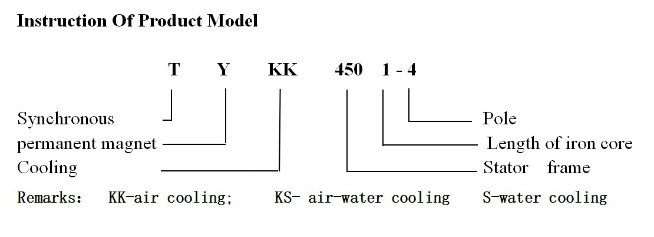

Prod Model:	TYKK
Application:	Industrial
Magnetic Structure:	Permanent Magnet
Structure:	Rotating Pole Type (',Armature Fixed)
Ventilation:	Closed
Operating Speed:	1000r/Min
Operation Mode:	Self-Starting
Number Of Poles:	Six-Pole
Certification:	TUV
Brand:	Enn

Product Description

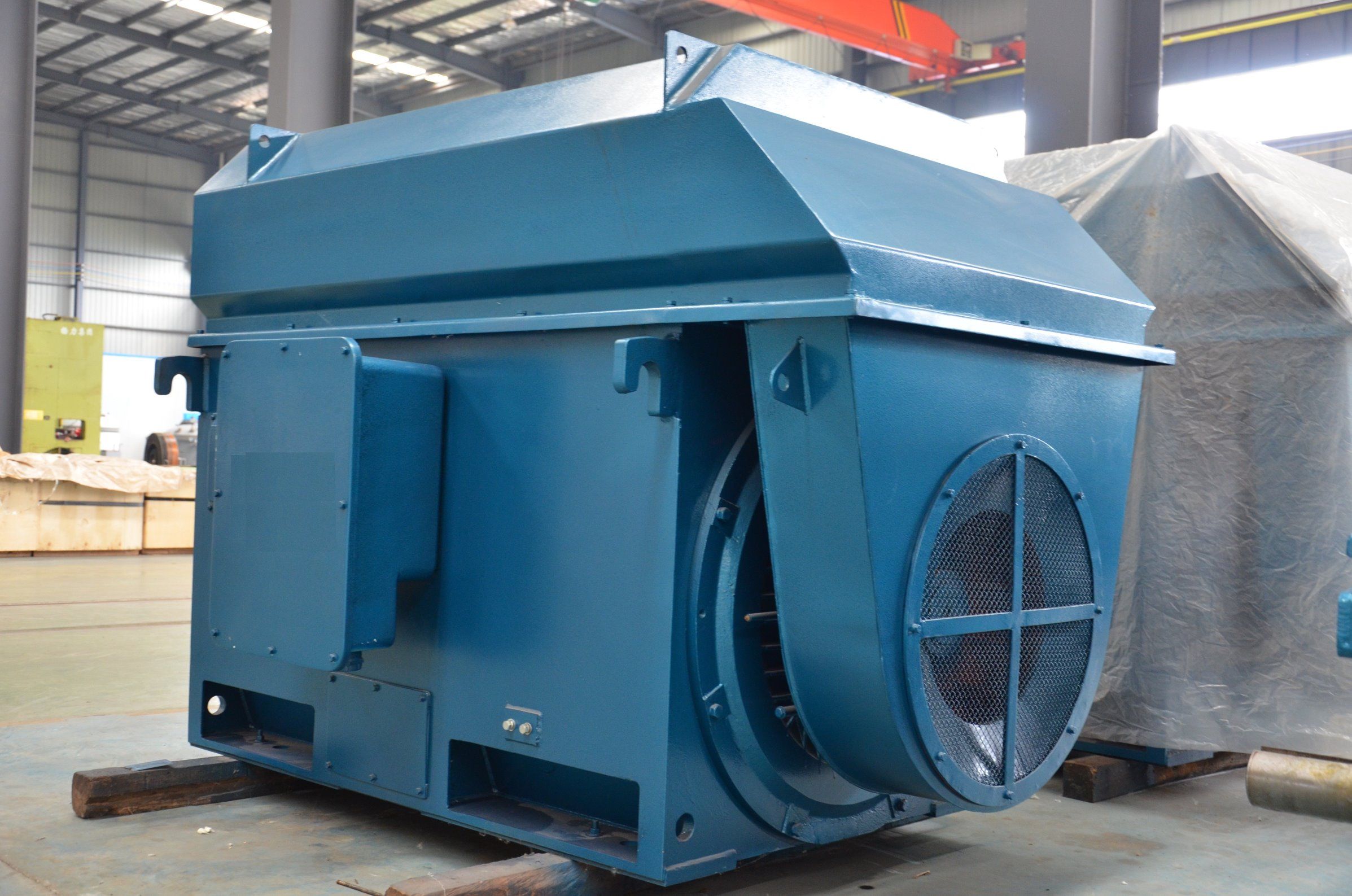

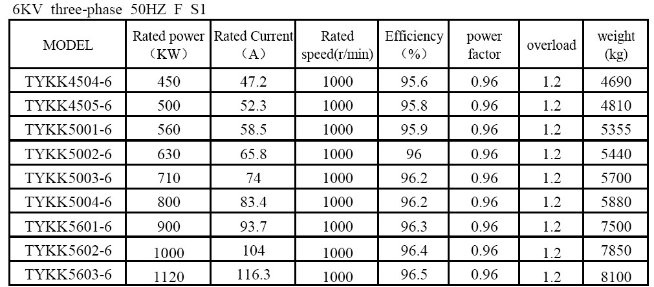

TYKK series high voltage PM motors (6KV Frame355-630)
The efficiency index of TYKK series accords to the first level standard of GB 30254-2013 "energy efficiency and rating of high voltage three - phase cage asynchronous machine".
TYKK series have self start-up ability as well as more efficient and have wider economical operation range with significant energy saving effect in 25% -120% load range relative to the same specifications of asynchronous motors. Under the rated load, motor's temperature rise is controlled in 30-50K.
The motor's nominated voltage is 6KV with three-phase and rated frequency. When under nominated voltage, it can be self-started. Also, motors of this series are widely applied in electric power, water treatment, petroleum, chemical, building materials, textile, metallurgy, mining and other industries, to drive a variety of production machinery.
The basic products for the TYKK series are air cooling, IP54 protection class, F insulation grade, S1 duty. According to your requirement, we can customize other protection class and cooling mode.

ENNENG MOTOR FOCUS ON ENERGY SAVING PERMANENT MAGNETIC MOTOR R&D AND FABRICATION.

QUALITY IS OUR CULTURE.

Qingdao Enneng Motor Co., Ltd. (called "ENNENG") is a HI-TECH enterprise and its core competency is researching and fabrication of permanent magnetic motor(PM motor). The niche market is in China. Our PM motor has been successfully used in Chinese top leading enterprise in the field, such as Shengli Oil field, Chongqing Water Group, etc.

ENNENG is devoted to the research and development of various low speed permanent magnetic motor with high torque, special small permanent magnet servo motor and super-high speed permanent magnetic motor. With advanced production idea, strong technical strength, complete process equipment and advanced test and inspection equipment, our company is one of the leading permanent magnetic motor manufacturers. Our product can be used in port, ship, coal, water conservancy, mine, petro and power industry. We are praised and recognized by the customer for several research and development projects which wins high reputation and long-term cooperation with the customer.

ENNENG is continuously boost independent innovation, and cooperate with many colleges like China University of Mining and Technology, China Ocean University, Shandong University of Science and Technology, Xi 'an university of Science and Technology, China University of Petroleum, Beijing University of Aeronautics and Astronautics etc. We have a team with years of permanent magnetic motor experiences in the industry like mine, port, water conservancy, building materials, petro, chemical and space etc. And they have abundant professional technique and management who is familiar with motor design and production process supplying stable quality and professional service permanent magnetic motor system.

ENNENG headquarter is located in Qingdao, with factory in Dalian. 90% of the fabrication and test equipment are imported from Germany.

FOR ENERGY SAVING, USE ENNENG PM MOTOR.
