Prod Model:	LZCT723-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Class:	0.2s, 0.2, 0.5s, 0.5
Ratio:	30-600A/5A
Standards:	IEC60044-1; IEC 61869-2; ANSI C57.13; Ntc 2205; GB
Weight:	1.6kg
Working Temperature:	-35°c to +55°c
Types:	Bushing Type Current Transformer
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

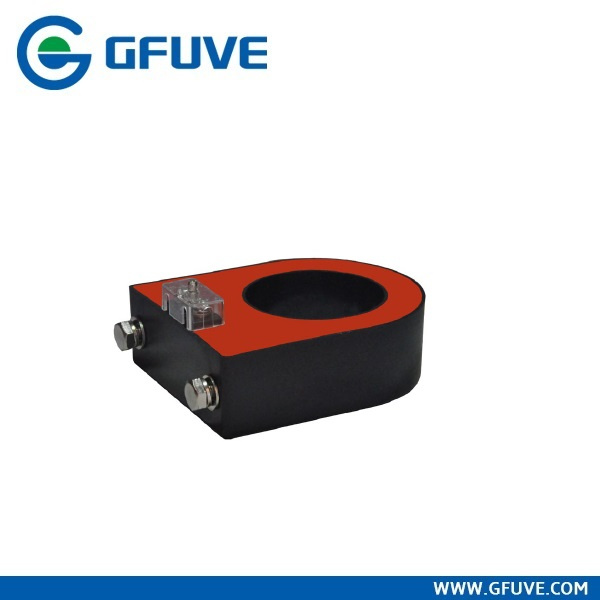

LZCT723-10 CHINA HIGH QUALITY HIGH VOLTAGE BUSHING TYPE CURRENT TRANSFORMER
LZCT series China high quality high voltage bushing type current transformer is suitable forcurrent measurement and microcomputer protection of electrical equipment in 10KV,35KV and 110KV AC power system.It is widely used in compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus...and cable distribution boxes.The transformer can be directly installed at the inlet andoutlet cables.The slice is imported silicon material. Thesemicircular ring core and secondary windings arevacuum poured by insulated resin.

P1, P2 is primary polarity terminal, S1, S2 is secondary polarity terminal.
P2, S2 is homonymous terminals (subtractive polarity).
PARAMETERS

Technical parameters
Standards	IEC60044-1; IEC 61869-2; ANSI C57.13; NTC 2205; GB1208-2006
Rated primary current	30-600A
Rated load	≤20VA
Rated frequency	50Hz or 60Hz
Rated secondary current	5A or 1A
Rated short-time thermal current	40kA, 1S
Rated continuous thermal current	120%I1n
Secondary winding power-frequency voltage	3kV, 1min
Instrument security factor	FS≤10
Mechanical parameters
Dimensions (W×D×H) (mm)	φ82xφ130x50
Weight (kg)	1.5
Operating conditions
Operating temperature	-35°C to +55°C
Daily average temp	<+40°C
Altitude	<3500 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

TECHNICAL DATA

Type	LZCT723-10	LZCT723-10
Purpose	Measuring current transformer	Protection current transformer
Ratio	Accuracy class and rated load(VA)	Accuracy class and rated load(VA)
I1/I2	0.2S	0.2	0.5	10P15	10P10	10P5
30/1			1.5			0.5
50/1			1.5			1.25
75/1			2		1	2
100/1			2.5		1.5	2.5
200/1			3	1.25	2.5
300/1		2.5	3.5	1.25	2.5
400/1	2.5	3.5	5	1.25	2.5
500/1	3.5	5	7.5	1.25	3
600/1	5	7.5	10	1.5	3
50/5			1
75/5			1.5			1.5
100/5			2.5			2.5
150/5			3.75			2.5
200/5		2.5	5		2.5	3.75
300/5	2.5	3.75	7.5		2.5	6.25
400/5	5	7.5	10		3.75	7.5
500/5	5	7.5	10		3.75	10
600/5	7.5	12.5	15		3.75	10
