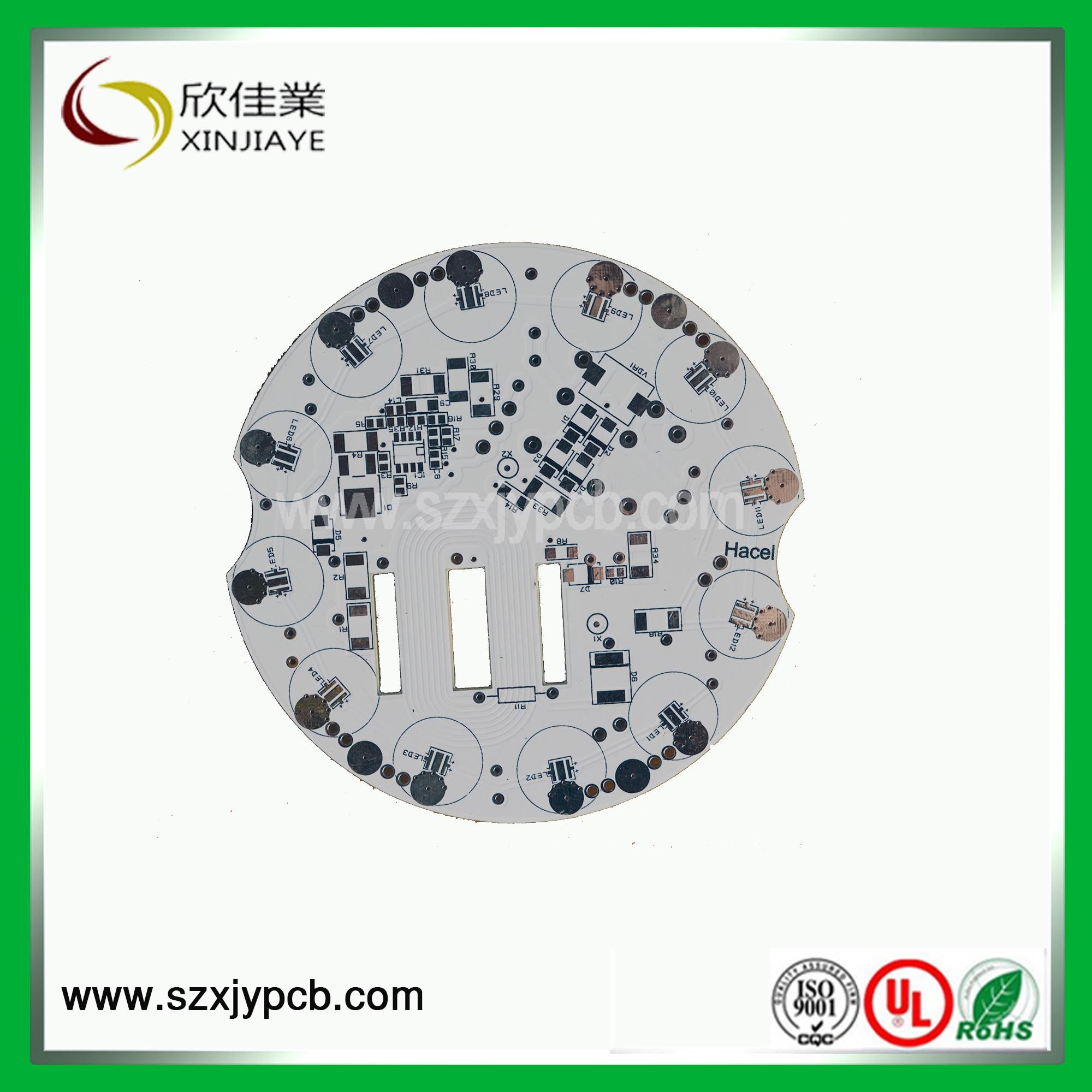

| Prod Model: |
XJY-PCB 231 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Thickness: |
1.6mm |
| Layer: |
1 to 28 Layers |
| Meterial Type: |
Fr-4, Cem-1, High Tg, Fr4 Halogen Free, Rogers |
| Copper Thickness: |
1.0oz |
| Min Line Width: |
0.075mm |
| Min Line Spacing: |
0.075mm |
| Min Hole Size: |
0.075 |
| Surface Finishing: |
Immersion Gold |
| Certificate: |
UL, RoHS, SGS, ISO 9001, Ect |
| Package: |
Vacuum |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Base Material: |
Fr4 |
Product Description
WELCOME TO XJY-------------
Shenzhen Xinjiaye Electronics Technology Co., Ltd is a professional pcb manufacturer has over 10 years experience. We are able to offer 1 to 24 Layer PCB, ranging from pcb produce, components purchase, pcb assembly, pcb copy service.Our products are widely used in communication apparatus, automobile electronics, auto parts, computers, medical devices, light systems, outdoor systems, network devices and consumer electronics class fields.
++++++++
++++++Quick Details
Place of Origin: |
Guangdong China (Mainland) |
Brand Name: | XJY PCB | Model Number: |
XJY-231 |
Base Material: |
FR4 |
Copper Thickness: |
0.5 OZ to 7.0 OZ |
Board Thickness: |
1.60mm |
Min. Hole Size: |
0.075mm(3 mil) |
Min. Line Width: |
0.075mm(3 mil) |
Min. Line Spacing: |
0.075mm(3 mil) |
Surface Finishing:Y |
Immersion Gold & Immersion Gold |
Packaging & Delivery
Packaging Detail: | vacuum package |
| Delivery Detail: | 10~20days |
Specifications
Double sided PCB board for tablets comes with 1.6mm board thickness and immersion gold surface finish, ONE piece order accepted.
Currently, the use of the tablets is common as the cellphones but the large screen function is more popular. Tablet producers need more stable and long lifespan printed circuit board to support the large screen.
Here is the smart choice for you, double sided PCB board for tablets comes with 1.6mm board thickness and immersion gold surface finish, ONE piece order accepted.
Specification
Layers: 2L
Material: FR4
Board Thickness: 1.60mm
Surface Finish: HASL lead free
Surface Finish : Immersion Gold
Min Line Width : 0.075mm(3 mil)
Min Line Space : 0.075mm(3 mil)
Special Requirements : Board Thickness 0.40mm+/-0.05mm
Features
* Low water absorption rate
* Hard to be deformed
* High mechanical strength
* Good electric performance wether under the moist or dry environment, Flame retardant grade could reach 94-V0
* High temperature resistant,high dielectric performance and mechanical processing performance.
PCB manufacture and PCB assembly
* PCB board file with parts list provided by customer
* PCB board made, circuit board parts purchased by us
* PCB board with parts assembled
* Electronic testing circuit board or PCB
* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-free
Testing procedures
* Visual Inspection
* Flying probe
* Impedance control
* Solder-ability detection
* Digital metallograghic microscope
*AOI (Automated Optical Inspection)
Technology capability
Items | Single/Double-sided Board/Multilayer Board/FPC(1-24Layer) |
| Base Materials | FR-4(High TG 150°-170°),FR1,Aluminum,CEM-3,BT,94vo |
| Finish copper thickness | Outer 6 OZ,Inner 4 OZ |
| Surface finish | ENIG, ImAg, ImSn, OSP, HASL,Plating gold |
| Finished Board Size | Max Double-sided Board | 640mm χ 1100mm |
| Max Multilayer Board | 640mm χ 1100mm |
| Finished Board Hole Size (PTH Hole) | Min Finished Board Hole Size | 0.15mm |
| Conductor Width and Spacing | Min Conductor Width | 0.01mm |
| Min Conductor Spacing | 0.01mm |
| Thickness of Plating and Coating Layer | PTH Wall Copper Thickness | >0.02mm |
| Tin Solder Thickness ( Hot Air Leveling ) | >0.02mm |
| Nickl/Gold Thickness | For customer special need |
| Nickl Plating Layer | >2um |
| Gold Plating Layer | >0.3um |
| Bare Board Test | Single Side Test | Max Test Point | 20480 |
| Max Board Test Size | 400mm χ 300mm |
| Double Side Test | Max Test Point | 40960(General Use) |
| |
| Max Board Test Size | 406mm χ 325mm |
| 320mm χ 400mm |
| Min Test pitch of SMT | 0.5mm |
| Test Voltage | 10-250V |
| Mechanical Process | Chamfer | 20°, 30°, 45°, 60° |
| Angle Tolerance | ± 5° |
| Deepness Tolerance | ± 0.20mm |
| V-Cut Angle | 20°, 30°, 45° |
| Board Thickness | 0.1-3.2mm |
| Residues Thickness | ± 0.025mm |
| Cell Paraposition Precision | ± 0.025mm |
| Tolerance of Out-shape Process | ± 0.1mm |
| Board Warp | Max Value | 0.7% |
| Optical Plotting | Max Plotting Area | 66mm χ 558.8mm |
| Precision | ± 0.01mm |
| Repetitive Precision | ± 0.005mm |
Application
XINJIAYE PCB offers OEM service for this type PCB board, which can be used for a wide range of Tablet sets.
Our Production Capability for PCB :
Layer |
1 to 28 layers |
Material type |
FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers |
Board thickness |
0.21mm to 7.0mm |
Copper thickness |
0.5 OZ to 7.0 OZ |
Copper thickness in hole |
>25.0 um (>1mil) |
Size |
Max. Board Size: 23 × 25 (580mm×900mm) |
Min. Drilled Hole Size: 3mil (0.075mm) |
Min. Line Width: 3mil (0.075mm) |
Min. Line Spacing: 3mil (0.075mm) |
Surface finishing |
HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating |
Tolerance
|
Shape tolerance: ±0.13 |
Hole tolerance: PTH: ±0.076 NPTH: ±0.05 |
Certificate |
UL, ISO 9001, ISO 14001 |
Special requirements |
Buried and blind vias+controlled impedance +BGA |
Profiling |
Punching, Routing, V-CUT, Beveling |
Provides OEM services to all sorts of printed circuit board assembly as well as electronic encased products. |
Have any need for PCB & PCBA ,just contact me!
Founded in April 2005, ShenZhen XinJiaYe Electronics Technology Co., Ltd. is specialized in the production of high density PCB and administrated by several PCB professionals. At the beginning of 2008, in order to provide customers with high quality PCB at better price, her owner rebuilt a new factory by investing additional 15 million in JIANG XI province XinFeng city, where there are enough environmental facilities and cheaper hydropower labor, to control the mass production cost at a competitive advantage.
XJYPCB is a PCB manufacturer specializing in quick turn prototype and batch quantity also offers one-stop service from layout to assembly. Producing Rigid PCB from 1layer to 10layer, FPCB from 1layer to 4layer, we are well-organized to grant our customers with best quality PCB' S at much lower cost. Our quick turn prototype production in Shenzhen allows us to provide short lead time and world class customer service at the same time, batch quantity production in Jiangxi helps us minimize labor cost and maintain high quality.
8, 000, 000 SMD points every day including BGA assembly and 6 DIP production lines (Lead free dual wave soldering machine) can satisfy the customer what will he want.
Our factories have ISO-9001: 2008 and UL Certification. With more than 500 employees, she is growing and her latest manufacturing outputs achieve more than 10, 000 square meters of double-sided PCB boards and 8, 000 square meters of multilayer PCB boards per month.
We are servicing our customers all over the world and gain their testimonials.
Our mission is to provide dependable full service PCB and best price for global customers. XJY is continuously improving our capabilities and processes to reduce operational costs and improve PCB quality.
In order to meet our clients needs, now we open A Line to assembly some kind of headphone and USB flash disk. Pictures and specifications show in our product list. Welcome to choose!
XJYPCB welcomes you to join us and experience our dedicated service to the printed circuit board industry. Whether you have a project to quote or are working on a new project and just want to talk with our knowledge staff, please feel free to call. We look forward to working with you throughout the entire life of your business.
