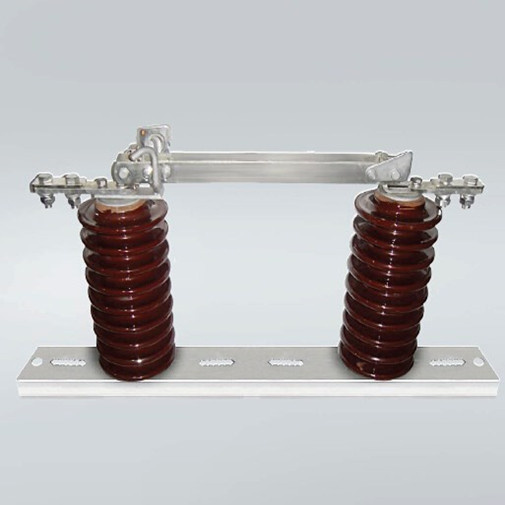

China High Quality Outdoor Substation Disconnector Switch (36G)

Name: China High Quality Outdoor Substation Disconnector Switch (36G)
Brand: all-electronics-online.com
SKU: 760289725
Availability: InStock
Rating: 4.9 (94 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GW9
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Test:	Type Test Report
Delivery Date:	15days~35days After Order Confirmed
Quality Check:	All Products Checked by Experienced QC
OEM Service:	Welcome
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Double Ground
Series:	Three
Run:	Vertical Rotation
Switching Mode:	Double-Throw Type
Certification:	CE
Common Model:	Gw
Brand:	Ug

Product Description

GW9 series outdoor H.V. isolating switch used for rated voltage 10-38Kv power system. The isolation section available in porcelain insulator or polymer insulator.

Type	Rate voltage KV	Rate current(A)	Momentary current(A)	BLK KV	Short Time Withstand Current 2S A
GW9-15G/400	36	400	40000	200	25000
GW9-15G/630	36	630	40000	200	25000
GW9-15G/630	36	900	40000	200	25000

GW9 series of outdoor high voltage isolating switch is applicable to three-phase ac 50 hz, rated voltage 15 KV / 24/ 36 KV outdoor high voltage electrical equipment. For high voltage line without load exchange, as well as to be maintenance of electrical equipment such as high voltage bus, circuit breaker with charged electrical isolation of high voltage line. Also can be divided into small capacitance and inductance current.

GW9-15 KV / 24/ 36 KV series of outdoor high voltage isolator is aiming at some problems of the original GW1 type and combined with the latest requirements of users to design, its design is simple and reasonable structure, copper and aluminum alloy fittings, stainless steel fasteners and hot dip galvanized base, has a good anti-fouling and corrosion resistant ability, reliable performance, light weight, easy installation, no need for periodic cleaning and maintenance, is the urban and rural areas of 15 to 36 KV distribution line segment, branch and maintenance period of breaking point of a clear and convenient outdoor high voltage electrical equipment
