| Type: |
High-voltage |
| Structure: |
Three-column Disconnector |
| Installation: |
Outdoor High-voltage |
| Operation: |
Manual |
| Grounding: |
Un Grounded |
| Series: |
Three |
| Run: |
Turn the Horizontal |
| Switching Mode: |
Double-Throw Type |
| Certification: |
CE |
| Brand: |
Safee |
Product Description
Product Description
MV Outdoor Off-Load Isolator Switch
(Alternating current disconnector)
TECHNICAL SPECIFICATION
Scope
Type IST off-load switchs are suitable for use in tropical zone, with a maximum ambient temperature of approximately 40 degrees Centigrade and an average temperature of approximately 28 degrees Centigrade with high humidity and heavy rainfall. The preferred operational altitude is up to 1800 m above sea level.
Electrical System
Type IST off-load isolator switch are designed for continuous operation on a 3-phase 3-wire 11, 15,22,24,27and 33,36kV,50/60Hz distribution system with the star-point of the source-point transformer earthed through an Arc Suppression Coil or Earthing Resistor.
Standards
Type IST off-load isolator switch are complied with relevant requirements of the following standards together with all current amendments;
IEC62271-102:2003 :High-voltage alternating-current disconnectors and earthing switches
IEC60129:1984 :Alternating current disconnectors and earth switches
IEC 60265-1:1998 :High voltage switches - Part 1:Switches for rated
voltage above 1kV and less than 52kV
IEC 60694: 1996 :Common specifications for high-voltage switchgear and
controlgear standards
IEC 60815:1986 :Guide for the selection of insulators in respect of
polluted conditions
BS EN ISO 1461 :Hot dip galvanized coatings on fabricated iron and
steel articles- Specifications and test methods
4.0 Construction
4.1 General
4.1.1 Type IST off-load isolator switchs are the vertical/Horizontal mounting
Type for mounting on a single or H-pole structure for overhead
lines or feeders from the energized sections.
4.1.2 Type IST off-load isolator switchs are compatible and ready for
installation on tubular steel poles and spun concrete poles.
4.1.3 The design are of an air insulated "rocking insulator"
type with two fixed insulator posts and one moving
insulator post per phase.
4.1.4 All steel and iron parts shall be galvanized to protect from corrosion as
per BS EN ISO 1461
4.1.5 Type IST off-load isolator switchs are equipped with a single operating mechanism and suitable coupling bars that shall operate all phases simultaneously and that independent operations of each
pole,irrespective of the state of the other poles,is not permitted
Gw4 Serial Outdoor A/C High Voltage Isolator factory
Specifications
1.Professional Manufacture of China
2.Multi protection functions
3.CE,FCC,LVD&ROHS reports
Product Description

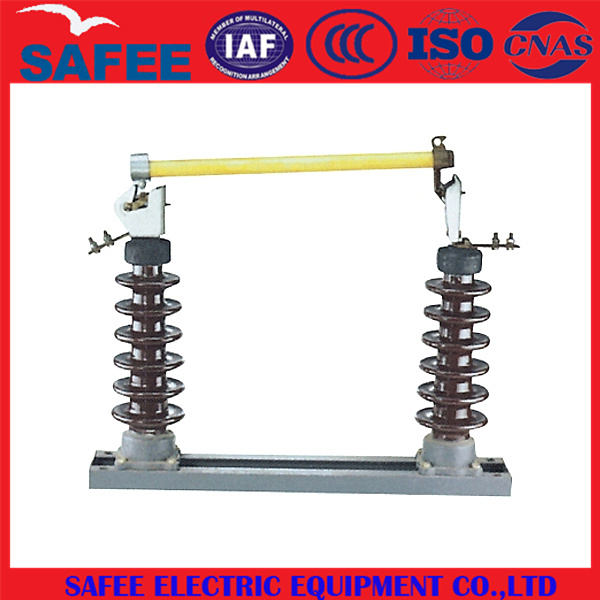

Model No: GW4-12/17.5/24
Type: GW4-12/17.5/24 Outdoor High Voltage Disconnector/ Isolator Switch
Disconnector switch is high voltage switch equipment of single phase AC50Hz. The product is suitable for power system with rated voltage 12kV to break power supply under circumstances of with voltage and nomload. The isolator is adopts isolated hook rod to operate.
No | Item | Parameter |
| 1 | Rated Voltage kV | 10 | 15 | 20 |
| 2 | Rated Current A | 200, 400, 630, 1250, 1600, 2000 |
| 3 | Rated Short Time Current Bearing and Time kA/s | 25~50/4 |
| 5 | Rated Peak value bearing current kA | 63~125 |
| 6 | 1min power frequency voltage bearing (effective value) kV | Ground | 28 | 40 | 50 |
| Fracture | 32 | 47 | 60 |
| 7 | Lightning Impact voltage bearing
(peak value)kV | Ground | 60 | 105 | 125 |
| Fracture | 70 | 120 | 145 |
| 8 | Max Man Operative Moment N. m | 200 |
